读取 DataFusion 查询的逐算子执行指标-未完纪

来源：Apache DataFusion Python 官方指南《Execution Metrics》，维护方为 Apache Software Foundation。本文于 2026 年 10 月 5 日依全文译编；原页没有个人作者署名，文档路径为滚动更新版本。

查询变慢时，仅看最后返回了多少行，通常还不足以判断问题。DataFusion 会把逻辑计划编译成物理算子树，例如 FilterExec、ProjectionExec 或 HashAggregateExec。这些算子可以在执行期间记录统计数据，包括输出行数、计算时间以及落盘情况。把这些执行指标与算子树放在一起阅读，就能进一步判断过滤、聚合、扫描或分区分布是否值得调查。

本文从一个完全在内存中构建的销售表开始，保留原文的完整查询示例，再说明指标何时可用、怎样读取分区信息，以及为什么不能把汇总计算时间直接当成查询的端到端耗时。这里没有实测结果；文中的“应如何理解”是 API 语义说明，而不是本次运行报告。

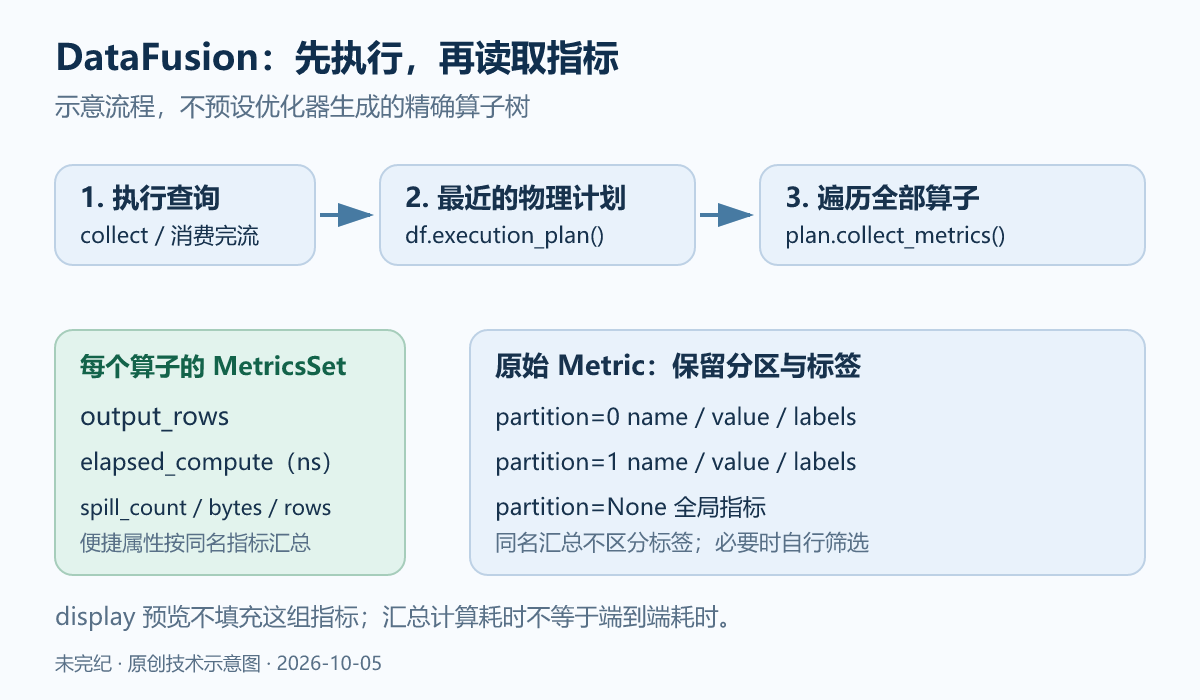

指标属于实际执行使用的物理计划。未完纪依据 Apache DataFusion 文档绘制；图中结构仅表示读取流程，不声称是某次运行生成的精确计划。

每个算子的指标，按分区采集

DataFusion 可能把同一个算子分配到多个分区并行执行。指标首先按分区记录，MetricsSet 的便捷属性再按指标名称汇总所有分区，给出该算子的整体统计。因此，一个 MetricsSet 对应的是一个算子的指标集合，不是整条查询的唯一计时器。

属性	含义	阅读时的注意点
`output_rows`	算子输出的行数，各分区求和	它是该算子的输出，不是源表输入行数，也不必等于最终结果行数
`elapsed_compute`	算子计算循环中的耗时，单位纳秒，排除 I/O 等待；各分区求和	并行分区和多个算子的时间不能简单视为查询的墙钟耗时
`spill_count`	因内存压力触发的落盘事件次数，各分区求和	这是无量纲事件数，不表示字节数或行数
`spilled_bytes`	落盘期间写出的总字节数，各分区求和	用来观察落盘数据量
`spilled_rows`	落盘期间写出的总行数，各分区求和	与事件数、字节数分别观察，三者不可互换

原文把 elapsed_compute 称为计算循环内部的“wall-clock CPU time”。这里保留其可操作的解释：它按纳秒记录算子计算循环的耗时、排除 I/O 等待，并在便捷属性中跨分区求和。不要因此把它等同于进程 CPU 记账、从提交到取完结果的总时间，或简单相加后的整个流水线耗时。

先执行并消费结果，再读取指标

某些算子，例如 DataSourceExec，会在建立物理计划时就创建 MetricsSet。因此，执行前调用 metrics() 可能已能拿到一个集合。但“存在集合”不代表“已经处理数据”：执行前的数值通常是 0 或 None，不能拿来说明查询做了多少工作。

有意义的数值来自终结执行操作：

collect()：执行并收集结果。
collect_partitioned()：执行并按分区收集结果。
execute_stream()：必须把返回的流完整消费后，再读取最终指标。
execute_stream_partitioned()：必须消费完所有分区的流，而不只是读完其中一个。

Notebook 中的 display(df) 或自动显示的 repr 不会填充这里要读取的指标。显示表格时，DataFusion 会做一次受限的内部执行来取得预览行，但不缓存那次物理计划，所以之后的 collect_metrics() 不代表这次预览操作。要取得这些指标，仍需显式调用上述终结操作。

同一个 DataFrame 每调用一次 collect()，或另一个终结操作，都会创建新的物理计划。df.execution_plan() 对应最近一次执行。如果要对比两次执行，应在每次执行完成后及时记录对应计划的指标，并明确记录输入、配置及采集时点，避免把不同执行的数据混在一起。

一个完整示例

下面保留源文的 API 调用和数据，只将注释译为中文。它创建三行内存数据，从中筛选第一列大于 1 的记录，然后遍历每个算子的指标。没有连接外部数据库、下载数据或写入生产目标。

from datafusion import SessionContext

ctx = SessionContext()
ctx.sql("CREATE TABLE sales AS VALUES (1, 100), (2, 200), (3, 50)")

df = ctx.sql("SELECT * FROM sales WHERE column1 > 1")

# 执行查询，填充指标
results = df.collect()

# 获取带有本次执行指标的物理计划
plan = df.execution_plan()

# 遍历全部算子并打印指标
for operator_name, ms in plan.collect_metrics():
    if ms.output_rows is not None:
        print(f"{operator_name}")
        print(f"  output_rows    = {ms.output_rows}")
        print(f"  elapsed_compute = {ms.elapsed_compute} ns")

# 查看原始的逐分区指标
for operator_name, ms in plan.collect_metrics():
    for metric in ms.metrics():
        print(
            f"  partition={metric.partition}  "
            f"{metric.name}={metric.value}  "
            f"labels={metric.labels()}"
        )

从 SQL 条件可以推导，逻辑上满足条件的是 (2, 200) 和 (3, 50) 两行。这一推导不意味着所有物理算子的 output_rows 都等于 2；每个算子有自己的输入输出语义，优化器还可能改变计划结构。本文没有构造或展示“实测”算子耗时、落盘次数和物理计划输出。

第一段遍历仅打印存在 output_rows 的节点，沿用原文的过滤条件。这适合快速浏览，但不表示被跳过的算子完全没有其他有用指标。第二段遍历输出原始指标，原文没有在每个节点前再次打印名称；如果日志需要独立保存，可以加上下面这一行，避免不同算子的同名指标混淆。

# 编辑补充：置于第二个外层 for 循环内部、内层循环之前
print(f"operator={operator_name}")

物理计划树与算子名称

execution_plan() 返回物理计划树的根 ExecutionPlan 节点。树形结构反映算子流水线：根节点通常是投影或合并节点，子节点可能是过滤、聚合、扫描等。

plan.collect_metrics() 遍历整棵树，返回 (operator_name, MetricsSet) 对。这里的 operator_name 是节点的显示名称，例如 FilterExec: column1@0 > 1，与 plan.display() 显示的节点字符串一致。它可能包含表达式，不只是一个短的算子类型名称。

如果只关心一个节点，调用该节点的 metrics()，而不是误以为它会自动遍历所有子节点。定位耗时或输出行数异常时，可先用整树遍历确定位置，再结合具体节点和分区深入检查。

用原始指标看分区差异

MetricsSet.output_rows 等属性适合看整体；要发现数据倾斜，需要保留分区身份。对一个已取得的 metrics_set，原文给出的读取方式是：

for metric in metrics_set.metrics():
    print(f"  partition={metric.partition}  {metric.name}={metric.value}")

partition 从 0 开始编号，表示处理该指标的并行分区。如果是与特定分区无关的全局指标，其值为 None。不能把 None 强行归入第 0 分区，也不能仅因存在多个分区就认为负载已经均衡。

检查倾斜时，应比较同一算子、同一指标、相同语义标签下的分区。某个分区处理远多于其他分区的行数，是值得继续调查的线索；仅凭一个汇总数值看不到这种差异。这里只说明观察方法，未对示例宣称存在或不存在倾斜。

标签可能改变指标的含义

单个 Metric 可以携带键值标签，提供算子特有的额外上下文。大多数指标的标签字典为空；某些算子会用它区分指标变体。例如，原文举出的 HashAggregateExec 可能分别记录中间输出和最终输出的 output_rows：

for metric in metrics_set.metrics():
    print(metric.name, metric.labels())
# 原文给出的标签示意，不是本文执行输出：
# output_rows  {'output_type': 'final'}
# output_rows  {'output_type': 'intermediate'}

output_rows 便捷属性以及 sum_by_name() 按名称求和时，不会按标签区分；同名指标都会加在一起。因此，若要只统计最终输出，就必须遍历原始 Metric 并按实际标签筛选。不要假设所有算子、所有版本都会提供示例中的 output_type 标签。

未列入便捷属性的其他指标，也可以通过 sum_by_name() 取得，或者遍历 metrics() 返回的原始对象。具体指标是否存在、单位为何、是否带标签，应以运行版本的 API 和对应算子为准。

版本与代码静态审查

本次核对的是 2026 年 10 月 5 日可读取的官方滚动文档，没有据此给任意旧版 Python 包承诺兼容。执行前应核对本地 datafusion 是否提供 ExecutionPlan.collect_metrics()、MetricsSet、Metric 等接口。物理计划 API 参考与本文原页中的 API 链接给出相应定义。

静态审查未发现原文示例中存在硬编码秘密或拼接外部输入的 SQL 注入入口：两条 SQL 都是固定字符串，数据是三个常量元组。将这个示例扩展成服务时，不能把未经验证的输入直接拼入 SQL；输出计划及表达式的日志也可能泄露业务表名、列名或查询常量，应按实际数据环境处理。

collect() 会把结果收集到内存，三行示例没有规模问题，但不能未经评估地照搬到大结果集。改用流式接口时，必须完整消费才能得到最终统计。本文没有安装或执行 DataFusion，没有生成性能数字，也没有验证某个生产查询；上述结论只覆盖已展示代码的静态检查，没有发现问题不等于不存在漏洞。

原文与项目：Execution Metrics、Apache DataFusion Python。原项目按 Apache License 2.0 提供，许可副本随交付文件保留；源文译编、中文注释及补充说明于 2026 年 10 月 5 日修改。Apache、DataFusion 及相关名称和标识的权利属于 Apache Software Foundation；译编不表示基金会背书。原有版权、归属与无担保声明继续保留。
