为 VictoriaMetrics 搭建跨区域双写与查询切换

监测系统需要在一个区域不可用时继续查询指标、显示仪表盘并触发告警。VictoriaMetrics 的这份跨区域专用监测指南把业务工作负载与监测存储分开:每个业务区域运行本地 vmagent,向两个专用监测区域发送同一份指标。这样可以形成两份逻辑上的完整副本,并对外提供统一的查询入口。

代价也很直接:相同数据需要发送和保存两次,存储、计算和跨区域传输成本都会增加。本文按原文完整说明配置思路;文中的主机名与路径均为示例,安全边界和实际部署前提单独标出,没有执行服务或故障演练。

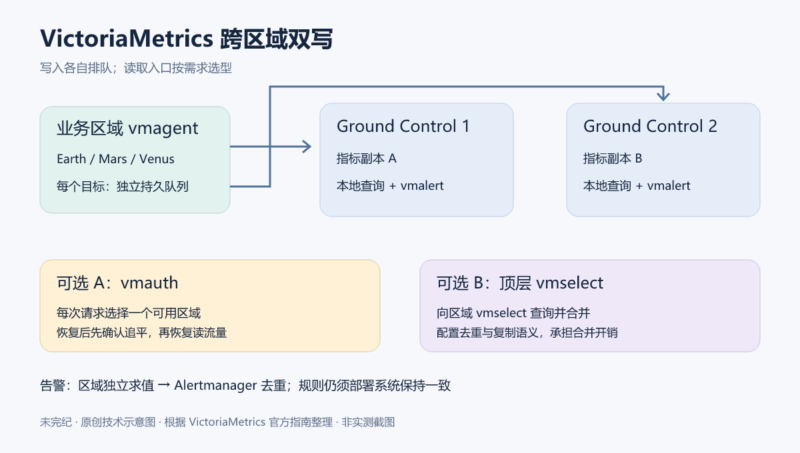

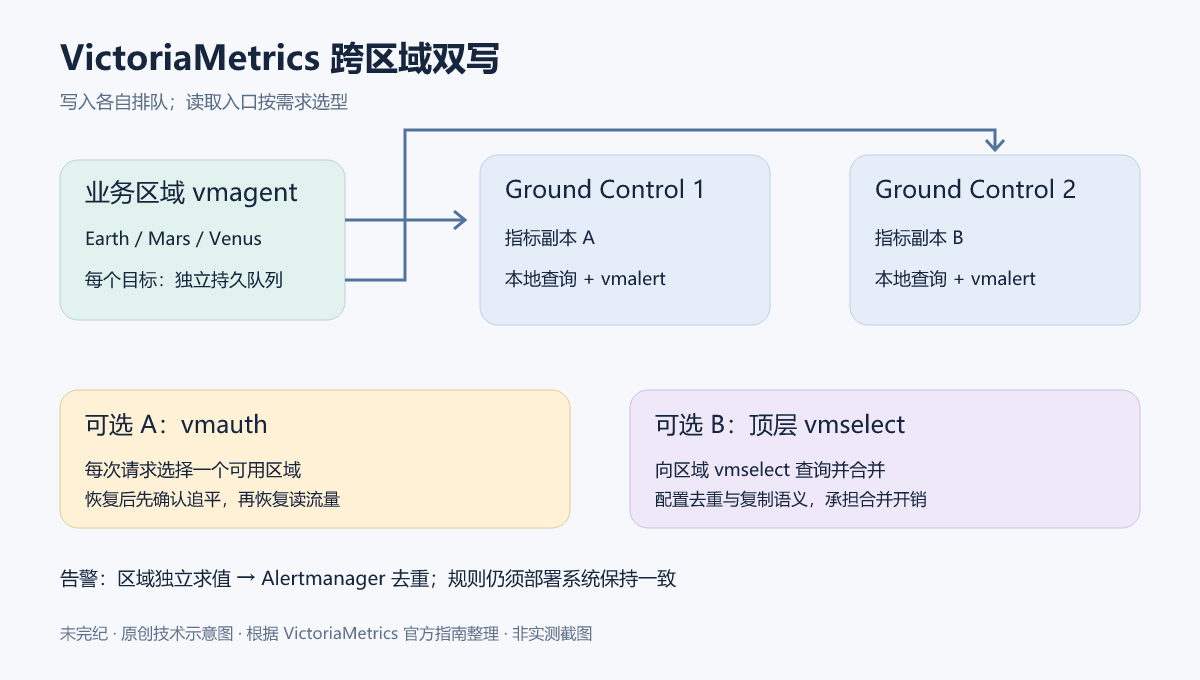

业务区域的vmagent双写两个监测区域;查询可选择vmauth单区路由或顶层vmselect合并;告警经Alertmanager去重。
原创示意图:两个监测区域各保存一份指标;下方展示可选的读取方式,不表示必须同时部署两种全局入口。

把业务区域与监测区域分开

原文使用 Earth、Mars、Venus 表示三个业务区域;它们可以对应应用或基础设施所在的不同机房或云区域。另有 Ground Control 1 和 Ground Control 2 两个专用监测区域,各自运行一套 VictoriaMetrics。业务区域的 vmagent 把相同样本发往两个 Ground Control。

Ground Control 可以使用 VictoriaMetrics 单节点,也可以使用集群模式。这里的“两个副本”指跨监测区域的两套数据,不等于已经定义了每个区域内部的节点数量、磁盘冗余或复制策略。选择架构时,仍需分别考虑区域内和区域间的故障。

向两个监测区域写入

在每个业务区域运行一个或多个 vmagent,为每个目的地重复指定 -remoteWrite.url。写入单节点实例的原文配置如下:

/path/to/vmagent-prod \
  -remoteWrite.url=https://ground-control-1:8428/api/v1/write \
  -remoteWrite.url=https://ground-control-2:8428/api/v1/write

集群模式应指向各区域的 vminsert。下面使用租户 accountID=0,路径中的租户号需要与实际部署一致:

/path/to/vmagent-prod \
  -remoteWrite.url=https://ground-control-1-vminsert:8480/insert/0/prometheus/api/v1/write \
  -remoteWrite.url=https://ground-control-2-vminsert:8480/insert/0/prometheus/api/v1/write

vmagent 为每个 -remoteWrite.url 维护独立的持久队列。某个区域暂时不可用时,另一目的地仍可继续接收数据;发送失败的样本保存在该目标的文件队列中,待区域恢复后重新投递。这能帮助两边重新达到一致,但队列受可用磁盘空间约束。

编者补充:“持久队列”需要真正可持久化的存储。容器重建时丢失的临时目录不能提供相同保障;队列容量、磁盘余量、发送错误和积压量都应监测。队列超过容量、采集端整体故障或根本未采到的样本,不会因为配置两个写入 URL 自动恢复。上面两段命令只展示目的地,不包含指标抓取配置、TLS 材料或身份验证。可继续参照官方 vmagent 文档和项目提供的告警规则与仪表盘来配置采集和队列监测。

选择读取方式:一次查询读一个区域,还是合并多个区域

两种方案都可以给仪表盘提供稳定入口,但行为不同。负载均衡器将每次请求转发给某个可用区域,适合控制复杂度和查询开销;顶层 vmselect 向两个区域发出查询并合并结果,适合需要跨区域合并数据的情况。原文还指向 VictoriaMetrics 拓扑指南,帮助结合运维复杂度选择方案。

方案一:用 vmauth 选择一个可用区域

把 vmauth 放在两套 Ground Control 前面,仪表盘只连接它提供的一个 URL。单节点部署的示例:

unauthorized_user:
  url_prefix:
    - "http://ground-control-1:8428"
    - "http://ground-control-2:8428"
  load_balancing_policy: first_available

对于 VictoriaMetrics 集群,后端 URL 应指向各区域的 vmselect,而不是写入节点:

unauthorized_user:
  url_prefix:
    - "http://ground-control-1-vmselect:8481"
    - "http://ground-control-2-vmselect:8481"
  load_balancing_policy: first_available

first_available 按配置的可用后端策略路由,优先区域失效时可切到另一区域。每次只向一个区域查询,避免了跨区域合并开销。原文把它描述为相较“两边读取再合并”通常更快,并给出延迟大约减半的说法;这不是普适保证,更不是本文测试结果,实际耗时取决于网络、查询、数据量和后端负载。

更重要的限制是:vmauth 不知道恢复的区域是否已完成 vmagent 队列回放。刚恢复就把请求送回去,近期数据可能仍不完整。健康检查证明服务可达,并不能证明它已经追平。原文建议等待恢复区域补齐积压后,再恢复该区域的读取流量。

原例是无认证示例。unauthorized_user 允许未经身份验证的请求,且后端使用 HTTP。不能把这段 YAML 直接当作公开网关配置;对外提供服务时,需要配置适当的认证、TLS 和网络访问控制。官方 vmauth 文档说明了相应认证方式。

以配置文件启动 vmauth:

/path/to/vmauth-prod -auth.config=/path/to/auth.yaml

原文给出两种查询检查命令。它们只是待在目标环境验证的例子,本文未执行验证:

# single node
curl http://vmauth-node:8427/api/v1/query?query=up

# cluster
curl http://vmauth-node:8427/select/0/prometheus/api/v1/query?query=up

使用 shell 时可给完整 URL 加引号,避免特殊字符被 shell 解释;实际访问还应通过已经设置好认证和 TLS 的入口。Kubernetes 用户可进一步参考官方 VMDistributed 资源示例。这个方案每次读取一个区域,不会自动拿另一区域的数据来填补查询结果中的缺口。

方案二:用顶层 vmselect 合并结果

该方案要求 Ground Control 使用 VictoriaMetrics 集群,或启用了多租户支持的单节点实例。单节点需要通过 -vmselectAddr=:8401 启用相应的 vmselect RPC 服务。

集群方式下,每个区域有本地 vmselect。顶层 vmselect 连接这些区域查询节点,而不是直接访问区域内的 vmstorage。当存储节点不适合被上层直接访问时,这种分层很有用,例如 Kubernetes 中的存储服务默认不提供 HTTP 查询端点。

区域 vmselect 使用 -clusternativeListenAddr 接收上层请求;顶层使用 -storageNode 指向区域节点,并配置去重间隔。原例完整展示如下:

# Ground Control 1 cluster vmselect
/path/to/vmselect-prod \
  -storageNode=ground-control-1-vmstorage-1:8401,ground-control-1-vmstorage-2:8401 \
  -clusternativeListenAddr=:8401

# Ground Control 2 cluster vmselect
/path/to/vmselect-prod \
  -storageNode=ground-control-2-vmstorage-1:8401,ground-control-2-vmstorage-2:8401 \
  -clusternativeListenAddr=:8401

# Top-level vmselect
/path/to/vmselect-prod \
  -storageNode=ground-control-1-vmselect:8401,ground-control-2-vmselect:8401 \
  -dedup.minScrapeInterval=1ms \
  -replicationFactor=2

顶层对两个区域提供统一查询入口。一个区域不可用时,它仍能查询健康区域;恢复期间,也可以合并两边的数据。跨两个查询层的代价是额外的请求与合并开销,因此通常比直接查询某个区域或通过负载均衡择一读取更慢。

编者补充:原例的 -dedup.minScrapeInterval=1ms 与 -replicationFactor=2 必须结合“两个区域保存相同数据”的前提理解,不能脱离实际拓扑照抄。需要核对抓取间隔、标签一致性、每个区域的完整性、目标版本的去重和复制语义,并限制原生 RPC 端口的可达范围。它们不会自动解决缺失采集数据,也不替代区域内部的存储可靠性设计。

在每个区域独立求值,再对告警去重

在每个 Ground Control 区域部署 vmalert,让它查询本区域的 VictoriaMetrics。因为两边保存同样的指标,可以部署相同的告警规则和记录规则,使一个区域失效时另一个区域继续求值。把告警发送给 Alertmanager 集群,由它处理重复告警。

单节点模式的例子:

/path/to/vmalert \
  -rule=/path/to/rules.yaml \
  -datasource.url=http://ground-control-1:8428 \
  -notifier.url=http://alertmanager-1:9093 \
  -notifier.url=http://alertmanager-2:9093

集群模式中,-datasource.url 指向本地 vmselect 的租户查询端点:

/path/to/vmalert \
  -rule=/path/to/rules.yaml \
  -datasource.url=http://ground-control-1-vmselect:8481/select/0/prometheus \
  -notifier.url=http://alertmanager-1:9093,http://alertmanager-2:9093

若要在重启后保留告警状态和记录规则结果,还需配置 -remoteWrite.url 和 -remoteRead.url。集群示例如下:

/path/to/vmalert \
  -rule=/path/to/rules.yaml \
  -datasource.url=http://ground-control-1-vmselect:8481/select/0/prometheus \
  -remoteRead.url=http://ground-control-1-vmselect:8481/select/0/prometheus \
  -remoteWrite.url=http://ground-control-1-vminsert:8480/insert/0/prometheus \
  -notifier.url=http://alertmanager-1:9093,http://alertmanager-2:9093

原文推荐参考 VictoriaMetrics 提供的告警规则。需要注意,“各区域使用相同数据”不等于规则文件会自动同步。部署工具仍要保证 rules.yaml 和求值相关配置的版本一致。Alertmanager 的网络可达性、集群状态及用于去重的标签也必须一致核查;把告警简单发送到两个地址,不是全部高可用工作。

监测系统也要被监测

每个 Ground Control 区域可以使用独立的监测路径抓取自身 VictoriaMetrics 各组件的指标。还可以把这些自监测指标复制给相邻区域:即使整个 Ground Control 区域掉线,仍能从另一边查看它故障前的遥测,帮助定位问题和恢复服务。

单节点与集群的自身监测项不完全相同,应分别参考官方部署监测文档。这里保留原文的核心原则:不要让监测系统自身的故障同时切断唯一的诊断证据。

在存储区域前再增加一层接收代理

还可以在每个 Ground Control 部署额外的 vmagent,作为区域内的指标接收代理。这样写入入口离存储更近,存储暂时不可用时还能多一层磁盘缓冲。它也适合在本地做重新标记,并区分跨区域流量和区域内写入。

面向 Ground Control 1 的单节点写入端点:

# vmagent next to Ground Control 1
/path/to/vmagent-prod \
  -remoteWrite.url=http://ground-control-1:8428/api/v1/write

集群模式则使用该区域 vminsert 的写入路径:

# vmagent next to Ground Control 1 for cluster mode
/path/to/vmagent-prod \
  -remoteWrite.url=http://ground-control-1-vminsert:8480/insert/0/prometheus/api/v1/write

这些命令展示的是代理的输出端;业务区域的发送端还需要改为指向代理实际配置的接收入口,并为代理设置接收、认证、队列和监测。增加缓冲层会增加需要管理的状态,不能只计算正常路径。

静态审查与部署边界

本稿完整核对了源文的 12 段配置和命令,没有发现实际写入的私密凭证,但这不表示它们构成完整安全配置。所有跨区域地址、证书、鉴权、持久磁盘容量及恢复读流量的条件都需要按环境确定;未认证的 vmauth、HTTP 后端和原生查询 RPC 端口尤其不能直接暴露给不可信网络。

跨区域双写还涉及网络费用和数据驻留,应在选区前明确要求。本文未进行开通资源、写入指标、切断区域、发送告警或测量性能;两份数据、可达的端点和同步的规则是三项不同的条件,应分别验证。

来源、作者与许可

原文为 VictoriaMetrics Multi-Regional Setup: Dedicated Monitoring。原作者/维护者:VictoriaMetrics 文档贡献者。核对日期:2026-10-05。技术审读与示意图:未完纪编辑整理。原文未标个人作者时,不补造个人署名。

本稿保留 VictoriaMetrics 归属及其项目 Apache License 2.0 许可正文。修改内容为中文翻译、段落整理与明确标记的静态审查补充;不暗示上游对部署或配图背书。
