Pyxis 与 Slurm:加载容器插件、执行任务并核验宿主挂载

Pyxis 是 Slurm Workload Manager 的 SPANK 插件。它把容器选项直接加到 srun 等作业入口,使无管理员权限的集群用户也能运行容器化任务。底层容器工具是 Enroot,Pyxis 负责把它接到 Slurm 作业流程中。pyxis 原指古代的小盒子或容器。

本文依据 NVIDIA 官方项目 v0.24.0 标签的完整 README 翻译整理,核查日期 2026-10-05。原页未列出可确认的个人作者,归属 NVIDIA Pyxis 项目及贡献者。本稿只做静态审查,未安装插件、重启 Slurm、提交作业或运行测试。

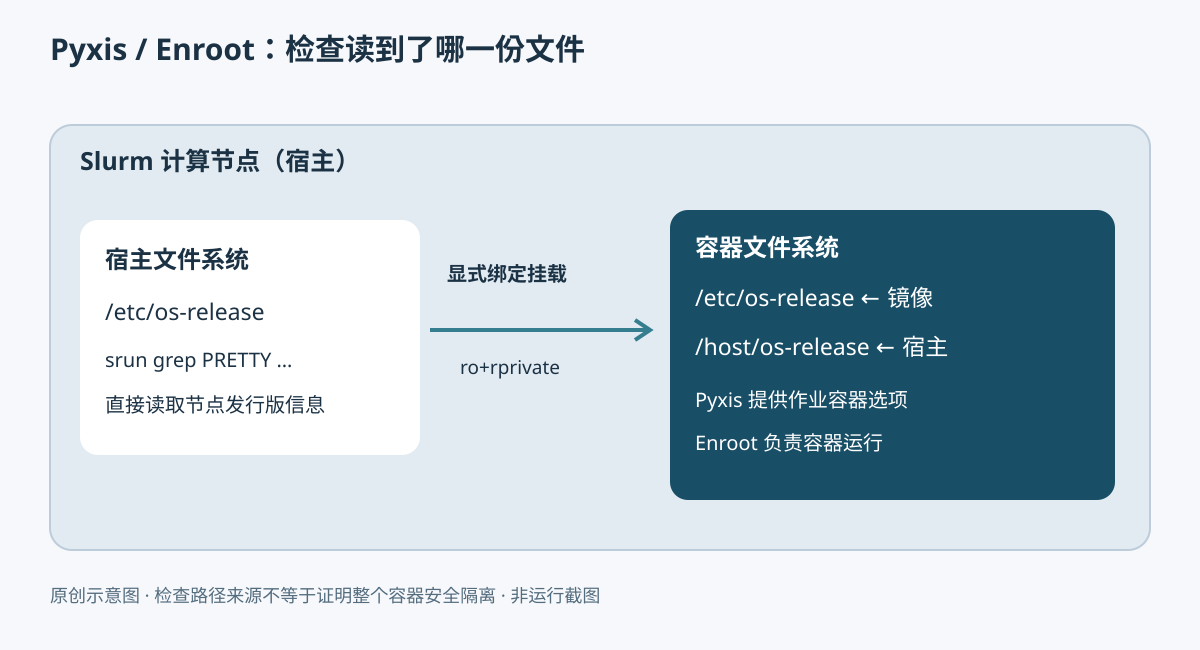

Slurm计算节点上Pyxis通过Enroot创建容器,容器的/etc/os-release来自镜像,只读挂载后的/host/os-release来自宿主。
原创技术示意图:检查路径来源,区分镜像文件与显式挂入的宿主文件;未完纪编辑整理,非运行截图。

能力与适用边界

原文列出的优势包括:在无特权容器中执行用户任务;命令行接口简单;Docker 镜像层下载缓存及跨用户共享;在 Slurm 支持的前提下,通过 PMI2 或 PMIx 运行多节点 MPI;允许用户在容器内安装软件包;配合共享文件系统;无需在整个集群统一管理 subordinate user/group ID。

无特权描述容器运行方式,不是对宿主文件、凭证、网络和集群配置的完整隔离保证。宿主挂载、导出的环境变量和 Enroot hooks 都会改变容器可见的内容。本文用系统自带的 os-release 与 grep 检查基础行为,不扩展成 GPU 训练教程。

安装:先匹配 Slurm release

v0.24.0 README 要求预先安装 Enroot,文中版本写作 3.1.0;不能从这个历史说明推断任意新版本都兼容。尤其从 Slurm 21.08 开始,Pyxis 必须针对集群实际部署的 Slurm release 编译。如果使用另一 release 的 spank.h,Slurm 会拒绝加载并报 Incompatible plugin version。

安装由管理员在维护流程下完成,须核对源码标签、Slurm 开发头文件、架构、Enroot 配置及插件加载目录。下面保留三种原文安装方式,按环境选择一种。它们会写系统目录并重启 slurmd,不是普通用户可以随意在生产节点执行的无副作用检查。

make install

sudo make install
sudo ln -s /usr/local/share/pyxis/pyxis.conf /etc/slurm/plugstack.conf.d/pyxis.conf
sudo systemctl restart slurmd

命令在已准备好的 Pyxis 源码和编译环境中执行。sudo make install 会以管理员权限执行项目安装规则,应先验证源码来源。符号链接要求父目录及加载配置与集群实际布局一致;目标已存在时先检查,不要自动删除旧配置或强行覆盖。

Debian 包

make orig
make deb
sudo dpkg -i ../nvslurm-plugin-pyxis_*_amd64.deb
sudo ln -s /usr/share/pyxis/pyxis.conf /etc/slurm/plugstack.conf.d/pyxis.conf
sudo systemctl restart slurmd

原文包名面向 amd64。通配符可能匹配多个历史构建,正式安装前应核对生成文件,选择经过校验的唯一版本;通配符不会自动判断哪个版本与集群兼容。

RPM 包

make rpm
sudo rpm -i rpm/RPMS/x86_64/nvslurm-plugin-pyxis-*.x86_64.rpm
sudo ln -s /usr/share/pyxis/pyxis.conf /etc/slurm/plugstack.conf.d/pyxis.conf
sudo systemctl restart slurmd

RPM 示例面向 x86_64,具有相同的源码信任、包文件多匹配与节点重启边界。安装后用 srun --help 核对 Pyxis 选项是否出现;如果没有,应检查加载配置和二进制兼容性,不能仅凭包管理器成功判断插件已接通。

容器参数完整说明

作为 SPANK 插件,Pyxis 直接扩充 srun 的帮助信息。下表保留 v0.24.0 README 列出的全部选项:

参数 含义
--container-image=[USER@][REGISTRY#]IMAGE[:TAG]|PATH 容器文件系统可以是 Enroot URI 形式的 Docker 镜像,或远端计算节点文件系统中的 SquashFS 路径。提交端的任意本地文件不会因写入路径就自动上传。
--container-mounts=SRC:DST[:FLAGS][,SRC:DST...] 宿主绑定挂载。多个挂载用逗号,多个标志用加号分隔,例如 ro+rprivate。
--container-workdir=PATH 容器内工作目录。
--container-name=NAME 保存和加载宿主上的命名容器。未命名容器在 Slurm 任务结束后删除;命名容器保留。同名容器已经存在时,复用已有容器并跳过镜像导入。
--container-save=PATH 把容器状态保存为远端宿主文件系统中的 SquashFS 文件,需要检查目标路径、容量与文件内是否含秘密。
--container-mount-home / --no-container-mount-home 请求绑定或不绑定用户主目录。系统级 Enroot 设置可能已经挂载主目录,不能只依据单个命令行开关推断最终挂载清单。
--container-remap-root / --no-container-remap-root 请求或禁止在容器内映射为 root。显示成容器 root 本身不会赋予宿主系统额外权限。
--container-entrypoint / --no-container-entrypoint 执行或不执行镜像 entrypoint;entrypoint 是可执行代码,必须审查来源。
--container-entrypoint-log 打印 entrypoint 输出,注意日志可能包含配置与秘密。
--container-writable / --container-readonly 请求容器文件系统可写或只读。根文件系统只读不能代替每个宿主挂载的单独权限控制。
--container-env=NAME[,NAME...] 指定从宿主保留并覆盖镜像值的环境变量,在 entrypoint 之前设置。默认情况下,导出的宿主变量在 entrypoint 执行后进入容器,但镜像已有同名值优先;本参数列出的变量以宿主值优先并提前设置。
--container-unshare=NS[,NS...] 请求新建命名空间,原文列出 net、ipc、uts。需检查网络、MPI及站点配置依赖。

命名容器复用、环境变量继承、主目录和其他绑定挂载,都可能让两次相同命令获得不同状态。无特权运行不会自动清空凭据;只向任务提供必要的目录与环境,检查站点 Enroot 配置和实际挂载。

用 grep 核对文件来源

首先让 Slurm 在计算节点直接读取系统信息:

srun grep PRETTY /etc/os-release

这里的宿主是分配到的计算节点,不一定是运行提交命令的登录节点。原文输出为 PRETTY_NAME="Ubuntu 24.04.3 LTS",只是原文机器的示例,不是本稿实测或当前集群的应有版本。

再把同一个检查放入镜像:

srun --container-image=almalinux:9 grep PRETTY /etc/os-release

原文先显示导入 almalinux:9 的进度,再输出 PRETTY_NAME="AlmaLinux 9.7 (Moss Jungle Cat)",表示读取了镜像中的文件。almalinux:9 是移动标签,后来可能指向另一份镜像;要复现,应按所用 Enroot 支持的方式固定经审核的镜像摘要或 SquashFS 工件。

最后把计算节点文件显式挂入容器,改读挂载目标:

srun --container-image=almalinux:9 \
  --container-mounts=/etc/os-release:/host/os-release:ro+rprivate \
  grep PRETTY /host/os-release

与原文的差异:原挂载未指定标志,本文为只读验收目的增加 ro+rprivate。ro 限制通过此挂载写入,rprivate 隔离挂载传播;它不证明所有路径和句柄都已隔离。修改只经过静态核查,未在实际站点执行。

原文再次得到 Ubuntu 的 PRETTY_NAME,因为 /host/os-release 来自宿主。三步核对的是路径来源,不是哪个发行版名称更正确。它们不能证明主目录未挂载、容器没有网络、凭据未继承或整个集群已经安全隔离。

批处理入口:sbatch

Pyxis 也可使批处理脚本在容器镜像中运行。下例保留 README 的历史镜像 nvcr.io#nvidia/pytorch:21.12-py3,只导入 PyTorch 并打印版本,没有训练或性能测量:

sbatch --wait -o slurm.out <<'EOF'
#!/bin/bash
#SBATCH --container-image nvcr.io\#nvidia/pytorch:21.12-py3

python -c 'import torch ; print(torch.__version__)'
EOF

cat slurm.out

与原文的差异:here-document 的分隔符从 <<EOF 改成 <<‘EOF’,避免以后在脚本中加入的 $变量或命令替换在提交端提前展开;原固定脚本并没有这类动态内容。# 在 SBATCH 指令中具有注释意义,用于注册表与镜像的分隔符时必须保留转义 \#。

原文 slurm.out 展示镜像导入消息及 1.11.0a0+b6df043。这是旧镜像的历史输出,不是推荐当前安装此版本。镜像还可能受注册表访问、许可与站点策略限制,应核查来源、已知漏洞、可用性及凭据注入方式。–wait 会等待作业结束;输出文件写入位置和已有文件须检查,避免覆盖需要保留的结果。

测试、进阶资料和问题反馈

项目通过 Bats 运行集成测试。README 给出的命令为:

salloc --overcommit bats tests
bats tests/sbatch

原文要求在 Slurm 作业分配内运行相关集成测试。部分测试假设特定 Enroot 配置,例如 PMIx/PyTorch hooks,因此不保证所有系统均通过;这些命令会使用调度资源,不是只读静态检查。本稿没有运行测试,未把帮助信息出现参数称为集成测试通过。

进阶资料是原文 Wiki 的 Home、Installation、Setup、Usage。这里保留进一步阅读链接,不声称已经全文核验了另一套 Wiki 教程。

一般问题可提交 issue;贡献前先阅读 CONTRIBUTING 再提交 pull request。原项目特别要求安全问题不要公开开 issue 或 pull request,而应负责地向 psirt<at>nvidia.com 披露。本文仅保留渠道说明,没有发送消息。

归属、许可与审核说明

原作和维护:NVIDIA Pyxis 项目及贡献者。项目采用 Apache License 2.0,同标签 LICENSE 保留 Copyright 2019-2020 NVIDIA CORPORATION,完整文本见下方原始许可全文。本文明确标注翻译整理、挂载标志、here-document 引号和安全边界等改动,不表示 NVIDIA 或 Slurm 为新增内容背书。

静态审查覆盖安装命令、全部容器参数、srun、sbatch 和测试入口,说明了特权安装、节点重启、通配符匹配、宿主挂载、环境继承、状态复用及旧镜像风险。未运行原文或修正版,没有发现硬编码秘密也不等于没有漏洞。文稿通过来源与编辑核查,不是生产部署验证报告。
