用 Grist 汇总表分组统计并钻取原始记录

汇总表是 Grist 的数据分析基础。它与电子表格的透视表、数据库的 GROUP BY 思路相近:先根据字段把原始记录分成组,再计算整张表或每一组的数量、金额、平均值等指标。你可以按状态或优先级统计项目,按年份、季度和类别汇总银行交易,也可以同时按职位、性别、部门分组。

本文依据 Grist 官方帮助中心《Summary Tables》全文整理。原文未注明个人作者;来源与维护方为 Grist。核对日期:2026-10-05。在线帮助未固定产品版本,界面文字可能随版本变化。

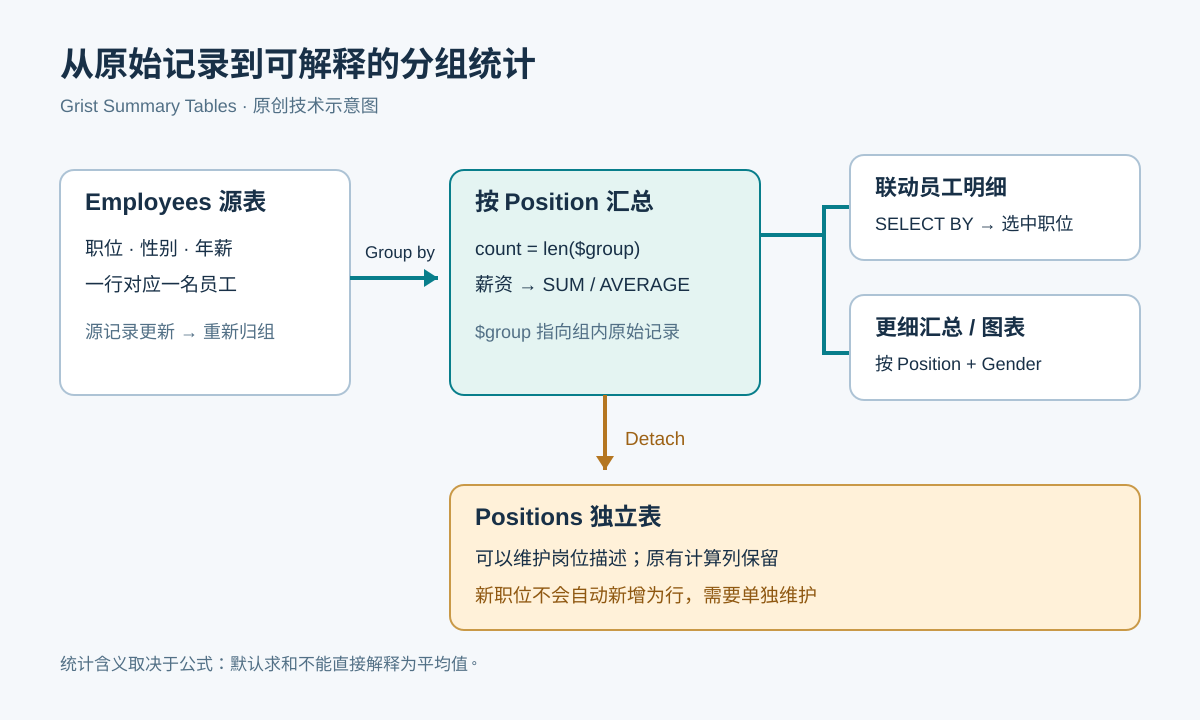

原始员工记录按职位分组,汇总行通过 group 引用组内记录;选择汇总行后联动明细和更细的图表,Detach 后成为不自动新增分组的独立表。
图 1:汇总、钻取和脱离汇总的关系。本文原创技术示意图,并非 Grist 界面截图。

创建汇总表:先决定按什么分组

点击 Add New,选择 Add Page 或 Add Widget to Page。在组件选择器中,找到要汇总的表,点击表名旁的求和图标。接着在 Group by 中选择一个或多个分组字段。

例如,源表 Employees 记录员工信息。选择 Position 后,每个不同职位会在汇总表中对应一行;选择 Position 和 Gender,则每一种“职位与性别”的组合对应一行。如果不按任何字段分组,就可以把所有记录放在同一组中,计算整表统计。

分组字段决定有哪些组,不是要计算哪些数值。若目标是“各职位的平均工资”,应把职位选为分组字段,随后使用公式计算工资。把工资也选入 Group by,会继续按工资值拆分记录,得到另一种统计粒度。

可以把每个汇总行理解成一个桶:状态字段决定“Active”“Completed”“NotStarted”等桶,原始项目按状态进入相应桶,公式再计算每个桶中的项目数与总成本。更改源记录的状态,记录所属的组也随之变化。

按年、季度、月份或周汇总

对于 Date 或 DateTime 列,通常需要先在源表增加一个辅助列,从日期中提取要统计的时间周期。添加列时,选择 Date helpers…,再选择日期列以及年、季度、月或周等周期。之后,把辅助列作为汇总表的 Group by 字段。

这样,周期的定义保留在源数据旁边,汇总表只负责分组与计算。若需要自定义日期处理,可继续参考官方的 Working with dates 文档。编者提醒:做跨年度月报时,要确认辅助列区分了年份,避免把不同年份的同一个月份误并为一组;这是使用数据前的语义检查,不是本次执行结果。

理解自动生成的公式和 $group

创建汇总表后,选定的分组字段会成为列,其余列都是公式列。Grist 会自动增加 count,表示当前组有多少条原始记录;对于源表中的数值列,它通常创建同名汇总列并默认求和。

以按职位汇总 Employees 为例,组件标题可能显示为 EMPLOYEES [by Position]。可以点击标题改名。选中 count 或 AnnualPay 单元格并按 Enter,就能查看公式:

# count 列
len($group)

# AnnualPay 列
SUM($group.AnnualPay)

$group 本身也是一列,只是默认隐藏。每个单元格保存当前汇总行所代表的原始记录集合。取消隐藏后,界面会把它显示成包含数字行 ID 的 Python 列表。

对熟悉 Python 的读者来说,$group 是一个可迭代的记录集合;$group.A 是取得所有记录的 A 列值的简写,含义类似 [r.A for r in $group]。因此,汇总公式不是只能进行固定的“求和”:它可以访问组内每条记录,也可以引用汇总表本身的其他列。

自动生成不等于业务含义正确。例如把小时工资 PayRate 相加通常没有意义。你可以用列菜单或 Alt + Minus 删除不需要的汇总列,或把公式改为平均值。汇总表允许修改现有公式、添加公式列,但不允许添加普通的非公式列。

统计目标 原文公式 解释
平均值 AVERAGE($group.PayRate) 计算本组工资率的平均值。
由合计与数量计算平均值 SUM($group.PayRate) / $count 当分母的记录范围与实际要平均的值一致时使用。
标准差 STDEV($group.PayRate) 描述组内值的离散程度。
最大值与最小值 MAX($group.PayRate)、MIN($group.PayRate) 查看组内数值范围。
满足条件的金额合计 SUM(r.AnnualPay for r in $group if r.EmploymentStatus == "Active") 只对在职员工求和。
加权平均 AVERAGE_WEIGHTED(zip($group.Life_Expectancy, $group.Population)) 把预期寿命与人口一一配对,以人口作为权重。

编者校核:空值、错误值、样本数量和权重是否合理,会影响统计解释。不要默认 SUM(...)/$count 与忽略空值的平均函数在所有数据上都等价,也不要把零权重或错误值悄悄当作正常结果。本次只对公式与原文进行静态核对,没有在 Grist 中执行这些公式。

调整分组字段,理解哪些单元格不能编辑

汇总表的分组列来自源表。不能直接修改其中的分组值,也不能直接更改分组列的数据类型等设置;这些值和设置反映的是源表。如果源表出现了新的分组值,汇总表会自动增加相应行。

若想从“按职位”改成“按职位与部门”,点击汇总组件右上角的三点菜单,打开 Data selection,再点击侧栏的 Edit Data Selection。在与创建时相同的组件选择器中,取消旧的分组字段、选中新的字段,最后点击 Save。

这里改变的是分组定义。若只是想把某名员工归到其他职位,应修改源表中的员工记录,而不是试图编辑汇总行。

通过汇总行钻取明细

汇总表可以作为其他组件的选择器。在同一页面中已有按 Position 汇总的员工表时,添加一个显示未汇总 Employees 数据的表格组件,然后在 SELECT BY 中选择这个汇总组件。此后点击某个职位,明细表就显示该职位的员工。

也可以联动一个更细的汇总。例如,先有“按职位”的概览,再新增“按职位和性别”的汇总,并让前者控制后者。选中一个职位后,就能看到该职位内部按性别拆分的结果。新组件的分组字段需要同时包含 Position 与 Gender,否则它并不具备所需的关联粒度。

这种布局可以保留上下文:左侧看到哪些组规模大,右侧检查该组由哪些记录组成。它能帮助解释统计值,但联动筛选本身不是访问控制。敏感数据仍需由文档的权限设置保护。更多联动方式见官方 Linking widgets。

让图表使用汇总数据

汇总表也是图表的数据源,并可与其他组件形成动态图表。沿用上述示例,添加一个按 Position 和 Gender 分组的 Chart 组件,选择 Bar Chart,把 Gender 和 AnnualPay 设为 Visible Series。让它由职位汇总组件控制,点击职位即可查看对应分组的薪酬指标。

原文中需特别核对的地方:文章在图表段落把该图解释为“平均工资”,但前面说明数值列默认使用 SUM。若你的 AnnualPay 仍是 SUM($group.AnnualPay),图表展示的就是总工资,不能称作平均工资。要比较平均工资,应先把该汇总列明确改成 AVERAGE($group.AnnualPay),并将列名和图表标题写成平均工资。这一说明是编者对原文统计语义的补充,不是 Grist 自动替你完成的转换。

Detach:把分组结果变成独立表

有时,职位不只是一个员工字段,还需要维护岗位描述、工伤保险代码等资料。每个职位一行的独立 Positions 表更适合这类用途。

先新建按 Position 分组的员工汇总页,在右侧面板的 Data 标签中点击 Detach。Grist 会将其转为一张新数据表,行保持不变,并自动取一个类似 Table1 的名称。把表改名为 Positions 后,就可以添加所需的普通数据列。

已有计算列会保留;此前针对各职位计算的内容,仍可在新表中计算。因此 Detach 不等同于“把所有公式都冻结成静态数值”。真正关键的变化是:独立表不会自动接纳新分组值。今后源表出现一个从未见过的职位,仍连接源表的汇总会自动出现新行,已经脱离的 Positions 表则不会。

选择前应想清楚目标:持续随源数据更新的统计适合保留汇总关系;需要人工维护属性的职位维度适合独立表,并为新增职位安排维护流程。删除列或脱离汇总前,建议保留文档副本,便于核对与回退。

来源与校核说明

原文:Grist Help Center,Summary Tables。原文无个人署名、未明确发表日期;未推定作者姓名或首发时间。软件开源许可证不在本文中被用来替代文章授权。

本文涵盖原文全部技术章节,保留关键公式和界面名称,另标出统计语义及权限方面的编者提示。配图为原创示意图。未登录或修改 Grist 文档,未执行公式、未进行真实投递或产品功能测试;静态审查未发现硬编码秘密、外部命令执行或注入构造,但这不等于软件或文档配置不存在其他风险。

原始版权与许可

原文 Copyright 2022 Grist Labs Inc.;Grist 帮助文档官方许可为 CC BY-SA 4.0。本中文翻译整理及原创示意图同样按 CC BY-SA 4.0 提供;改动包括翻译、结构整理、明确标示的公式与图表说明。不表示 Grist 为改动背书。
