一个模型的效果，既取决于算法，也取决于特征表示、正则化强度和数据划分。只在训练数据上试几个参数，再挑训练分数最高的一组，很容易把数据中的偶然规律当成可推广的能力。Spark MLlib 提供 CrossValidator 与 TrainValidationSplit，让候选参数在留出的数据上接受同一套评估，再用胜出的参数重新训练模型。
来源与版本：本文依据 Apache Spark 官方 ML Tuning: model selection and hyperparameter tuning 完整正文、随文两份 Python 示例及样例 LIBSVM 文件译解整理。2026-10-05 读取的 latest 页面标示 Spark 4.2.0；它是会变化的文档地址，部署时应切换到实际运行版本。原页没有可确认的个人作者，维护方为 Apache Software Foundation / Spark contributors。本文未启动 Spark、未训练模型，也没有生成准确率、RMSE 或性能结果。
模型选择需要三个对象
这里的“模型选择”也称超参数调优。被调对象可以是单个 Estimator，例如逻辑回归，也可以是包括特征处理与分类器的整条 Pipeline。把 Pipeline 整体交给调参器，可以同时比较特征维数和算法参数，而不必先孤立地决定每个阶段。
| 对象 | 作用 | 本文例子 |
|---|---|---|
| Estimator | 给定数据和参数，拟合得到模型 | 文本处理 Pipeline；线性回归 |
| ParamMap 集合 | 列出待比较的参数组合 | HashingTF 维数 × 正则化强度 |
| Evaluator | 对留出数据上的模型预测计算指标 | 二分类 ROC 曲线下面积；回归误差 |
共同流程是：划分输入数据；对每组候选参数拟合模型；用验证部分的预测计算指标；选择最佳参数；最后用这组参数在输入给调参器的全部数据上重新拟合。这里的“全部数据”有明确范围：如果传入的是外层训练集，就不应把独立测试集混进去。
原文在介绍内部划分时也使用 test 一词。为避免与最终评估混淆，本文把用于选参数的内部留出部分称为验证集，把不参与选择、只在最后使用的部分称为独立测试集。
Evaluator 应匹配任务类型。官方列出回归、二分类、多分类、多标签和排序评估器；可以通过 setMetricName 选择具体指标。指标决定“最好”的含义：ROC AUC 的比较方向与 RMSE 不同，业务真正关心的误报、漏报或排序质量也未必能由一个默认分数完整表达。
交叉验证怎样使用每一折
若设三折，数据被分成 A、B、C 三部分。第一轮以 A 验证、B 和 C 训练；第二轮以 B 验证；第三轮以 C 验证。对一组参数得到三个评估值，取平均作为这组参数的比较依据。不同参数使用相同的划分逻辑，避免比较被不同验证数据的难度混淆。
找到最佳参数后，CrossValidator 还会在交给它的完整数据上再拟合一次。最终返回的模型不是随便挑出某一折训练出来的模型。这有助于在参数已经选定后利用更多训练信息。
原示例用三种 HashingTF 维数、两种正则化强度、两折交叉验证：候选组合数是 3 × 2 = 6，内部需要 6 × 2 = 12 次拟合；另有最佳参数的最终重拟合。增大参数网格或折数，成本会相乘。两折只是演示设置，原文提到三折、十折等常见选择；实际应根据数据量、验证稳定性和算力预算决定。
文本示例：一起选择特征维数和正则化
下面以官方 Python 示例为主线。Scala 与 Java 版本实现相同流程，原页还给它们设置了 parallelism=2。为避免重复三份相同算法，本文保留 Python 的完整核心步骤；三种语言的原示例仍可在来源页对照。
完整源码会创建 SparkSession 并在结束时调用 spark.stop()。如果不是在已有 spark 的交互式环境中使用，需要先准备会话：
from pyspark.sql import SparkSession
spark = SparkSession.builder.appName("CrossValidatorExample").getOrCreate()getOrCreate() 会使用当前环境的 Spark 配置；它不代表这里已经配置了某个集群。先确认运行目标和资源限制，再启动自己的实验，避免无意把演示提交到共享生产资源。
from pyspark.ml import Pipeline
from pyspark.ml.classification import LogisticRegression
from pyspark.ml.evaluation import BinaryClassificationEvaluator
from pyspark.ml.feature import HashingTF, Tokenizer
from pyspark.ml.tuning import CrossValidator, ParamGridBuilder
training = spark.createDataFrame([
(0, "a b c d e spark", 1.0),
(1, "b d", 0.0),
(2, "spark f g h", 1.0),
(3, "hadoop mapreduce", 0.0),
(4, "b spark who", 1.0),
(5, "g d a y", 0.0),
(6, "spark fly", 1.0),
(7, "was mapreduce", 0.0),
(8, "e spark program", 1.0),
(9, "a e c l", 0.0),
(10, "spark compile", 1.0),
(11, "hadoop software", 0.0)
], ["id", "text", "label"])
tokenizer = Tokenizer(inputCol="text", outputCol="words")
hashingTF = HashingTF(
inputCol=tokenizer.getOutputCol(), outputCol="features"
)
lr = LogisticRegression(maxIter=10)
pipeline = Pipeline(stages=[tokenizer, hashingTF, lr])
paramGrid = (
ParamGridBuilder()
.addGrid(hashingTF.numFeatures, [10, 100, 1000])
.addGrid(lr.regParam, [0.1, 0.01])
.build()
)
crossval = CrossValidator(
estimator=pipeline,
estimatorParamMaps=paramGrid,
evaluator=BinaryClassificationEvaluator(),
numFolds=2,
)
cvModel = crossval.fit(training)Tokenizer 把文本变成词序列，HashingTF 把它变成固定维度的特征向量，逻辑回归做分类。参数引用绑定到这里创建的 hashingTF 和 lr 对象；构造网格后如果又换了一组 Pipeline 阶段，不能假设旧参数引用会自动对应新的实例。
二分类评估器在原例中的默认指标是 areaUnderROC。输入只有十二条刻意简化的教学文本，maxIter=10 也只是示例配置：这套数据不能证明真实文本分类效果，十次迭代同样不构成收敛保证。查看收敛、类别分布和业务指标，是把示例用于真实任务前另外需要做的工作。
官方随后准备四条无标签文本并展示预测：
test = spark.createDataFrame([
(4, "spark i j k"),
(5, "l m n"),
(6, "mapreduce spark"),
(7, "apache hadoop")
], ["id", "text"])
prediction = cvModel.transform(test)
selected = prediction.select("id", "text", "probability", "prediction")
for row in selected.collect():
print(row)这四条数据没有 label，所以代码只展示预测类别和概率，没有计算测试准确率或测试 AUC。原示例复用了部分数字 ID，但模型使用的是文本特征；在真实工程中仍应让记录身份与数据划分可追踪，检查同一用户、实体或重复文本是否跨越训练与测试边界。
collect() 会把所有结果拉到 Driver。对四条演示记录没有大规模风险，但把相同写法搬到百万条结果会造成驱动端内存压力。真实作业应限制预览条数，或者写入合适的分布式输出。
一次训练—验证划分：更低成本的选择
TrainValidationSplit 不轮流验证每一折，而是只拆分一次，每组参数拟合和评估一次。相比 k 折交叉验证，它的计算成本较低；但当数据量不足、类别稀少或一次划分偶然性较强时，参数排名更容易不稳定。
trainRatio=0.75 表示把输入给调参器的数据约 75% 用于训练，约 25% 用于验证。它也会在选定参数后，用输入给调参器的全部数据重新拟合。

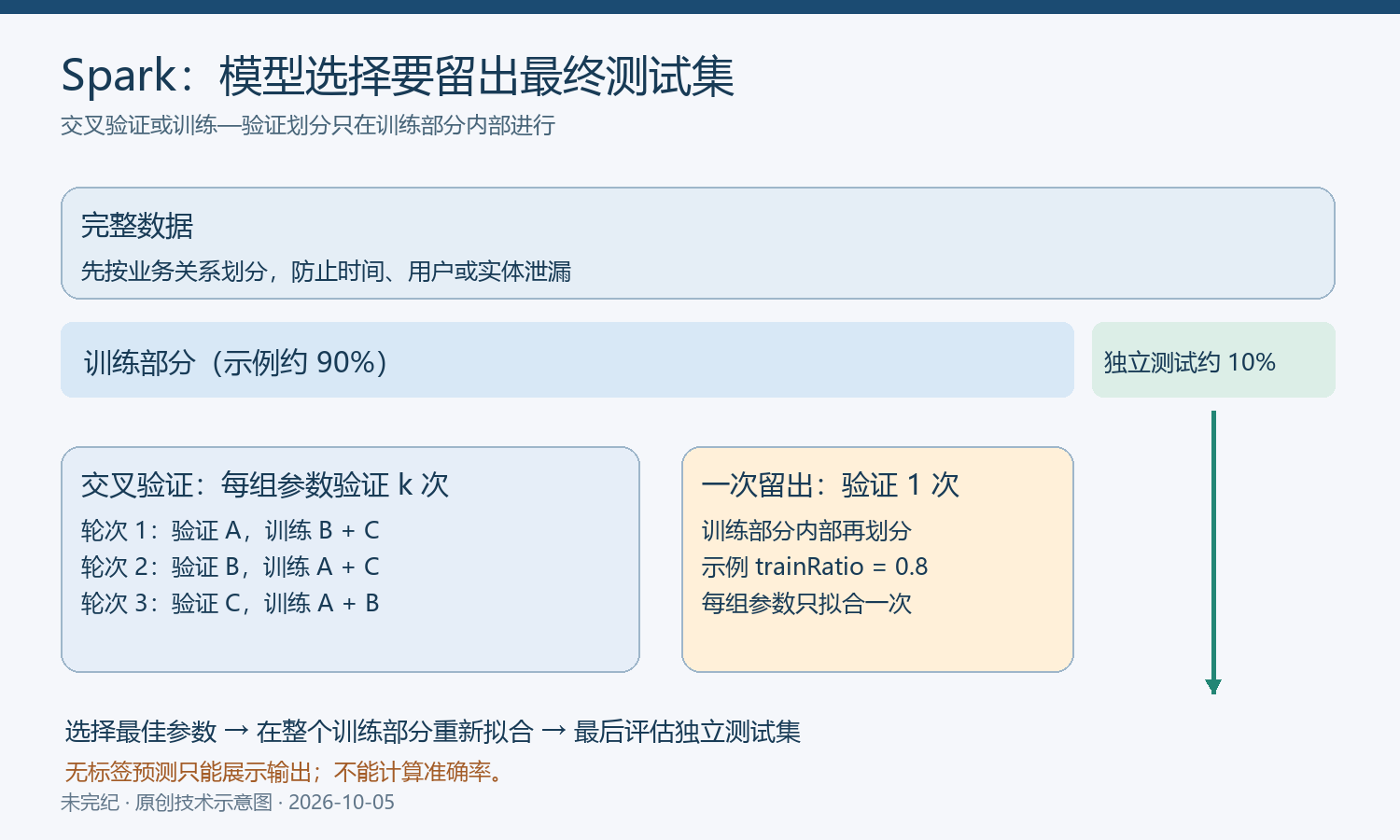

官方回归示例先从完整数据中做一次 90% / 10% 的外层划分，留出最后的测试集，再对训练部分做内部 80% / 20% 的验证划分：
from pyspark.ml.evaluation import RegressionEvaluator
from pyspark.ml.regression import LinearRegression
from pyspark.ml.tuning import ParamGridBuilder, TrainValidationSplit
data = spark.read.format("libsvm").load(
"data/mllib/sample_linear_regression_data.txt"
)
train, test = data.randomSplit([0.9, 0.1], seed=12345)
lr = LinearRegression(maxIter=10)
paramGrid = (
ParamGridBuilder()
.addGrid(lr.regParam, [0.1, 0.01])
.addGrid(lr.fitIntercept, [False, True])
.addGrid(lr.elasticNetParam, [0.0, 0.5, 1.0])
.build()
)
tvs = TrainValidationSplit(
estimator=lr,
estimatorParamMaps=paramGrid,
evaluator=RegressionEvaluator(),
trainRatio=0.8,
)
model = tvs.fit(train)
model.transform(test).select("features", "label", "prediction").show()样例路径相对于 Spark 源码或发行目录，不是任意目录都存在的系统路径。本次读取了随文 train_validation_split.py、cross_validator.py 和样例文件；所取 LIBSVM 文件有 501 行，没有空行。这个静态文件核对只确认材料齐全，不代表 Spark 已成功加载数据。
参数网格有 2 × 2 × 3 = 12 组：两种正则强度、是否拟合截距，以及三种 Elastic Net 混合比例。每组只做一次内部训练与验证，然后最佳参数在整个外层 train 上重拟合。若比例恰好实现，内部训练、内部验证和最终测试约占总体的 72%、18%、10%；随机划分并不保证有限数据集里记录数精确等于这些比例。
原例最终仅调用 show() 展示预测。若想得到最终回归指标，应在参数选择完成后，对此前保留的测试集调用评估器。下面是编辑新增的显式 RMSE 计算，不含任何预设结果，也未运行：
test_predictions = model.transform(test)
test_rmse = RegressionEvaluator(
labelCol="label", predictionCol="prediction", metricName="rmse"
).evaluate(test_predictions)
print(f"Test RMSE: {test_rmse}")看到测试误差之后再不断调整网格，实际上又把测试集用于选参数。若反复迭代开发，应为最终判断另保留未被开发过程利用的数据，或者采用符合业务目标的嵌套评估方案。
控制随机性、泄漏与算力
原回归例为外层 randomSplit 指定了种子，但没有显式设置内部 TrainValidationSplit 的种子；文本例也没有显式设置交叉验证种子。当前 CrossValidator API 与 TrainValidationSplit API 都支持 seed。下面是编辑建议的配置变化，不是原 Python 示例已有内容：
crossval.setSeed(12345).setParallelism(2)
tvs.setSeed(12345).setParallelism(2)这些设置应放在各自的 fit() 之前。种子有助于在相同输入和执行条件下复核实验，但并不保证不同数据顺序、分区、依赖版本和运行环境永远得到位级一致的结果；也不会自动解决类别比例失衡或时间泄漏。
真实数据的划分应服从业务关系。同一用户的多条记录可能需要保持在同一侧；时间预测应避免用未来信息训练再预测过去；类别稀少时需要检查每个验证部分是否仍能定义所用指标。当前 API 也提供 foldCol 指定折号：该列应为整数、落在 [0, numFolds)，设置后不再做随机 k 折划分。对时间顺序任务，简单分配 foldCol 仍不自动构成滚动时间验证，训练窗口必须另行设计。
任何需要“从数据学出参数”的预处理，如标准化、词汇表、特征选择或目标编码，都应留在相应训练折内拟合。提前在全部数据上拟合这些步骤，再做交叉验证，会把验证数据的信息泄漏进模型。把流程封装进 Pipeline 的价值，就在于让拟合过程和数据边界一起被管理。
parallelism=1 默认串行评估参数组合，设为 2 或更多可以并发。这里控制的是调参层并发，单个 Spark 模型训练本身还可能消耗多个执行器与任务槽。原文提出“多数集群通常不必超过十”的经验性建议，不能视作统一安全上限；内存、Shuffle、缓存和其他作业的占用决定实际可承受值。也不宜无必要地保存全部子模型，当前 API 提醒 collectSubModels=True 可能让大型模型占满 Driver 内存。
如何阅读一次调参结果
评估一轮实验，至少应保留输入数据版本、外层测试划分、内部验证方式、种子、完整参数网格、指标名称、各组合分数、最佳参数和最终测试结果。较高的验证分数只是这个网格与这次划分下的相对结果；它没有证明对未来时间段、其他客户或不同数据分布同样有效。
两折文本例和一次留出的回归例适合解释 API。前者展示如何把 Pipeline 整体当作 Estimator，后者展示如何在外层训练部分内部选参数。做业务决策时，应从数据关系和评价目标出发，再选择验证方案，而不是把示例参数当成标准配置。
代码核对与许可
本次做了全文与伴随文件的静态核验，检查了参数引用、输入路径、随机划分、拟合与预测顺序、数据收集位置，以及代码中的权限与外部调用。示例没有硬编码秘密、字符串拼接 SQL、网络凭据或删除文件命令；实际需要关注的是错误的集群目标、数据泄漏、没有控制的拟合成本和 collect() 的驱动端内存风险。没有发现某类问题，不代表组件或运行环境没有漏洞。
本文保留官方算法和候选参数；改用括号组织 Python 链式调用以便阅读，新增种子与并行度建议、RMSE 评估片段及数据边界说明，均已标出。本文未执行示例中的 spark-submit、模型拟合或数据加载。文件检查和代码静态解析不被称为运行测试。
