一个发送端、一个主题交换机、一条队列和一个普通 Java 接收对象，就能串起 Spring AMQP 的基本消息链路。本文从本地 RabbitMQ 服务开始，完整走过项目初始化、监听器注册、发送测试消息和打包运行。
要构建什么，需要准备什么
我们要构建一个 Spring Boot 应用，让它向 RabbitMQ AMQP 服务发布消息，再订阅并处理消息。发送侧使用 Spring AMQP 的 RabbitTemplate，接收侧用 MessageListenerAdapter 把消息交给一个 POJO，也就是普通 Java 对象。
原指南估计需要约 15 分钟。准备一个编辑器或 IDE，以及 Java 17 或更高版本。若采用本文默认的 Spring Boot Docker Compose 集成，还需要可用的 Docker 环境，例如 Docker Desktop。项目构建可选择 Maven 或 Gradle。
你可以从零跟随步骤，也可以直接查看示例仓库中的完整解法。获取代码有三种方式：下载仓库 ZIP 后解压；用 Git 克隆；或 Fork 仓库，以便通过 Pull Request 向原指南贡献修改。克隆命令如下：
git clone https://github.com/spring-guides/gs-messaging-rabbitmq.git版本注：Java 17 是原指南给出的下限，并非任意未来 Spring Boot 版本的保证。构建插件、依赖版本和 Gradle/Maven Wrapper 以下载项目中的构建文件为准。本文不把会持续更新的仓库或 Initializr 输出视为固定版本。
先准备 RabbitMQ 服务
消息应用需要一个 broker 来接收、路由和投递消息。本文默认使用 Spring Boot 的 Docker Compose 支持。将 spring-boot-docker-compose 加入依赖后，Spring Boot 会在工作目录中查找 compose.yml 等常见 Compose 文件名，调用 docker compose up，为受支持的容器创建服务连接 Bean，并在应用关闭时调用 docker compose stop。按照后面的项目初始化步骤选择相应依赖，即可采用这种方式。
也可以自行管理 RabbitMQ：从 RabbitMQ 官网 下载服务器并手动运行；在 macOS 上通过 Homebrew 安装；或者直接用 docker-compose up 运行 compose.yaml。选择这些方式时，应从 Maven 或 Gradle 构建文件中移除 spring-boot-docker-compose 依赖，再按后文“打包前：连接外部 RabbitMQ”的方式配置 application.properties。默认的自动 Compose 路径暂时不需要补这份连接配置。
运行方式注：Docker Compose 集成主要用于开发阶段。当前 Spring Boot 文档说明，已经运行的 Compose 服务不会由它重复启动，应用退出时也不会代为停止；可执行归档默认不包含该开发依赖。因此，开发时的自动发现连接不能直接当作独立 JAR 或容器的部署方案。原文使用的 docker-compose 是兼容写法，现代 Compose 环境通常使用 docker compose；请按本机实际安装方式选择。
用 Spring Initializr 创建项目
打开 Spring Initializr，选择 Maven 或 Gradle，以及 Java 语言。在 Dependencies 中加入 Spring for RabbitMQ 和 Docker Compose Support，点击 Generate，下载并解压生成的 ZIP。Initializr 会根据这些选择准备依赖和项目结构。若 IDE 集成了 Spring Initializr，也可以直接在 IDE 内完成这些步骤。原指南同时提供了原文中的预选项目入口；该服务的可用版本会变化，应在 Initializr 中选择受支持版本并保留上述依赖。
创建消息接收器
先创建一个能够响应消息的方法。文件路径为 src/main/java/com/example/messagingrabbitmq/Receiver.java：
package com.example.messagingrabbitmq;
import java.util.concurrent.CountDownLatch;
import org.springframework.stereotype.Component;
@Component
public class Receiver {
private CountDownLatch latch = new CountDownLatch(1);
public void receiveMessage(String message) {
System.out.println("Received <" + message + ">");
latch.countDown();
}
public CountDownLatch getLatch() {
return latch;
}
}Receiver 是一个 POJO，receiveMessage() 就是接收入口。方法名不必固定为这个名字，只要注册接收器时告诉适配器应调用哪个方法即可。
CountDownLatch 用于向主流程发出“消息已经收到”的信号：初始计数是 1，收到消息后调用 countDown()，等待方就能继续。这是为了让简短示例在退出前等待一次接收，生产消息服务通常不会用这种方式管理生命周期。
注册监听器、队列、交换机和绑定
RabbitTemplate 提供 RabbitMQ 消息收发能力，但还需要配置消息监听容器，声明队列、交换机及两者之间的绑定，再准备一个用于发送测试消息的组件。Spring Boot 会自动创建连接工厂和 RabbitTemplate，因此无需手写这些基础对象。
发送端和消息监听容器都通过连接工厂连接 RabbitMQ。将下面的应用类保存到 src/main/java/com/example/messagingrabbitmq/MessagingRabbitmqApplication.java：
package com.example.messagingrabbitmq;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer;
import org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
@SpringBootApplication
public class MessagingRabbitmqApplication {
static final String topicExchangeName = "spring-boot-exchange";
static final String queueName = "spring-boot";
@Bean
Queue queue() {
return new Queue(queueName, false);
}
@Bean
TopicExchange exchange() {
return new TopicExchange(topicExchangeName);
}
@Bean
Binding binding(Queue queue, TopicExchange exchange) {
return BindingBuilder.bind(queue).to(exchange).with("foo.bar.#");
}
@Bean
SimpleMessageListenerContainer container(ConnectionFactory connectionFactory,
MessageListenerAdapter listenerAdapter) {
SimpleMessageListenerContainer container = new SimpleMessageListenerContainer();
container.setConnectionFactory(connectionFactory);
container.setQueueNames(queueName);
container.setMessageListener(listenerAdapter);
return container;
}
@Bean
MessageListenerAdapter listenerAdapter(Receiver receiver) {
return new MessageListenerAdapter(receiver, "receiveMessage");
}
public static void main(String[] args) throws InterruptedException {
SpringApplication.run(MessagingRabbitmqApplication.class, args).close();
}
}@SpringBootApplication 的具体作用可查阅 Spring Boot 参考文档。在本例中，listenerAdapter() 把 Receiver 包装成监听器，并指定调用 receiveMessage；container() 再把这个监听器注册到容器，让它监听名为 spring-boot 的队列。

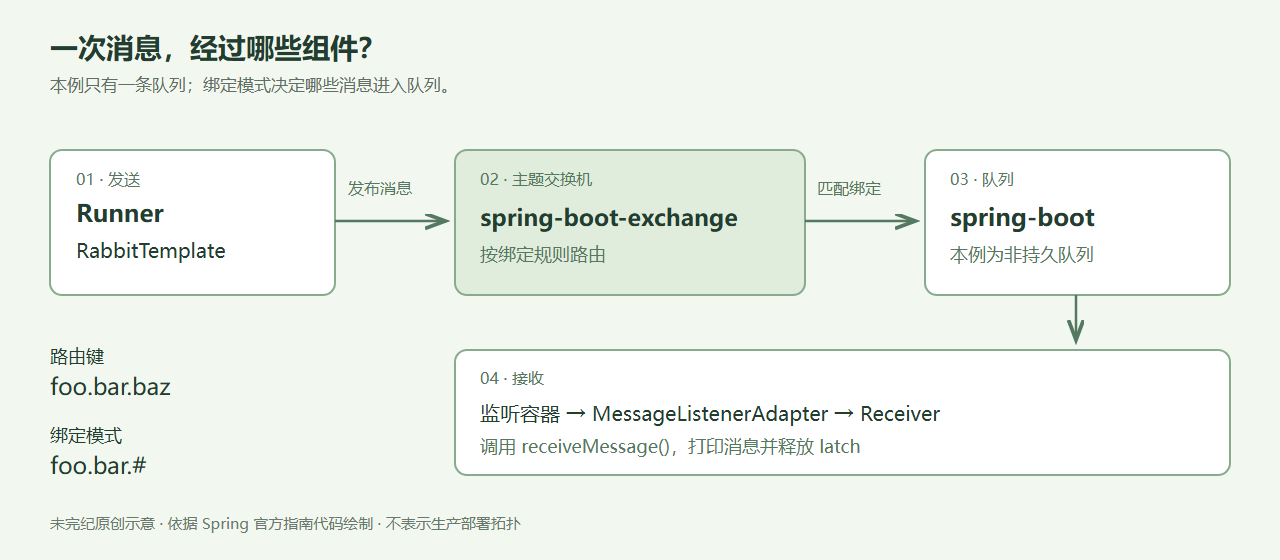

queue() 创建 AMQP 队列，exchange() 创建主题交换机，binding() 则描述交换机应该把哪些消息路由到这条队列。按照原指南的配置方式，Queue、TopicExchange 和 Binding 都要作为独立的顶层 Spring Bean 声明，才能正确完成资源声明。
AMQP 与 JMS 的队列语义有需要区分的地方。队列中的一条消息会交给某个消费者，但 AMQP 生产者把消息发送给交换机，再由交换机决定将它路由到一条或多条队列。后者也可以实现类似 JMS topic 的广播效果。这个示例只有一条绑定队列，因此它展示的是发布、路由、接收的基本过程，而不是多个独立订阅者的完整广播场景。
这里的绑定键是 foo.bar.#，发送时采用的路由键只要符合该模式，就会进入 spring-boot 队列。原文用“以 foo.bar. 开头”作直观说明；更精确地说，主题键按点分隔成单词，# 可以匹配零个或多个单词，因此 foo.bar 本身也能匹配，foo.bar.baz 当然也能匹配。参见 RabbitMQ 官方 Topics 教程。
可靠性注：new Queue(queueName, false) 明确创建非持久队列。此配置不保证 broker 重启后队列仍存在。示例也没有展示发布确认、退回处理、业务幂等、重试、死信或生产账号隔离；“发送调用返回”不等于已获得业务处理成功的端到端保证。
发送一条测试消息
测试消息由 CommandLineRunner 发送。它在应用启动后运行，发送消息，然后等待接收器中的 latch。文件路径为 src/main/java/com/example/messagingrabbitmq/Runner.java：
package com.example.messagingrabbitmq;
import java.util.concurrent.TimeUnit;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.boot.CommandLineRunner;
import org.springframework.stereotype.Component;
@Component
public class Runner implements CommandLineRunner {
private final RabbitTemplate rabbitTemplate;
private final Receiver receiver;
public Runner(Receiver receiver, RabbitTemplate rabbitTemplate) {
this.receiver = receiver;
this.rabbitTemplate = rabbitTemplate;
}
@Override
public void run(String... args) throws Exception {
System.out.println("Sending message...");
rabbitTemplate.convertAndSend(MessagingRabbitmqApplication.topicExchangeName, "foo.bar.baz", "Hello from RabbitMQ!");
receiver.getLatch().await(10000, TimeUnit.MILLISECONDS);
}
}convertAndSend() 的三个参数依次是交换机名称、路由键和消息内容。foo.bar.baz 与前面的绑定模式匹配。测试时可以模拟（mock）这个 runner，从而单独测试接收器。
静态审查注：await(10000, TimeUnit.MILLISECONDS) 最多等待 10 秒，代码没有检查其布尔返回值。超时后 runner 也会结束，随后 main() 关闭应用上下文；所以进程退出本身不能作为已收到消息的判据。另外，原文对 Runner 的路径曾写成 src/main/java/com.example.messagingrabbitmq/Runner.java，本文按 Java 包目录写成斜杠路径，包声明与代码未改。
运行应用
main() 先创建 Spring 应用上下文，监听容器随之启动并开始监听。随后自动执行 Runner Bean，使用容器中的 RabbitTemplate 发布 Hello from RabbitMQ!。消息经交换机到达队列，接收器打印内容并释放 latch，最后应用上下文关闭，进程退出。
可以直接从 IDE 运行 main 方法。若克隆的是完整示例仓库，IDE 的工作目录有时不是 compose.yaml 所在目录；此时应调整工作目录或 Compose 文件路径。也可以在实际应用模块目录使用项目自带的构建 Wrapper：
./gradlew bootRun
# 或使用 Maven
./mvnw spring-boot:run原指南指出，采用这些命令可以让应用找到对应的 Compose 文件。Windows PowerShell 用户应使用项目中的 .\gradlew.bat 或 .\mvnw.cmd，具体入口以仓库文件为准；上述原文命令按类 Unix shell 展示。
打包前：连接外部 RabbitMQ
如果不使用 Spring Boot Docker Compose 集成，就需要一个已经运行的 RabbitMQ 实例。继续使用 Compose 时，原指南要求把端口映射改成 '5672:5672'，并增加容器名。完整 compose.yaml 为：
services:
rabbitmq:
container_name: 'guide-rabbit'
image: 'rabbitmq:latest'
environment:
- 'RABBITMQ_DEFAULT_PASS=secret'
- 'RABBITMQ_DEFAULT_USER=myuser'
ports:
- '5672:5672'然后用 docker-compose up 启动服务。因为连接信息不再由 Spring Boot 的开发服务集成自动提供，还需要在 src/main/resources/application.properties 中加入：
spring.rabbitmq.password=secret
spring.rabbitmq.username=myuser部署与安全注：secret 和 myuser 是公开的演示凭据，不能原样用于可访问的生产服务；rabbitmq:latest 会随时间变化，不适合可复现部署；5672:5672 默认可能向宿主机多个接口发布端口。仅本机练习时，可将端口映射限定为 127.0.0.1:5672:5672，并为实际环境另行设置版本固定、网络访问控制、凭据管理和 TLS。这里没有配置数据卷，也没有覆盖 broker 数据持久化方案。若服务不在默认本机地址与端口，还要配置对应 host、port 和 virtual host；不要只修改密码便假定连接目标正确。
构建 JAR 或容器镜像
原指南提供两条路径：构建并执行可执行 JAR，以及使用 Cloud Native Buildpacks 构建容器镜像。两种方式都应得到同样的消息输出。
使用 Gradle 打包和运行 JAR：
./gradlew clean build
java -jar build/libs/messaging-rabbitmq-0.0.1-SNAPSHOT.jar如果已有 Docker 环境，也可以直接通过 Maven 或 Gradle 的 Spring Boot 插件使用 Buildpacks 构建镜像。原文给出的 Gradle 命令及运行命令如下：
./gradlew bootBuildImage
docker run --network container:guide-rabbit docker.io/library/messaging-rabbitmq:0.0.1-SNAPSHOT--network container:guide-rabbit 让应用容器共享已经运行的 guide-rabbit 容器的网络命名空间，具体行为见 Docker 网络文档。这解释了为什么此路径前面要给 RabbitMQ 容器固定名称。文件名和镜像标签取决于项目构建设置；若修改了项目名或版本号，请同步调整命令中的名字。
按照原文，无论采用哪一种构建运行方式，都应能看到下面两行核心输出；实际启动日志通常还包括框架信息：
Sending message...
Received <Hello from RabbitMQ!>接下来可以继续学什么
至此，一个简单的 Spring 与 RabbitMQ 发布和订阅应用就建立起来了：发送者把消息交给交换机，绑定规则选择队列，监听容器再把消息转交给 POJO。更多功能可继续阅读 Spring AMQP 参考文档与 Spring AMQP Samples。
原指南的相关教程还包括：Messaging with Redis、Messaging with JMS 和 Building an Application with Spring Boot。若希望编写新指南或改进现有内容，可查看 贡献说明。源页也提供 Spring Academy 云端学习入口。
