Zephyr Sysbuild:一起构建 MCUboot 与应用固件

一个需要由 MCUboot 引导的应用,不能只构建自己的固件镜像。Zephyr 的 Sysbuild 可以把应用与引导程序纳入同一次系统级构建,让相关镜像使用相互配合的配置。官方 with_mcuboot 示例展示了这件事,同时演示如何只对额外的 MCUboot 镜像加入专用 Kconfig 片段。

本文完整整理 Zephyr 4.4.0 的 MCUboot with sysbuild 示例,并与官方仓库 v4.4.0 标签下的 README、应用源码、构建配置和测试描述逐项核对。原文由 Zephyr Project 维护,没有单独个人署名。检索日期为 2026 年 10 月 5 日;正文对照同版本官方仓库的完整 README 原文核验。

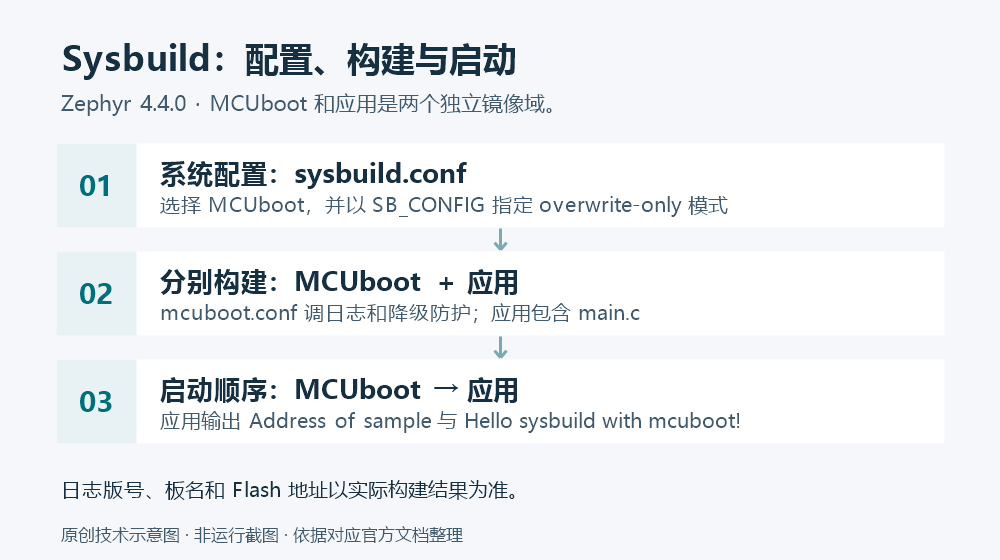

Sysbuild 配置与启动流程示意:sysbuild.conf 选择 MCUboot 及覆盖模式,独立的 MCUboot 和应用镜像分别构建,然后由 MCUboot 引导应用
编辑绘制的配置与启动示意图。两个镜像分别构建,不表示它们必然合成某种固定格式的单一文件。

这个示例解决什么问题

示例的目标很直接:通过 Sysbuild 构建一个 Zephyr 应用,并自动把 MCUboot 加入为引导程序。它同时演示镜像专用的配置覆盖方式——应用可以保留自己的配置,而 MCUboot 通过单独的 Kconfig 片段改变日志级别和降级防护行为。

这是一份多镜像构建与基本启动示例,不是完整的远程升级服务,也没有给出生产用密钥管理、设备生命周期或故障恢复方案。要做板上验证,需要已经准备好的 Zephyr 工作区、相应工具链、与板型匹配的调试烧录器及控制台连接;本文不会把构建成功等同于设备安全升级能力已经验收。

把版本与板型固定下来

本篇锁定 Zephyr v4.4.0。该标签下的 SDK_VERSION 内容为 1.0.1;west.yml 将 MCUboot 固定在以下提交,并放在 bootloader/mcuboot:

ee39e2d694bd827ffd1bebbce2f571a9154e6ec2

这些版本标记来自本次读取的源文件,不代表已经在本机安装或构建成功。复现时应使用同一版本的工作区和模块依赖,避免混合一个标签的应用、另一个版本的 MCUboot 和旧版配置说明。

官方 README 的构建命令选择 reel_board。同标签 sample.yaml 的允许列表同时包含 reel_board 和 nrf52840dk/nrf52840,以及若干 ESP32、STM32、SAM 等平台。允许列表表示示例的测试配置边界,不能理解为任意 Zephyr 板都能无条件使用。若使用 Nordic 开发板,应写完整目标 nrf52840dk/nrf52840;不要直接把旧日志里较短的板名当作当前构建目标。

先看文件分工,再修改参数

示例目录是 samples/sysbuild/with_mcuboot。本次完整读取的关键文件及职责如下:

文件 职责
sysbuild.conf 系统级构建配置,启用 MCUboot 并选择覆盖模式
sysbuild/mcuboot.conf 只给 MCUboot 镜像追加的配置片段
prj.conf 应用自身配置;该示例只有“Empty file”注释
CMakeLists.txt 声明应用工程、要求使用 Sysbuild、加入 main.c
src/main.c 打印应用镜像地址及板名
sample.yaml 指定 Sysbuild 测试方式、板型范围与控制台匹配规则

把这几类配置都塞到 prj.conf 里,并不能表达同样的系统构建关系。最外层的 Sysbuild 配置与某个镜像自己的 Kconfig 配置,所处层级不同。

sysbuild.conf:启用引导程序并选择工作模式

v4.4.0 示例的实际内容是:

# Sysbuild configuration file.

# Enable MCUboot using overwrite only mode for this sample.
SB_CONFIG_BOOTLOADER_MCUBOOT=y
SB_CONFIG_MCUBOOT_MODE_OVERWRITE_ONLY=y

SB_CONFIG_BOOTLOADER_MCUBOOT=y 表示在 Sysbuild 构建中加入 MCUboot。SB_CONFIG_MCUBOOT_MODE_OVERWRITE_ONLY=y 选择此示例的 overwrite-only 覆盖模式。以 SB_CONFIG_ 开头的设置属于 Sysbuild,不要把它改写成应用层的同名 CONFIG_ 设置,也不要只编译应用后假定引导镜像已经一起生成。

“覆盖模式”是这里选择的镜像更新工作方式,不能据此声称具备交换模式的全部回退能力。生产环境是否采用这种模式,要结合分区和升级失败处理设计来决定;本示例只展示该配置如何经 Sysbuild 传递。

mcuboot.conf:调整额外镜像,不再在这里选模式

原文说明这个文件会作为额外片段,与 MCUboot 的默认配置文件一起合并。当前 v4.4.0 文件为:

# Example of sample specific Kconfig changes when building sample with MCUboot
# when using sysbuild. Note that the MCUboot operating mode is not set here as
# sysbuild will automatically set it for both the application and MCUboot images itself
CONFIG_MCUBOOT_LOG_LEVEL_WRN=y
CONFIG_MCUBOOT_DOWNGRADE_PREVENTION=y

第一项把 MCUboot 日志级别设为 warning,第二项启用降级防护配置。最上面的注释特别指出:MCUboot 的工作模式不在这里设定,Sysbuild 会为应用和 MCUboot 两个镜像自动配置相应模式。

这里有一处应当明确修正的原文差异:v4.4.0 README 仍把日志、降级防护和 upgrade-only 工作方式一起归到 sysbuild/mcuboot.conf 的说明里;但同标签实际源码已经把模式选择放在 sysbuild.conf。本文保留原文的整体意图,同时以实际配置文件为准。照着旧说明把模式参数全搬到 mcuboot.conf,会忽略 Sysbuild 对两个镜像的统一配置。

应用构建文件与完整 main.c

示例的 CMakeLists.txt 没有复杂逻辑,但它调用了 test_sysbuild(),用来检查是否通过 Sysbuild 构建,确保 MCUboot 自动加入并使用本示例指定的专用配置:

# SPDX-License-Identifier: Apache-2.0

cmake_minimum_required(VERSION 3.20.0)

find_package(Zephyr REQUIRED HINTS $ENV{ZEPHYR_BASE})
project(sample_with_mcuboot)

# Verify that this sample is built through sysbuild to ensure MCUboot is
# automatically included and that sample specific MCUboot configurations are
# used when building MCUboot.
test_sysbuild()

target_sources(app PRIVATE src/main.c)

应用侧的 prj.conf 是空配置文件,只包含 # Empty file。这并不表示系统没有配置,而是此例不再通过该文件添加额外应用设置。

应用的完整源码非常短:

/*
 * Copyright (c) 2022 Nordic Semiconductor
 *
 * SPDX-License-Identifier: Apache-2.0
 */

#include <zephyr/kernel.h>
#include <zephyr/linker/linker-defs.h>

int main(void)
{
    printk("Address of sample %p\n", (void *)__rom_region_start);
    printk("Hello sysbuild with mcuboot! %s\n", CONFIG_BOARD);
    return 0;
}

它先打印链接器提供的 __rom_region_start 地址,再打印由 CONFIG_BOARD 提供的板名。%p 对应已经显式转换成 void * 的地址,%s 对应编译期配置的字符串。这里没有网络输入、命令拼接或密钥处理;输出地址的目的,是让使用者能核对应用位于哪个 Flash 区域。

用一次 west build 构建两个镜像

在准备好的 Zephyr 工作区中,按照原 README 对 reel_board 构建,命令展开为:

west build -b reel_board samples/sysbuild/with_mcuboot --sysbuild

--sysbuild 不能省略。它使构建从系统级入口处理 sysbuild.conf,同时包含应用与 MCUboot。若改用允许列表中的 nRF52840 DK,可采用以下板型对应的形式:

west build -b nrf52840dk/nrf52840 samples/sysbuild/with_mcuboot --sysbuild

第二条是根据同标签板型清单补充的例子,不是声称本次在该硬件上跑过。两条命令是二选一,切换板型时应使用独立或干净的构建目录,避免沿用与新板型不匹配的缓存。

构建后应检查系统构建信息是否同时包含应用与 mcuboot 两个域,各自都有对应的构建输出。检查生成的 ELF,以及目标配置启用的 BIN、HEX 等格式和烧录所用镜像,不要只看到一个应用 ELF 就认定引导镜像已经部署。具体路径、输出格式与分区布局依目标板和构建配置确定,本篇没有把它们写成所有硬件都相同的固定路径。

原文的操作步骤止于构建命令与运行输出,并未给出一套通用烧录命令。实际烧录须遵循所选开发板和 runner 的文档,确认调试器、Flash 分区和镜像集合一致。本文因此不凭空补一条面向所有板型的烧录命令。

从控制台判断 MCUboot 与应用是否依次启动

原 README 给出的历史输出如下,完整保留以说明输出结构:

*** Booting Zephyr OS build v3.2.0-rc3-209-gdcf4201d3573  ***
*** Booting Zephyr OS build v3.2.0-rc3-209-gdcf4201d3573  ***
Address of sample 0xc000
Hello sysbuild with mcuboot! nrf52840dk

第一条 Booting Zephyr OS build 来自 MCUboot,后面的启动信息、地址与问候来自 with_mcuboot 应用。这个顺序用于理解“引导程序先运行,再进入应用”。

输出中的 v3.2.0-rc3...、0xc000 和较短的 nrf52840dk 是原文保存的旧示例,不是 Zephyr 4.4.0 的实际运行记录。不要要求新构建逐字输出同一版本或同一地址。应用地址应与所选板型的实际分区及链接结果一致;本次未读取真实设备 Flash,也未验证某一地址正确。

同版 sample.yaml 的控制台验收使用多行匹配,关注两条应用消息:

Address of sample(.*)
Hello sysbuild with mcuboot!(.*)

这说明示例自动化测试核对的是应用确实到达预期输出位置,而不是把历史版号、板名或地址写死。自行验收时,除了看见这些文字,还应结合当前构建版本、镜像部署情况和实际地址来判断,避免把上一次刷入设备的旧固件输出误当成新构建结果。

静态审核发现与运行限制

本次核对了所有示例配置、完整应用源码和构建文件,修正了 README 对模式配置文件的过时归属,并明确标注旧运行输出。源码中的格式字符串是固定字面量,参数类型与转换说明相符;没有发现该范围内的外部输入注入点或明文密钥。但这段打印程序本身不能证明整个引导链、签名校验、降级防护和更新策略都已安全验证。

示例启用 CONFIG_MCUBOOT_DOWNGRADE_PREVENTION 不等于完成生产级防回滚方案;示例的默认签名配置也不能当作生产密钥管理方案。生产系统需要单独管理签名密钥和相应验证配置,并根据所选升级模式检查分区、断电恢复与版本策略。本篇不生成密钥、不替换签名配置,也不宣称做过这类安全测试。

本文只进行安全的静态审核,没有安装 SDK、更新工作区模块、执行 CMake/west、编译、签名、烧录或连接硬件,也没有修改网络。实际构建与板上启动仍需在匹配环境中验证,不能将文中的预期观察项登记为已通过结果。

来源与许可

应用源码原始版权为 © 2022 Nordic Semiconductor,示例源码和 CMake 文件标注 Apache-2.0。完整许可证在文末公开保留,并可查阅 Zephyr v4.4.0 LICENSE。第三方模块应以各自许可为准。中文译写、配置差异说明和原创图属于本次整理;全文译写与配图由未完纪整理制作,不把软件许可证泛化成对所有外部内容的许可。
