整理自 StarRocks 官方中文文档《自动化集群快照》，维护方：StarRocks 文档团队。本文固定核对 branch-3.5 文档；集群快照从 v3.4.2 起支持，在该版本文档中仍标记为 Beta，且只适用于存算分离集群。全文已于 2026-10-05 核对，下面的 SQL、Shell 和 YAML 只做静态审查，没有连接数据库或执行恢复。

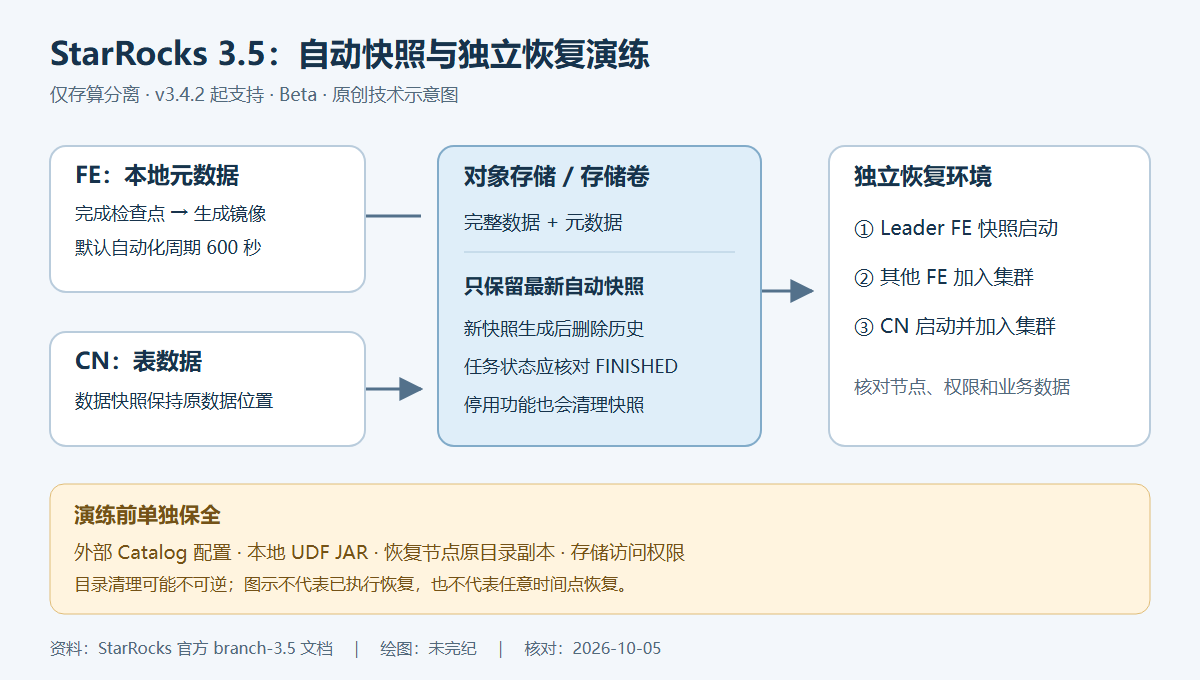

要恢复一个存算分离集群，仅仅留住表数据还不够。CN 管理的数据已经放在对象存储中，但 FE 保存的目录、用户、权限以及导入任务等元数据仍在本地。自动化集群快照的作用，就是把恢复所需的元数据也保存到存储卷，使完整的集群状态有机会在故障后重新组装起来。
先明确快照能保存什么
集群快照记录某一时刻的集群状态，覆盖 Catalog、数据库、表、用户及权限、导入任务等对象。外部依赖并不自动包含在内，例如 external catalog 使用的配置文件和放在本地的 UDF JAR。因此，演练材料除了快照，还应有这些依赖的独立副本、适配当前版本的部署文件，以及能够访问存储卷的授权。
在这里，“自动化”有一个很具体的含义：系统持续维护紧随集群最新状态的一份快照。新快照生成后，历史快照会被删除，最终只保留一个。3.5 分支文档明确说明，快照任务只由系统触发，不支持手动创建。它不能替代能够回到多个历史时刻的备份链，也不能因为名称中有时间戳就被理解为任意时间点恢复。
灾难恢复的前提是数据和元数据本身仍然完整。云存储的备份和跨区域复制可以参与远程或跨区域灾备，但本文不会把“存储服务有这些功能”等同于“已经获得一致且可恢复的副本”。实际演练必须同时检查副本、访问权限与外部依赖。
启用自动化快照并理解保存位置
自动化集群快照默认关闭。官方给出的启用语法如下，方括号表示可选部分，尖括号表示需要替换的值，不能原样执行：
ADMIN SET AUTOMATED CLUSTER SNAPSHOT ON
[STORAGE VOLUME <storage_volume_name>]storage_volume_name 指定快照使用的存储卷；不填写时使用默认存储卷。创建存储卷的方法见原站 CREATE STORAGE VOLUME 文档。恢复演练开始前，应确认该卷的地址和访问权限与准备保全的数据一致。
每次 FE 完成元数据检查点并生成新的元数据镜像后，系统会自动创建快照。名称格式是 automated_cluster_snapshot_{timestamp}。元数据快照保存在以下目录，而数据快照仍位于原始数据所在的位置：
/{storage_volume_locations}/{service_id}/meta/image/automated_cluster_snapshot_timestampFE 配置 automated_cluster_snapshot_interval_seconds 控制自动化周期，默认 600 秒，也就是 10 分钟。这个默认值描述触发周期，不能被写成灾难发生后必然只损失 10 分钟数据的保证；还需要观察任务是否完成，以及对象存储中的数据是否齐备。
分别检查快照和快照任务
快照清单和任务执行状态应分别查询。前者可看到最新快照，以及尚未清除的快照记录：
SELECT * FROM information_schema.cluster_snapshots;| 字段 | 含义 |
|---|---|
| snapshot_name | 快照名称 |
| snapshot_type | 快照类型；本篇锁定的 3.5 文档仅支持 automated |
| created_time | 快照创建时间 |
| fe_journal_id | FE 日志 ID |
| starmgr_journal_id | StarManager 日志 ID |
| properties | 用于尚未可用的功能 |
| storage_volume | 保存快照的存储卷 |
| storage_path | 快照存储路径 |

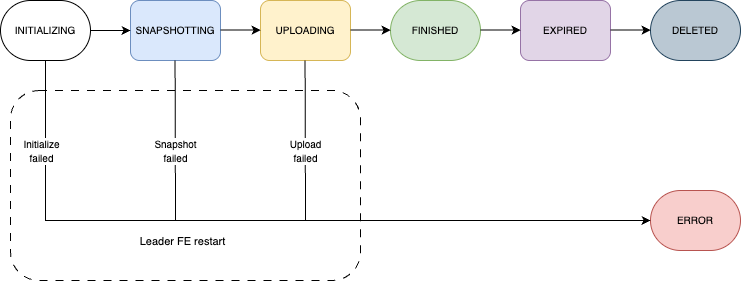

任务视图用于判断自动化过程走到哪一步，以及失败时的具体信息：
SELECT * FROM information_schema.cluster_snapshot_jobs;| 字段 | 含义 |
|---|---|
| snapshot_name | 对应快照名称 |
| job_id | 任务 ID |
| created_time | 任务创建时间 |
| finished_time | 任务结束时间 |
| state | INITIALIZING、SNAPSHOTING、FINISHED、EXPIRED、DELETED 或 ERROR |
| detail_info | 当前阶段的具体进度 |
| error_message | 错误信息（如果有） |
注意状态值 SNAPSHOTING 的拼写应按接口原样使用。看到任务创建并不等于快照可恢复；应保存对应任务的完成状态、存储路径与日志 ID，再以恢复演练验证使用它的结果。本文没有任何真实查询输出，表格列出的是接口字段。
关闭功能会清理历史快照
ADMIN SET AUTOMATED CLUSTER SNAPSHOT OFF以上语句并非无损暂停按钮。原文明确说明，禁用自动化集群快照会自动清除历史快照。不要把它安排成“先停止写入快照，再研究恢复”的通用准备步骤。确有关闭需求时，先明确将失去哪些恢复材料，并按自己的备份方案保全所需副本；本次写稿没有执行此语句。
在独立环境恢复 Leader、其他 FE 与 CN
以下保留原文的恢复顺序，并补充演练保护说明。应先准备同版本的恢复节点、完整的快照和数据副本、存储权限及外部配置。恢复环境的地址、目录和存储路径必须经过人工核对，避免把示例中的目录清理动作误用到仍承担业务的原集群。
-
必要时调整存储卷与恢复配置。如果保存快照的存储位置已经改变，必须把原存储路径下的所有文件复制到新路径，并修改 Leader FE 的
fe/conf/cluster_snapshot.yaml。仅移动元数据镜像而遗漏原始数据文件，不满足原文的恢复前提。模板见下一节。 -
启动 Leader FE。使用集群快照模式：
./fe/bin/start_fe.sh --cluster_snapshot --daemon -
处理其他 FE。原文要求先清理其
meta目录，再使用 Leader 的地址和 edit-log 端口启动。本文不提供可直接粘贴的删除命令；先停止待恢复节点、保存原目录的可恢复副本，并再次确认它属于本次独立演练节点。确认完成后才进入原文的启动步骤：./fe/bin/start_fe.sh --helper <leader_ip>:<leader_edit_log_port> --daemon按照角色把节点加入集群：
-- 添加 Follower 节点： ALTER SYSTEM ADD FOLLOWER "<follower_host>:<follower_edit_log_port>"; -- 添加 Observer 节点： ALTER SYSTEM ADD OBSERVER "<observer_host>:<observer_edit_log_port>"; -
处理 CN。原文要求先清理 CN 的
storage_root_path目录，再启动 CN。这里同样必须确认目标是独立恢复节点，先保全原有文件，不能把路径清理套用到任意运行中的目录。./be/bin/start_cn.sh --daemon随后将 CN 加入集群：
ALTER SYSTEM ADD COMPUTE NODE "<cn_host>:<cn_heartbeat_service_port>";
如果第一步修改了 cluster_snapshot.yaml，新集群会按其中的信息重新配置节点和存储卷。完成启动后，应核对 Leader、Follower、Observer 与 CN 的实际地址及角色，确认它们属于计划中的恢复拓扑，并检查目录、权限、任务及关键业务查询。这里的核对是演练验收要求，不是本文已经完成的测试；节点成功启动也不能替代业务数据的完整性检查。
完整恢复配置模板及敏感字段
下列 YAML 保留 3.5 分支原文的结构、示例值和注释。IP、URI、访问键均是原文占位示例，不是可用凭证。它不是一份可以直接投入生产的配置：
# 要下载以进行恢复的集群快照的信息。
cluster_snapshot:
# 快照的 URI。
# 示例 1: s3://defaultbucket/test/f7265e80-631c-44d3-a8ac-cf7cdc7adec811019/meta/image/automated_cluster_snapshot_1704038400000
# 示例 2: s3://defaultbucket/test/f7265e80-631c-44d3-a8ac-cf7cdc7adec811019/meta
cluster_snapshot_path: <cluster_snapshot_uri>
# 存储快照的存储卷名称。您必须在 `storage_volumes` 部分中定义它。
# 注意：它必须与原始集群中的相同。
storage_volume_name: my_s3_volume
# [可选] 要恢复快照的新集群的节点信息。
# 如果未指定此部分，恢复后的新集群仅具有 Leader FE 节点。
# CN 节点保留原始集群的信息。
# 注意：不要在此部分中包含 Leader FE 节点。
frontends:
# FE 主机。
- host: xxx.xx.xx.x1
# FE edit_log_port。
edit_log_port: 9010
# FE 节点类型。有效值：`follower`（默认）和 `observer`。
type: follower
- host: xxx.xx.xx.x2
edit_log_port: 9010
type: observer
compute_nodes:
# CN 主机。
- host: xxx.xx.xx.x3
# CN heartbeat_service_port。
heartbeat_service_port: 9050
- host: xxx.xx.xx.x4
heartbeat_service_port: 9050
# 新集群中存储卷的信息。用于恢复克隆的快照。
# 注意：存储卷的名称必须与原始集群中的相同。
storage_volumes:
# S3 兼容存储卷的示例。
- name: my_s3_volume
type: S3
location: s3://defaultbucket/test/
comment: my s3 volume
properties:
- key: aws.s3.region
value: us-west-2
- key: aws.s3.endpoint
value: https://s3.us-west-2.amazonaws.com
- key: aws.s3.access_key
value: xxxxxxxxxx
- key: aws.s3.secret_key
value: yyyyyyyyyy
# HDFS 存储卷的示例。
- name: my_hdfs_volume
type: HDFS
location: hdfs://127.0.0.1:9000/sr/test/
comment: my hdfs volume
properties:
- key: hadoop.security.authentication
value: simple
- key: username
value: starrockscluster_snapshot_path 可指向具体快照目录，也可按原文例子指向 meta 路径；实际选择应与要恢复的材料对应。storage_volume_name 必须在 storage_volumes 中定义，而且存储卷名称必须与原集群一致。不要把 Leader FE 填进 frontends 列表。
节点信息段是可选的。原文提醒，未提供该部分时，新集群只有 Leader FE 的 FE 信息，CN 会保留原集群的信息。因此，演练中不能在省略节点段之后假定所有旧地址都已被替换。
静态审查发现的配置风险：S3 示例把 aws.s3.access_key 和 aws.s3.secret_key 放在 YAML 中。原文仅包含占位符，没有发现真实秘密；但若填入长期密钥，该文件、备份、工单和版本库都会成为泄露面。应限制配置文件访问权限，并根据环境按官方 AWS 认证说明选择合适的认证方式。不要把环境变量写成模板值后就假定 StarRocks 会自动插值；本篇没有核实这种行为。
HDFS 示例使用 hadoop.security.authentication: simple，这是示例配置，不提供强身份认证保障；不能把其中的 username: starrocks 当作安全认证机制。对于需要认证的 HDFS 环境，应使用经该环境和版本验证的认证配置，而不是直接复制这里的 simple 模板。
版本与编辑说明
本次已完整读取原始 3.5 网页，并与 StarRocks 官方仓库 branch-3.5 的中文文档源文件交叉核对。当前默认文档已指向较新版本，快照类型和部分恢复说明发生变化；本文没有把新版本中的 manual 类型写进 3.5 的接口表。
与原文相比，本稿重排了停用操作的位置，增加了独立恢复环境、目录保全、凭证与 HDFS 认证风险、节点验收及“未实测”的说明；技术语法与完整 YAML 示例保持可追溯。本文未执行 SQL、启动脚本、目录清理或数据复制，也未证明任何具体集群可以恢复。静态检查没有发现问题的部分，同样不等于不存在漏洞。
来源：StarRocks 3.5 集群快照文档。Copyright 2021-present StarRocks, Inc. All rights reserved. 官方仓库的 Apache License 2.0 文本与仓库 NOTICE 全文保留于本文末尾。本文为获授权的中文整理与安全批注版，原始内容归 StarRocks 及相关贡献者，原创示意图由未完纪绘制。
