用 SymPy 从 RLC 与 RC 电路推导状态空间模型-未完纪

状态空间方法把系统写成一组一阶微分方程，除了输入与输出之间的关系，还保留系统内部状态。对电路而言，电感电流和电容电压通常是自然的状态选择：它们与储能元件直接相关。

本文译写自 Electrical Problems using StateSpace。2026 年 10 月 05 日读取的页面标识为 SymPy 1.14.0，页脚更新日期为 2025 年 4 月 27 日；这不是本文首次发布日期。两个例子都做符号建模，没有数值仿真、频域绘图或实验验证。

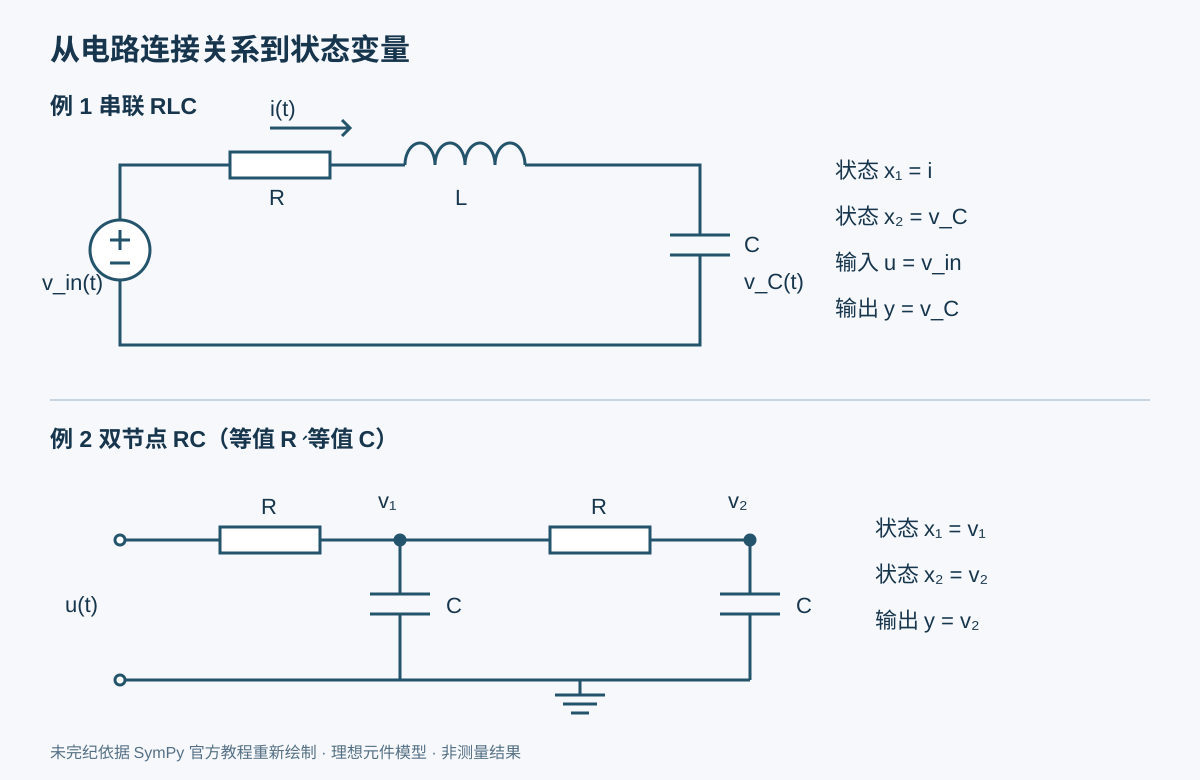

依据原文物理连接关系重新绘制的串联 RLC 和双节点 RC 电路。两个 RC 电阻均为 R、两个电容均为 C；示意图不代表测量结果。制图：未完纪。

统一表示：先选状态，再确定输入与输出

线性系统的状态空间形式是：

ẋ(t) = A x(t) + B u(t)
y(t) = C_out x(t) + D u(t)

其中，x(t) 是状态向量，u(t) 是输入向量，y(t) 是输出向量。矩阵 A 描述状态之间的动态关系，B 描述输入怎样作用于状态，C_out 选择或组合要观测的状态，D 描述输入到输出的直接通道。

命名整理：原文同时用字母 C 表示电容量和输出矩阵，Python 代码也会把变量 C 从符号重新绑定为矩阵。本稿在公式中仍用 C 表示电容量，而将输出矩阵写为 C_out，Python 中电容量变量写为 C_cap。这只是命名修订，不改变模型。以下矩阵内含除法，物理模型要求相关电阻、电感、电容非零；实际无源元件通常取正值。

例一：串联 RLC 电路

电阻 R、电感 L 和电容 C 串联，输入是电压 v_in(t)。取电感电流 i(t) 与电容电压 v_C(t) 为状态，输出为电容电压。

从基尔霍夫电压定律得到电流方程

沿图中回路应用基尔霍夫电压定律（KVL），输入电压等于三个元件电压之和：

v_in(t) = R i(t) + L di(t)/dt + v_C(t)

把电流导数单独移到等式左侧，得到：

di(t)/dt = -(R/L) i(t) - (1/L) v_C(t) + (1/L) v_in(t)

电容电压与流过电容的电流满足积分关系。原文写为 v_C(t) = (1/C) ∫ i(t) dt；若显式写出初值，等价的完整表达是：

v_C(t) = v_C(t₀) + (1/C) ∫[t₀,t] i(τ) dτ
dv_C(t)/dt = i(t)/C

初值写法是本文的说明性补充。对积分关系求导后，得到的电容状态方程与原文相同。

把两个一阶方程整理成矩阵

定义：

x₁(t) = i(t)
x₂(t) = v_C(t)
x(t) = [x₁(t), x₂(t)]ᵀ
u(t) = v_in(t)
y(t) = v_C(t) = x₂(t)

状态方程为：

ẋ₁(t) = -(R/L)x₁(t) - (1/L)x₂(t) + (1/L)u(t)
ẋ₂(t) = (1/C)x₁(t)

因此四个矩阵是：

A = [ -R/L   -1/L ]      B = [ 1/L ]
    [  1/C     0  ]          [  0  ]

C_out = [ 0  1 ]        D = [ 0 ]

A 是 2×2 矩阵，B 是 2×1 矩阵，C_out 是 1×2 矩阵，D 是 1×1 矩阵。输出只选取第二个状态，没有输入到电容电压的直接通道。把这些矩阵放回统一表达式，即得到整个串联 RLC 的状态空间模型。

用 SymPy 构造模型并改写为传递函数

下面保留原例的矩阵及转换调用，采用前述清晰命名，并把通配符导入改为显式导入。两项差异都不会改变方程：

from sympy import Matrix, symbols
from sympy.physics.control import StateSpace, TransferFunction

R, L, C_cap = symbols("R L C")
A = Matrix([[-R/L, -1/L], [1/C_cap, 0]])
B = Matrix([[1/L], [0]])
C_out = Matrix([[0, 1]])
D = Matrix([[0]])

ss = StateSpace(A, B, C_out, D)
tf = ss.rewrite(TransferFunction)[0][0]

状态空间对象所包含的四个矩阵应与上式一致。原文给出的符号显示结果如下；这是一段来源输出，不是本文执行代码得到的结果：

StateSpace(Matrix([
[-R/L, -1/L],
[ 1/C,    0]]), Matrix([
[1/L],
[  0]]), Matrix([[0, 1]]), Matrix([[0]]))

TransferFunction(1, C*L*s**2 + C*R*s + 1, s)

rewrite(TransferFunction) 返回按输出与输入排列的传递函数结构；该例只有一个输入、一个输出，因此取 [0][0]。对应的传递函数是：

V_C(s) / V_in(s) = 1 / (L C s² + R C s + 1)

这里的传递函数描述零初始条件下的输入输出关系。非零初始电流或电容电压造成的自由响应，应结合状态初值另行处理。检查这个结果时，要始终记住输出选的是电容电压；改变输出矩阵后，传递函数也可能改变。

例二：双节点 RC 网络

第二个电路包含两个相同的电阻 R 和两个相同的电容 C。输入电压 u(t) 经第一个电阻到节点 v₁(t)，第二个电阻连接 v₁(t) 与 v₂(t)；每个节点各有一个电容接地。取节点电压作为状态：

x₁(t) = v₁(t)
x₂(t) = v₂(t)

节点 v₁ 的电流平衡

应用基尔霍夫电流定律（KCL），把从节点流向输入端、流入本节点电容和流向第二节点的电流相加：

(v₁(t) - u(t))/R + C dv₁(t)/dt + (v₁(t) - v₂(t))/R = 0

代入状态变量并合并同类项：

(x₁(t) - u(t))/R + C dx₁(t)/dt + (x₁(t) - x₂(t))/R = 0
C ẋ₁(t) = -2x₁(t)/R + x₂(t)/R + u(t)/R
ẋ₁(t) = -2x₁(t)/(RC) + x₂(t)/(RC) + u(t)/(RC)

节点 v₂ 的电流平衡

第二个节点只有接地电容和通向第一个节点的电阻支路，因此：

C dv₂(t)/dt + (v₂(t) - v₁(t))/R = 0
C dx₂(t)/dt + (x₂(t) - x₁(t))/R = 0
C ẋ₂(t) = x₁(t)/R - x₂(t)/R
ẋ₂(t) = x₁(t)/(RC) - x₂(t)/(RC)

构造状态空间对象

输出定义为第二个节点电压，即 y(t)=v₂(t)=x₂(t)，所以矩阵为：

A = [ -2/(RC)   1/(RC) ]       B = [ 1/(RC) ]
    [  1/(RC)  -1/(RC) ]           [    0   ]

C_out = [ 0  1 ]               D = [ 0 ]

相应的 SymPy 代码如下。本例与原文一样省略 D 参数，状态空间对象显示的直接传递矩阵为零：

from sympy import Matrix, symbols
from sympy.physics.control import StateSpace

R, C_cap = symbols("R C")
A = Matrix([
    [-2/(R*C_cap), 1/(R*C_cap)],
    [1/(R*C_cap), -1/(R*C_cap)]
])
B = Matrix([[1/(R*C_cap)], [0]])
C_out = Matrix([[0, 1]])

ss = StateSpace(A, B, C_out)

原文的模型显示结果为：

StateSpace(Matrix([
[-2/(C*R),  1/(C*R)],
[ 1/(C*R), -1/(C*R)]]), Matrix([
[1/(C*R)],
[      0]]), Matrix([[0, 1]]), Matrix([[0]]))

两个对角项分别表示各节点电压自身的衰减，非对角项表示两个节点通过中间电阻耦合。输入只直接出现在第一条状态方程中，而输出取第二个节点。这也给了我们逐项对照电路与矩阵的检查方法。

代码整理与验证边界

原文把 Python 变量 C 重新赋为输出矩阵后，先前构造的 SymPy 表达式仍保留原来的电容量符号，所以原例可以显示出正确矩阵。但后续继续使用变量 C 时容易把矩阵当电容量。本文用 C_cap 与 C_out 消除歧义，并使用显式导入。这是可读性与维护性修订，没有添加数值参数或宣称性能改进。

本次仅静态核对 KVL/KCL、状态次序、矩阵维度、符号系数与来源输出。代码中的符号均由程序直接定义，没有读取不可信文本并送入求值器，也没有硬编码秘密、联网或文件操作。未安装或运行 SymPy；没有运行测试，也没有实物电路验证。静态核对没有发现这些具体问题，不代表代码或依赖不存在漏洞。

来源、参考文献与许可

本文为未完纪中文译写，示意图重新绘制。所引 SymPy 示例代码随项目采用 BSD 许可条件，文末附 SymPy 1.14 的 LICENSE 文本，保留版权、条件与免责声明。项目开源状态并不代表所有第三方材料均适用同一许可。
