用 Spark Structured Streaming 持续统计输入文本-未完纪

流式词频统计不必写成一套手工维护计数器的程序。Structured Streaming 把不断到达的数据看成持续追加行的输入表：先描述拆词与分组计数，再让 Spark 在新数据到来时增量更新结果。这个例子连接本地 TCP 文本服务，按行接收 UTF-8 文本，把累计词频输出到控制台。

本文完整翻译整理 Apache Spark 官方入门页的快速示例、编程模型、事件时间与容错说明，以 Python 路径展开；源页还提供 Scala、Java 与 R 的对应实现链接。2026 年 10 月 5 日读取的 latest 文档标题为 Spark 4.2.0，伴随脚本链接也指向 v4.2.0。本文没有安装 Spark、启动 Netcat 或运行示例，所有输出只作为文档示意。

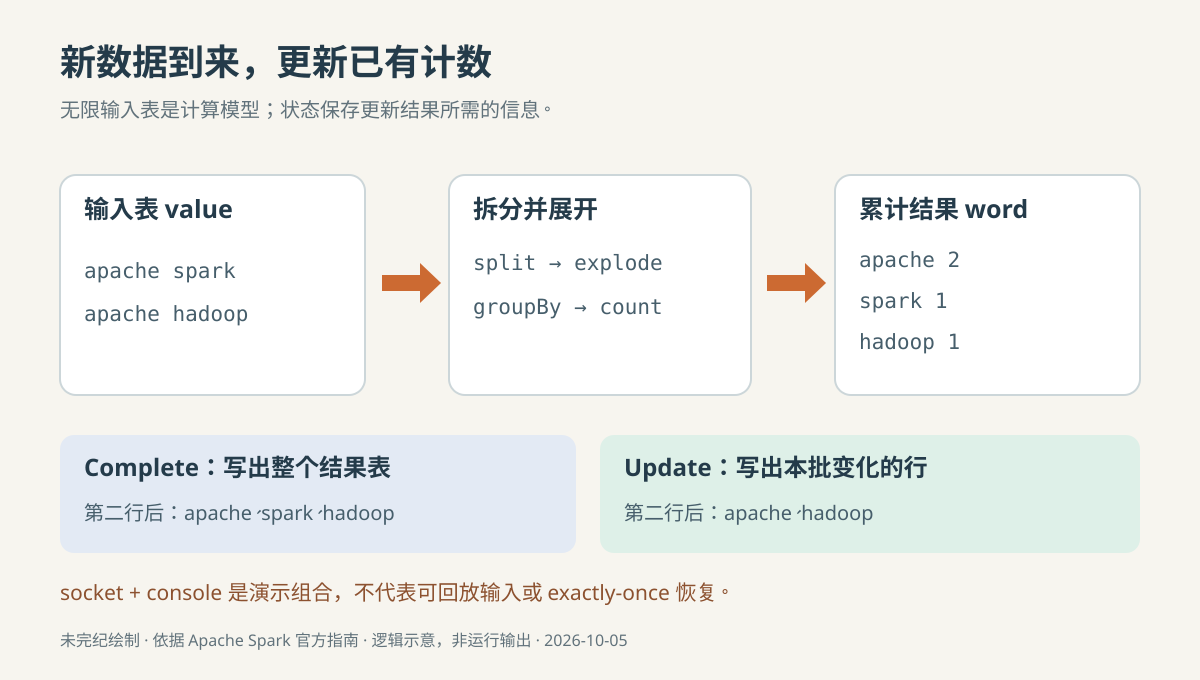

输入表、增量状态与输出模式。未完纪据 Apache Spark 官方模型绘制，不是运行截图。

先创建 SparkSession，再描述查询

SparkSession 是 Spark 功能的入口。通过 builder 指定应用名并调用 getOrCreate()，就能取得会话。原文片段没有硬编码执行 master；实际使用本地或集群资源取决于启动配置。

from pyspark.sql import SparkSession
from pyspark.sql.functions import explode, split

spark = (
    SparkSession.builder
    .appName("StructuredNetworkWordCount")
    .getOrCreate()
)

接着从 localhost:9999 读取 socket 数据，构造流式 DataFrame。它有一列名为 value 的字符串，每收到一行文本，就相当于向输入表追加一行。

lines = (
    spark.readStream
    .format("socket")
    .option("host", "localhost")
    .option("port", 9999)
    .load()
)

words = lines.select(
    explode(split(lines.value, " ")).alias("word")
)
wordCounts = words.groupBy("word").count()

split 把一行按空格切成数组，explode 把数组的每个元素变成独立一行，alias("word") 给结果列命名。最后按单词分组并计数，得到代表累计词频的流式结果表。此时只是定义变换，还没有开始接收和计算数据。

编者补充：这里是最小拆词规则，没有统一大小写、去标点或处理自然语言分词。多个空格、空行等输入也应按所用 split 语义评估。不要把它描述成通用中文分词或经过清洗的日志分析方案。

启动查询，并保持进程存活

通过 writeStream 配置输出。此例选择 complete，每次结果更新时向 console sink 写出当前完整结果表：

query = (
    wordCounts.writeStream
    .outputMode("complete")
    .format("console")
    .start()
)
query.awaitTermination()

start() 才真正启动后台流式计算；返回的 query 是正在运行的查询句柄。awaitTermination() 等待查询结束，防止主进程在查询活跃时直接退出。这不等于为程序增加重启恢复能力。

完整 Python 伴随脚本

下面保留官方 v4.2.0 脚本的执行逻辑。脚本读取主机和端口两个参数，参数数量错误时打印用法并退出；端口通过 int() 转换，没有额外实现友好的范围校验。示例来自 structured_network_wordcount.py，ASF 版权及许可见文末。

import sys
from pyspark.sql import SparkSession
from pyspark.sql.functions import explode
from pyspark.sql.functions import split

if __name__ == "__main__":
    if len(sys.argv) != 3:
        print("Usage: structured_network_wordcount.py <hostname> <port>", file=sys.stderr)
        sys.exit(-1)

    host = sys.argv[1]
    port = int(sys.argv[2])

    spark = SparkSession\
        .builder\
        .appName("StructuredNetworkWordCount")\
        .getOrCreate()
    # Create DataFrame representing the stream of input lines from connection to host:port
    lines = spark\
        .readStream\
        .format('socket')\
        .option('host', host)\
        .option('port', port)\
        .load()

    # Split the lines into words
    words = lines.select(
        # explode turns each item in an array into a separate row
        explode(
            split(lines.value, ' ')
        ).alias('word')
    )
    # Generate running word count
    wordCounts = words.groupBy('word').count()

    # Start running the query that prints the running counts to the console
    query = wordCounts\
        .writeStream\
        .outputMode('complete')\
        .format('console')\
        .start()

    query.awaitTermination()

该代码归 Apache Software Foundation 及贡献者，按 Apache License 2.0 提供；文末保留许可证全文与上游 NOTICE。正文代码不含执行结果。

本地演示的两个终端

原文在第一个终端使用 Netcat 作为数据服务：

nc -lk 9999

在 Spark 分发目录的第二个终端启动随附的 Python 示例：

./bin/spark-submit examples/src/main/python/sql/streaming/structured_network_wordcount.py localhost 9999

操作边界：这些是原文面向 Unix 类环境的命令。Netcat 的实现和选项在不同系统可能不同，nc -lk 9999 也可能监听多个网络接口；演示前须按本机实现将服务限制到回环接口或隔离网络，不向公网暴露这个无认证文本端口。若需强制 Spark 使用本机资源，可在确认版本后为 spark-submit 配置本地 master；这属于部署选择，不是原文已经验证的配置。Windows 用户不能假定当前系统已经提供 nc 或相同 shell 路径。

在 Netcat 终端依次输入以下两行：

apache spark
apache hadoop

按原文分成两批处理的示意，第一批累计结果是 apache=1、spark=1；第二批是 apache=2、spark=1、hadoop=1。实际批次编号、批次边界、显示顺序与时间取决于运行过程，两行也可能进入同一批。原文用“一秒”帮助说明刷新过程，但脚本没有显式设置一秒 trigger，不能据此保证严格每秒输出。

示意状态	word	count
处理第一行后	apache	1
处理第一行后	spark	1
处理第二行后	apache	2
处理第二行后	spark	1
处理第二行后	hadoop	1

原文展示差异：官方页面的控制台示意表头写成 value，而本次核对的 Python 脚本明确把列命名为 word，并按它分组。本稿依照该 Python 代码使用 word；上表是逻辑演示，不是我们执行后的屏幕输出。

“无限输入表”是模型，不是把所有历史输入留在内存

Structured Streaming 的核心是把实时数据流视为不断追加的输入表。查询定义仍类似批处理中的静态表查询，Spark 则把它作为增量查询执行。每当触发一次处理，就把新行纳入计算，并更新结果表；输出到外部系统的是按输出模式选定的结果。

在词频示例中，lines 是输入表，wordCounts 是结果表。Spark 接收新行后，把新的词频增量与已有累计值合并。它不会把整个无限输入表全部物化；处理后的原始输入可以丢弃，只保留更新结果所需的中间状态，例如每个词的累计次数。

编者补充：“最少必要状态”不等于有界内存。这个无窗口累计词频查询需要保留所有已出现词的计数，词种持续增长时，状态也会增长。它适合说明模型，不能据此声称可以无限量处理任意输入而无需状态治理。

Complete、Append 与 Update 分别写出什么

输出模式	写出内容	适用边界
Complete	本次更新后的整个结果表	接收端决定如何处理整表输出；本例使用这一模式。
Append	上次触发后新追加到结果表的行	只适用于已有结果行不会再变化的查询；不能直接用于本例不断改变的累计计数。
Update	上次触发后发生改变的结果行	从 Spark 2.1.1 开始提供；无聚合时与 Append 等价。

输出模式受查询类型和 sink 支持情况共同约束。例中第二行到来时，apache 的计数改变、hadoop 是新词，而 spark 没有改变：Complete 会输出三者，Update 关注新增或更新行。这里没有把代码改成另一种模式并声称实测成功。

事件时间与迟到数据

事件时间是数据本身携带的发生时间，不是 Spark 收到它的时间。统计物联网设备每分钟产生的事件数时，通常希望按设备事件发生时间分组。在表模型中，事件时间就是一列，时间窗口聚合便是围绕这一列的特殊分组；滑动窗口中，一行可能属于多个窗口。

同一类查询可以作用于已经收集好的静态日志，也可以作用于实时流。数据即使晚于预期到达，Spark 仍可以更新旧聚合。为了控制中间状态，需要明确什么时候可以清理旧窗口。原文指出 Spark 从 2.1 开始支持 watermark，用于声明迟到阈值并帮助清理状态；具体窗口与水位线规则应继续阅读官方窗口操作章节。本例没有事件时间字段、窗口或 watermark，不能把这些能力当作已经启用。

容错语义取决于源、引擎与接收端共同配合

Structured Streaming 的设计目标之一是端到端 exactly-once 语义。原文描述的前提是：源能够用 offset 等位置标记跟踪读取进度，并支持重放；引擎通过 checkpoint 和预写日志记录每次触发所处理的范围；sink 具备幂等处理重放的能力。这些条件配合，才能在重启或重处理之后维持目标语义。

本例不具备这些生产前提。socket 源不提供可重放的持久输入，console sink 用于观察，不是持久业务输出，脚本也没有显式设置持久 checkpoint 位置。不能因为看到累计结果，就宣称已验证端到端 exactly-once 恢复。若转向生产，需要选择匹配的源与 sink、可靠检查点存储和恢复策略，并进行失败恢复测试。

静态审核结论与来源

本次只逐行检查代码与命令：没有发现硬编码秘密，也没有发现把网络文本拼成 shell 命令或动态执行代码的路径；并不等于不存在其他漏洞。现实风险包括无认证的演示端口、任意指定连接目标、恶意超大输入或高基数词导致资源压力，以及控制台可能暴露输入内容。运行应限于隔离演示数据，不能接入生产日志或敏感文本。

原文：Structured Streaming Programming Guide — Getting Started。伴随脚本：v4.2.0 Python 示例。作者归属：Apache Software Foundation 及 Spark 贡献者；未完纪中文翻译整理。正文调整了结构、统一 Python 列名，并增加已标识的版本与静态审核说明。
