管理 QEMU 磁盘镜像、快照和启动顺序

NVMe 绑定/解绑步骤：源文示例与硬件风险

源文要求在 QEMU 启动前把宿主 PCI 控制器绑定到 vfio-pci；QEMU 获得独占控制器。以下保留原始示例，以便识别操作链。不要在未确认设备身份、IOMMU 分组、挂载/使用状态及带外恢复手段时执行：解绑可能令宿主磁盘立即不可用。示例中的 PCI 地址与 1102:0002 仅是源页示例，不是通用 NVMe 控制器：

# modprobe vfio-pci
# lspci -n -s 0000:06:0d.0
06:0d.0 0401: 1102:0002 (rev 08)
# echo 0000:06:0d.0 > /sys/bus/pci/devices/0000:06:0d.0/driver/unbind
# echo 1102 0002 > /sys/bus/pci/drivers/vfio-pci/new_id
qemu-system-x86_64 -drive file=nvme://HOST:BUS:SLOT.FUNC/NAMESPACE
# alternative property form:
qemu-system-x86_64 -drive file.driver=nvme,file.device=HOST:BUS:SLOT.FUNC,file.namespace=NAMESPACE

HOST:BUS:SLOT.FUNC 是实际宿主 PCI 地址，namespace 从 1 开始。运行前必须确认控制器未服务宿主文件系统/其它 VM，且能够恢复原驱动。本稿只做静态审阅，没有运行 modprobe、写 sysfs 或操作任何 PCI 设备。

SSH 远程镜像

源页支持 URI 与驱动属性两种形式；远端须实现 SFTP server，端口缺省 22，认证使用 ssh-agent：

qemu-system-x86_64 -drive file=ssh://[USER@]SERVER[:PORT]/PATH[?host_key_check=HOST_KEY_CHECK]
qemu-system-x86_64 -drive file.driver=ssh[,file.user=USER],file.host=SERVER[,file.port=PORT],file.path=PATH[,file.host_key_check=HOST_KEY_CHECK]

host_key_check=yes 默认使用 known_hosts；设为 no 会关闭主机密钥校验，不应使用。固定 SHA-256 指纹时按源页用冒号分隔的十六进制格式配置。原文从已知 host 项提取 base64 key 并计算摘要：

for key in `grep 10.33.8.112 known_hosts | awk '{print $3}'`
do
  echo "$key" | base64 -d | sha256sum
done

同一主机名可能有多把不同算法 key；必须选中与协商算法相符的一条。源命令会打印多个候选，不可取第一行盲目固定；不要把不可信输入串进 shell。SSH 服务不支持 fsync 时，QEMU 不能保证 flush 持久化；连接在写操作中断可能损坏镜像。源文示例警告：warning: ssh server ssh.example.com:22 does not support fsync。新版本 libssh/OpenSSH 才有相关 fsync 支持。

文件锁、共享写与显式禁锁

默认锁用于阻止 QEMU/工具之间冲突访问；Linux 文件协议优先 OFD，必要时可退到 POSIX。共享存储迁移时 QEMU 交接锁。多 VM 共享镜像要用设备 share-rw=on 且客户机中有能协调并发的集群文件系统；只标记 share-rw 并不能让任意格式具备安全共享写。

源文确实列出关闭锁的语法，现保留作诊断/兼容示例并标成高风险：

-blockdev driver=qcow2,file.filename=/path/to/image,file.locking=off,file.driver=file

禁锁会撤掉并发保护，误开相同镜像可能损坏数据；不要把它当常规解决方案。优先保证单写者，并用 lslocks 查看 QEMU 持有的镜像锁。

来源与许可：Disk Images 与 bootindex 页均是 QEMU 11.1.50、GNU GPL version 2；保留 QEMU 文档贡献者归属及无担保声明，说明中文编译和安全注释是修改。命令都只是刊载的静态文本，未操作存储/主机。版本变化可能改变旧协议/选项行为。

源文完整命令与输出对照

以下保留两篇官方手册的原始示例及历史输出，供核对，不是已验证操作指南。NVMe解绑、禁锁、物理盘和iSCSI设置均可能损坏数据或改变访问范围；实际环境必须独立核验。指纹是原文公开示例，不是私钥；字符串口令是占位值。正文对SSH管道$key加引号属于编辑修订，原始形式在下方保留。

源文片段 1

qemu-img create myimage.img mysize

源文片段 2

(qemu) info snapshots
Snapshot devices: hda
Snapshot list (from hda):
ID        TAG                 VM SIZE                DATE       VM CLOCK
1         start                   41M 2006-08-06 12:38:02   00:00:14.954
2                                 40M 2006-08-06 12:43:29   00:00:18.633
3         msys                    40M 2006-08-06 12:44:04   00:00:23.514

源文片段 3

qemu-system-x86_64 linux.img -hdb fat:/my_directory

源文片段 4

qemu-system-x86_64 linux.img -fda fat:floppy:/my_directory

源文片段 5

qemu-system-x86_64 linux.img -fda fat:floppy:rw:/my_directory

源文片段 6

qemu-system-x86_64 linux.img -hdb nbd://my_nbd_server.mydomain.org:1024/

源文片段 7

qemu-system-x86_64 linux.img -hdb nbd+unix://?socket=/tmp/my_socket

源文片段 8

qemu-nbd --socket=/tmp/my_socket my_disk.qcow2

源文片段 9

qemu-nbd --socket=/tmp/my_socket --share=2 my_disk.qcow2

源文片段 10

qemu-system-x86_64 linux1.img -hdb nbd+unix://?socket=/tmp/my_socket
qemu-system-x86_64 linux2.img -hdb nbd+unix://?socket=/tmp/my_socket

源文片段 11

qemu-system-x86_64 -cdrom nbd://localhost/debian-500-ppc-netinst
qemu-system-x86_64 -cdrom nbd://localhost/openSUSE-11.1-ppc-netinst

源文片段 12

qemu-system-x86_64 linux.img -hdb nbd:my_nbd_server.mydomain.org:1024
qemu-system-x86_64 linux2.img -hdb nbd:unix:/tmp/my_socket
qemu-system-x86_64 -cdrom nbd:localhost:10809:exportname=debian-500-ppc-netinst

源文片段 13

iscsi://[<username>[%<password>]@]<host>[:<port>]/<target-iqn-name>/<lun>

源文片段 14

export LIBISCSI_CHAP_USERNAME=<username>
export LIBISCSI_CHAP_PASSWORD=<password>
iscsi://<host>/<target-iqn-name>/<lun>

源文片段 15

-iscsi initiator-name=iqn.qemu.test:my-initiator

源文片段 16

-iscsi header-digest=CRC32C|CRC32C-NONE|NONE-CRC32C|NONE

源文片段 17

[iscsi]
  user = "CHAP username"
  password = "CHAP password"
  initiator-name = "iqn.qemu.test:my-initiator"
  # header digest is one of CRC32C|CRC32C-NONE|NONE-CRC32C|NONE
  header-digest = "CRC32C"

源文片段 18

[iscsi "iqn.target.name"]
  user = "CHAP username"
  password = "CHAP password"
  initiator-name = "iqn.qemu.test:my-initiator"
  # header digest is one of CRC32C|CRC32C-NONE|NONE-CRC32C|NONE
  header-digest = "CRC32C"

源文片段 19

cat >iscsi.conf <<EOF
[iscsi]
  user = "me"
  password = "my password"
  initiator-name = "iqn.qemu.test:my-initiator"
  header-digest = "CRC32C"
EOF

qemu-system-x86_64 -drive file=iscsi://127.0.0.1/iqn.qemu.test/1 \
  -readconfig iscsi.conf

源文片段 20

tgtd --iscsi portal=127.0.0.1:3260
tgtadm --lld iscsi --op new --mode target --tid 1 -T iqn.qemu.test
tgtadm --lld iscsi --mode logicalunit --op new --tid 1 --lun 1 \
    -b /IMAGES/disk.img --device-type=disk
tgtadm --lld iscsi --mode logicalunit --op new --tid 1 --lun 2 \
    -b /IMAGES/cd.iso --device-type=cd
tgtadm --lld iscsi --op bind --mode target --tid 1 -I ALL

qemu-system-x86_64 -iscsi initiator-name=iqn.qemu.test:my-initiator \
  -boot d -drive file=iscsi://127.0.0.1/iqn.qemu.test/1 \
  -cdrom iscsi://127.0.0.1/iqn.qemu.test/2

源文片段 21

qemu-system-x86_64 -drive file=ssh://[USER@]SERVER[:PORT]/PATH[?host_key_check=HOST_KEY_CHECK]

源文片段 22

qemu-system-x86_64 -drive file.driver=ssh[,file.user=USER],file.host=SERVER[,file.port=PORT],file.path=PATH[,file.host_key_check=HOST_KEY_CHECK]

源文片段 23

host_key_check=sha256:04ce2ae89ff4295a6b9c4111640bdcb3297858ee55cb434d9dd88796e93aa795

源文片段 24

$ for key in `grep 10.33.8.112 known_hosts | awk '{print $3}'`
  do
    echo $key | base64 -d | sha256sum
  done
  6c3aa525beda9dc83eadfbd7e5ba7d976ecb59575d1633c87cd06ed2ed6e366f  -
  12214fd9ea5b408086f98ecccd9958609bd9ac7c0ea316734006bc7818b45dc8  -
  d36420137bcbd101209ef70c3b15dc07362fbe0fa53c5b135eba6e6afa82f0ce  -

源文片段 25

warning: ssh server ssh.example.com:22 does not support fsync

源文片段 26

# modprobe vfio-pci
# lspci -n -s 0000:06:0d.0
06:0d.0 0401: 1102:0002 (rev 08)
# echo 0000:06:0d.0 > /sys/bus/pci/devices/0000:06:0d.0/driver/unbind
# echo 1102 0002 > /sys/bus/pci/drivers/vfio-pci/new_id

# qemu-system-x86_64 -drive file=nvme://HOST:BUS:SLOT.FUNC/NAMESPACE

源文片段 27

qemu-system-x86_64 -drive file.driver=nvme,file.device=HOST:BUS:SLOT.FUNC,file.namespace=NAMESPACE

源文片段 28

-blockdev driver=qcow2,file.filename=/path/to/image,file.locking=off,file.driver=file

源文片段 29

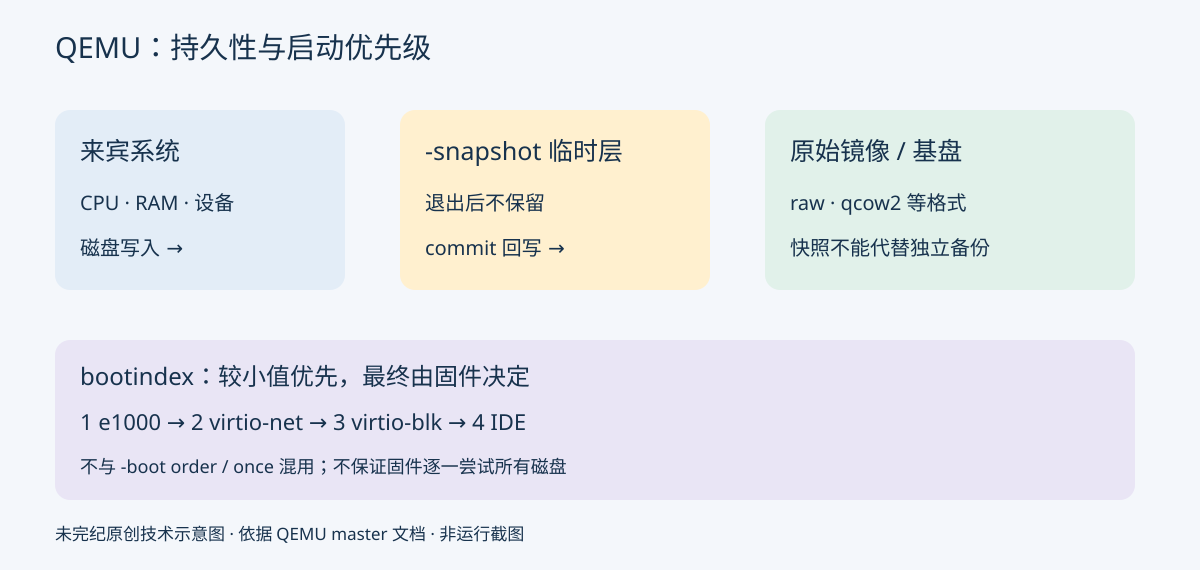

qemu-system-x86_64 -drive file=disk1.img,if=none,id=disk1 \
              -device ide-hd,drive=disk1,bootindex=4 \
              -drive file=disk2.img,if=none,id=disk2 \
              -device virtio-blk-pci,drive=disk2,bootindex=3 \
              -netdev type=user,id=net0 \
              -device virtio-net-pci,netdev=net0,bootindex=2 \
              -netdev type=user,id=net1 \
              -device e1000,netdev=net1,bootindex=1

QEMU是Fabrice Bellard的商标。两篇源手册明确QEMU与本手册采用GNU General Public License version 2；译文与安全注释已标明，原文链接保留。
