把外部 Make 静态库接入 Zephyr 固件构建-未完纪

已有 C 库可能只带 Makefile，而 Zephyr 应用由 CMake 驱动。把两者接起来，并不是把任意生成的 .a 文件放进链接命令：外部库必须使用与固件一致的目标编译器、归档器、架构和 ABI 选项，构建系统也必须知道归档何时生成、应用何时可以链接。

本文依据 Zephyr 4.4.0 的 External Library 示例完整页面及该版本伴随源码译编。发布维护方为 Zephyr Project，页面未见个人作者署名；C 源文件归属 Intel Corporation，Makefile 还包含 Nordic Semiconductor ASA 的版权声明。核对日期为 2026 年 10 月 5 日。本文采用的演练环境是 Linux、Zephyr 4.4.0、SDK 1.0.1 和 qemu_x86；这是固定的演练范围，本文未安装 SDK、构建或运行 QEMU。

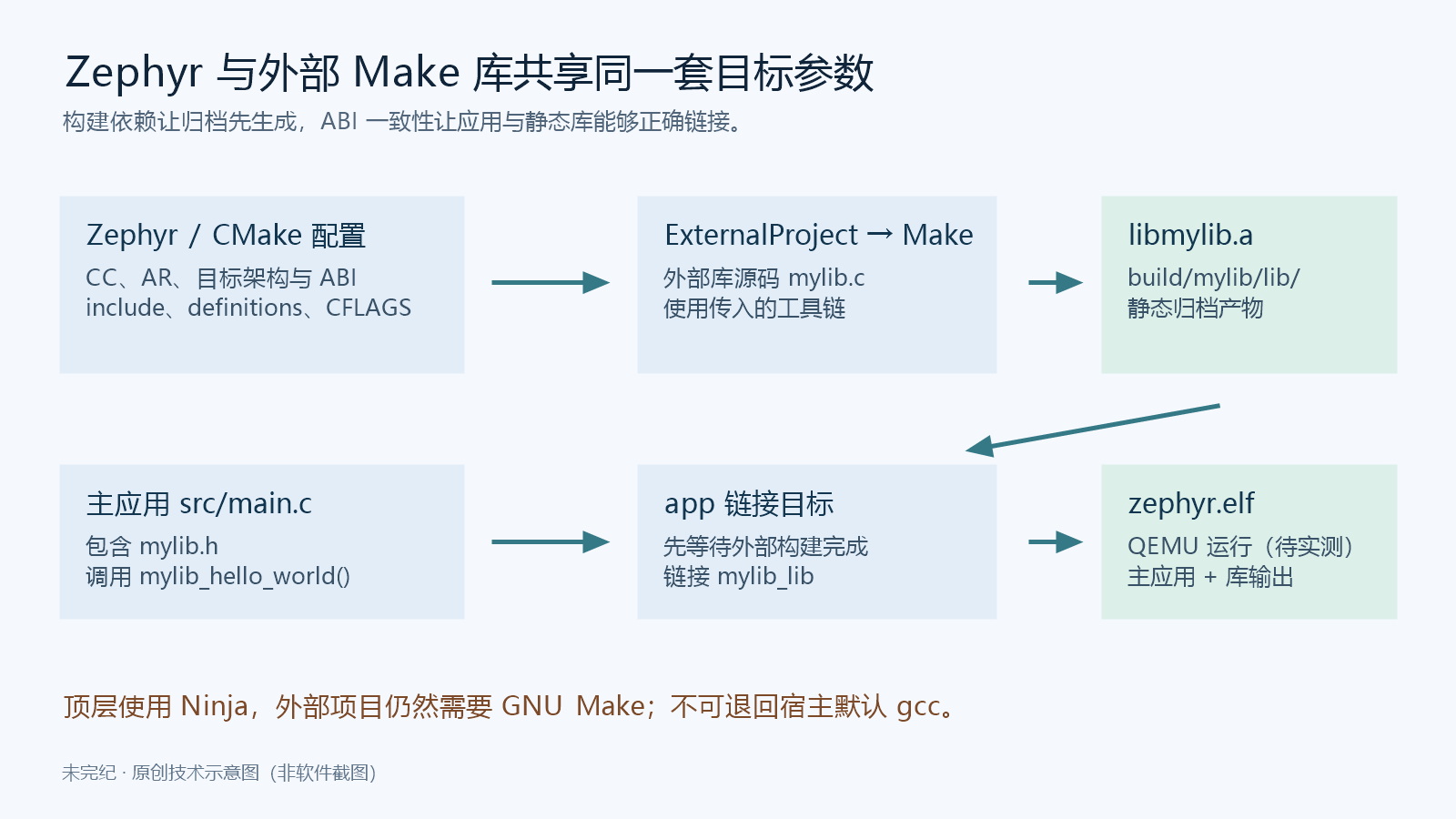

原创技术示意图：参数传递保证目标一致，构建依赖保证归档先于应用链接。

示例目录里的每个文件做什么

官方示例路径是 samples/application_development/external_lib。库源码已经随 Zephyr 仓库提交，本例不需要在构建时从网络下载业务代码或第三方包。

external_lib/
├── CMakeLists.txt
├── prj.conf
├── sample.yaml
├── src/main.c
└── mylib/
    ├── Makefile
    ├── include/mylib.h
    └── src/mylib.c

main.c 属于 Zephyr 应用，调用库公开的 mylib_hello_world()。库自己的 Makefile 负责把 mylib.c 编译成对象，再归档为 libmylib.a。顶层 CMake 使用 ExternalProject 驱动这个过程，并把结果包装为可链接的 imported library。

先把目标编译信息交给外部构建系统

以下是官方 CMakeLists.txt 的完整功能内容，英文说明注释整理为正文，其余命令与版本源文件保持一致。代码标记为 Apache-2.0。

# SPDX-License-Identifier: Apache-2.0
cmake_minimum_required(VERSION 3.20.0)
find_package(Zephyr REQUIRED HINTS $ENV{ZEPHYR_BASE})
project(external_lib)
target_sources(app PRIVATE src/main.c)

zephyr_get_include_directories_for_lang_as_string(       C includes)
zephyr_get_system_include_directories_for_lang_as_string(C system_includes)
zephyr_get_compile_definitions_for_lang_as_string(       C definitions)
zephyr_get_compile_options_for_lang_as_string(           C options)
if(DEFINED CMAKE_C_COMPILER_TARGET)
  set(target_flag "--target=${CMAKE_C_COMPILER_TARGET}")
endif()
set(external_project_cflags
  "${target_flag} ${includes} ${definitions} ${options} ${system_includes}"
)
include(ExternalProject)
set(mylib_src_dir   ${CMAKE_CURRENT_SOURCE_DIR}/mylib)
set(mylib_build_dir ${CMAKE_CURRENT_BINARY_DIR}/mylib)
set(MYLIB_LIB_DIR     ${mylib_build_dir}/lib)
set(MYLIB_INCLUDE_DIR ${mylib_src_dir}/include)

if(CMAKE_GENERATOR STREQUAL "Unix Makefiles")
  set(submake "$(MAKE)")
else()
  set(submake "make")
endif()
ExternalProject_Add(
  mylib_project
  PREFIX     ${mylib_build_dir}
  SOURCE_DIR ${mylib_src_dir}
  BINARY_DIR ${mylib_src_dir}
  CONFIGURE_COMMAND ""
  BUILD_COMMAND
  ${submake}
  PREFIX=${mylib_build_dir}
  CC=${CMAKE_C_COMPILER}
  AR=${CMAKE_AR}
  CFLAGS=${external_project_cflags}
  INSTALL_COMMAND ""
  BUILD_BYPRODUCTS ${MYLIB_LIB_DIR}/libmylib.a
)
add_library(mylib_lib STATIC IMPORTED GLOBAL)
add_dependencies(mylib_lib mylib_project)
set_target_properties(mylib_lib PROPERTIES
  IMPORTED_LOCATION ${MYLIB_LIB_DIR}/libmylib.a)
set_target_properties(mylib_lib PROPERTIES
  INTERFACE_INCLUDE_DIRECTORIES ${MYLIB_INCLUDE_DIR})
target_link_libraries(app PUBLIC mylib_lib)

四个 zephyr_get_…_for_lang_as_string 调用收集 C 编译所需的普通包含目录、系统包含目录、宏定义和编译选项；若设置了 CMAKE_C_COMPILER_TARGET，还传入 --target=…。这些字符串共同成为外部 Make 的 CFLAGS。

仅仅传递 CC 还不够。同一编译器可生成不同指令集、调用约定、浮点 ABI 或布局的目标文件；库与应用必须一致。也不能认为任何第三方库都接受全部 Zephyr 参数：原例注释明确指出，有的外部构建系统能够独立配置目标，有的与某些选项不兼容，需要过滤。集成真实库时，应核对它自己的构建接口，不要机械复制参数串。

ExternalProject 的目录、产物和依赖

mylib_src_dir 指向仓库里的库源码；mylib_build_dir 指向当前应用构建目录下的 mylib。虽然 BINARY_DIR 被设为源码根目录，让 Make 从那里启动，但传给 Make 的 PREFIX 把对象与归档输出放到构建树里。默认使用名为 build 的构建目录时，对应路径为：

build/mylib/obj/mylib.o
build/mylib/lib/libmylib.a
build/zephyr/zephyr.elf

CONFIGURE_COMMAND "" 和 INSTALL_COMMAND "" 分别跳过独立配置、安装阶段，本例直接调用 Make。BUILD_BYPRODUCTS 告诉上层构建系统该步骤会生成 libmylib.a，这对 Ninja 等需要明确依赖图的生成器尤其关键。

归档不是由 CMake 的普通源码目标直接生成，因此建立 STATIC IMPORTED GLOBAL 目标 mylib_lib，用 IMPORTED_LOCATION 指明归档路径，再通过 add_dependencies 要求 mylib_project 先完成。INTERFACE_INCLUDE_DIRECTORIES 把公开头文件目录传递给使用者，最后把 mylib_lib 链接到 app。产物声明、构建依赖和链接关系缺一不可：只写链接路径，容易遇到并行构建时文件尚未产生；只写构建依赖，又不会自动把库符号带进固件。

当顶层生成器是 Unix Makefiles 时，示例使用 $(MAKE) 递归调用子 Make；其他生成器则查找 PATH 里的 make。因此即便顶层用 Ninja，GNU Make 仍然是依赖。不要因为缺少 make 就改为用宿主默认 gcc 手工生成库。

外部 Makefile 如何编译和归档

官方 Makefile 如下。这里保留原版权与清理目标供静态理解；其中 clean 含递归删除，本文没有执行。实际使用前必须确认对象和归档路径都局限在专用构建目录。

#
# Copyright (c) 2017 Intel Corporation
# Copyright (c) 2022 Nordic Semiconductor ASA
#
# SPDX-License-Identifier: Apache-2.0
#
PREFIX ?= .
OBJ_DIR ?= $(PREFIX)/obj
LIB_DIR ?= $(PREFIX)/lib

ifeq ($(findstring Windows, $(OS)),Windows)
    DEL := rmdir /S /Q
    MKDIR := mkdir
else
    DEL := rm -rf
    MKDIR := mkdir -p
endif

all:
	-$(MKDIR) "$(OBJ_DIR)"
	-$(MKDIR) "$(LIB_DIR)"
	$(CC) -c $(CFLAGS) -MD -Iinclude src/mylib.c -o $(OBJ_DIR)/mylib.o
	$(AR) -rcs $(LIB_DIR)/libmylib.a $(OBJ_DIR)/mylib.o
clean:
	$(DEL) "$(OBJ_DIR)" "$(LIB_DIR)"

?= 提供可覆盖的默认路径；CMake 传入 PREFIX 后，对象与归档就在构建树中。Make recipe 行必须保留制表符缩进。$(CC) -c 仅编译，$(AR) -rcs 把对象放进静态归档；-Iinclude 提供库自身公开头文件目录，-MD 生成编译依赖文件。

这里有几个真实的工程边界。创建目录命令前面的减号会让 Make 忽略该命令的失败；它方便处理目录已存在的情形，也可能掩盖权限或路径问题。编译和归档行里的部分路径未加引号，带空格的工作目录或工具链路径可能解析错误。参数通过 Make 与 shell 解释，不能让不可信输入控制 CC、AR、CFLAGS 或目录变量。外部构建脚本必须作为能执行命令的代码审查，不能当成纯数据。

这个教学 Makefile 没有消费 -MD 生成的依赖文件，顶层 ExternalProject 也使用自己的步骤与时间戳管理。不要仅凭第一次构建成功，就推定每次修改都能正确触发增量构建。变更库头文件、源文件或编译参数后，应检查是否重建了库；可在新的专用构建目录做完整验证，避免复用陈旧归档。本文没有声称已复现某种增量构建失败。

应用和库的最小接口

以下三个源文件共同展示调用链，逻辑与官方版本一致：

/* mylib/include/mylib.h
 * Copyright (c) 2017 Intel Corporation
 * SPDX-License-Identifier: Apache-2.0
 */
#ifndef _MYLIB_H_
#define _MYLIB_H_
int mylib_hello_world(void);
#endif

/* mylib/src/mylib.c
 * Copyright (c) 2017 Intel Corporation
 * SPDX-License-Identifier: Apache-2.0
 */
#include "mylib.h"
#include <stdio.h>

int mylib_hello_world(void)
{
    printf("mylib says: Hello World!\n");
    return 0;
}

/* src/main.c
 * Copyright (c) 2017 Intel Corporation
 * SPDX-License-Identifier: Apache-2.0
 */
#include <zephyr/kernel.h>
#include <stdio.h>
#include <mylib.h>

int main(void)
{
    printf("Hello World!\n");
    mylib_hello_world();
    return 0;
}

prj.conf 只有下面一项，启用标准输出到控制台：

CONFIG_STDOUT_CONSOLE=y

这些 C 代码只打印固定字符串，没有接收不可信格式字符串、解析外部数据或使用秘密。这个结论仅覆盖所读到的极小例子，不是对任意接入库或整个 Zephyr 依赖树的安全背书。

固定环境下如何安排一次验证

在已完成官方工具链准备的隔离 Linux 工作区，确认使用 Zephyr 4.4.0 和预先核对的 SDK，并且 GNU Make 可用。选择一个新建、无个人文件和凭据的构建目录。本文演练采用 qemu_x86，因此可参考如下构建与运行命令；这些命令由本文针对该约定环境给出，不是本文执行记录：

west build -b qemu_x86 -d build_external_lib \
  samples/application_development/external_lib
west build -d build_external_lib -t run

这里显式指定了 build_external_lib，相应产物应是 build_external_lib/mylib/lib/libmylib.a 与 build_external_lib/zephyr/zephyr.elf。检查编译日志中的 CC、AR 和目标参数是否来自同一 Zephyr 配置，再检查最终固件是否调用了库。

官方 sample.yaml 把 native_sim 列为 integration platform，console harness 匹配以下两行。它支持理解示例预期验证什么，不能当作 qemu_x86 已实测通过的证据：

Hello World!
mylib says: Hello World!

如果没有库那一行，要区分“库没有构建”“没有链接”“主程序没有调用”“控制台输出配置不对”；如果链接报目标格式或 ABI 错误，先检查外部 Make 是否真正用了传入的目标编译器和选项，而不是先给链接器添加忽略错误的参数。替换真实库后还需检查许可证、依赖、内存分配模型、线程与中断上下文要求。

Windows 说明与版本边界

原文另有 Windows 提示：GNU Make 必须在 PATH 中，可以通过已有的 Chocolatey 安装方式 choco install make，或从 GnuWin32 的 Make 页面取得 Binaries 与 Dependencies 并解压到同一目录，也可以使用 Complete package 安装方式。本文保留这些信息作为来源说明，不把旧的预编译下载渠道自动视为今天的推荐环境；安装来源、版本与 PATH 中实际执行的文件须独立核对。本文主流程采用 Linux，未运行任何安装命令。

文档页面显示本页源码最后更新于 2024 年 8 月 23 日、生成于 2026 年 4 月 14 日；读取的是 4.4.0 固定页面。换用其他版本时，应重新核对 CMake 辅助函数、工具链与 board target 名称。SDK 1.0.1 是本文选定的组合，本文未独立完成其安装及兼容性实测。

来源、修改与许可

源页由 Zephyr Project members and individual contributors 维护，页面版权为 © 2015–2026。本文完整翻译源页说明，并基于 v4.4.0 示例源码扩展讲解 CMake、Makefile、头文件、实现、应用、配置与测试定义。代码保留 Intel / Nordic 归属并采用 Apache License 2.0；许可证全文见文末。Zephyr 许可说明列有其他组件例外，不能把本例许可推广到全部第三方库。

修改包括中文说明、格式整理、固定环境命令与安全边界，未声称改写后的示例经过执行测试；没有提供未经验证的“安全 Makefile 替代版”。原创配图不是软件运行截图。

原始示例测试定义与代码许可

这是v4.4.0原始 sample.yaml，其integration platform为native_sim；前文qemu_x86演练命令是编辑补充，仍未执行。来源：固定版本测试定义。

sample:
  name: External Library
tests:
  sample.app_dev.external_lib:
    integration_platforms:
      - native_sim
    tags: external
    harness: console
    harness_config:
      type: multi_line
      regex:
        - "Hello World!"
        - "mylib says: Hello World!"
