在 IntelliJ IDEA 中调试 Kotlin 协程与 Flow

在 IntelliJ IDEA 中调试 Kotlin 协程与 Flow

原文:Kotlin 官方的 协程调试教程(页面标注2025-03-10)与 Flow调试教程(页面标注2026-06-16)。两篇都使用 kotlinx-coroutines-core:1.11.0 示例版本。作者归属为 Kotlin Documentation Team;两个页面来源、代码版本和图像来源分别列明。

版本提醒:原文 Gradle 依赖示例为 kotlinx-coroutines-core:1.11.0;依赖、IDE和编译器行为会变化。原教程建议使用 -Xdebug 的说明早于当前 Kotlin 编译器 API 2.2 的实现变化:官方编译器源码说明,API 2.2 及以上通过 SpillingKt.nullOutSpilledVariable 处理死变量,调试器可替换其返回行为;-Xdebug 仅影响 API 2.2 以下的旧路径,并会停用引用清理,可能造成内存泄漏。不要把它当作现代项目修复或生产参数;先核对项目实际 compiler API 版本。

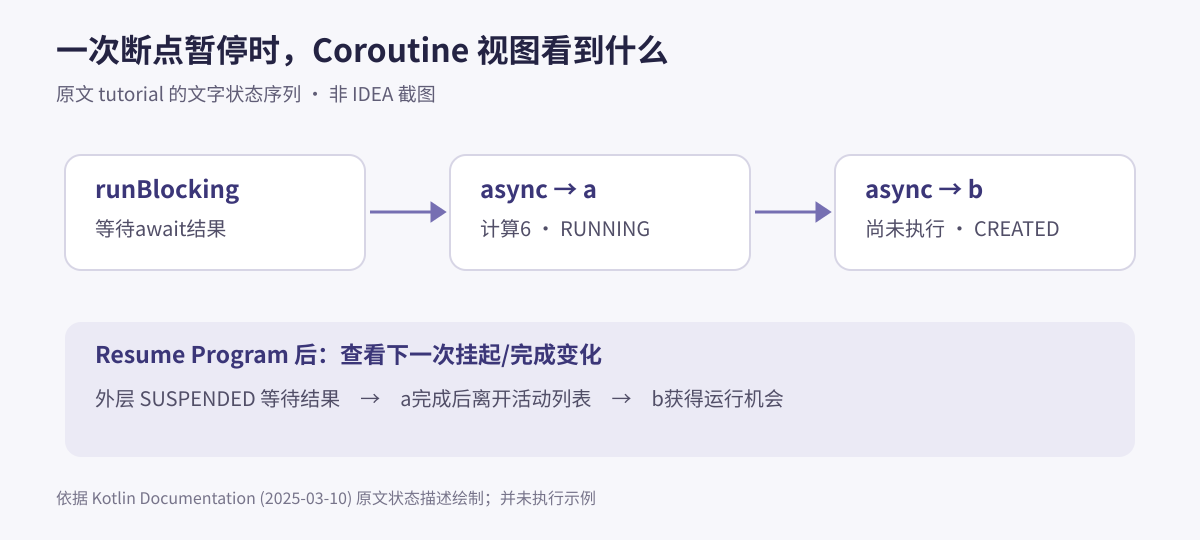

IntelliJ IDEA Coroutine 调试器状态示意:runBlocking等待两个async子任务,逐次Resume后a和b依次运行并完成;协程视图展示RUNNING、SUSPENDED、CREATED状态。
依据 Kotlin 原文教程中的协程状态变化重新绘制;不是IDE截图或执行记录。

本教程演示如何创建 Kotlin 协程并使用 IntelliJ IDEA 调试,读者需要先了解协程的基本概念。

准备协程示例

  1. 在 IntelliJ IDEA 打开 Kotlin 项目;如果尚无项目,先创建 Kotlin 项目。
  2. Gradle 项目通过依赖声明加入 kotlinx.coroutines。原文使用版本 1.11.0,Kotlin DSL 写法如下;Groovy DSL 见代码后的说明。
dependencies {
    implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.11.0")
}

Groovy DSL 相应写法为 implementation 'org.jetbrains.kotlinx:kotlinx-coroutines-core:1.11.0'。其他构建工具按 kotlinx.coroutines README 的安装说明配置。

  1. 打开 src/main/kotlin 下的 Main.kt。新建项目的示例通常已有 main 函数。
  2. 把 main 函数改成包含一个 runBlocking 协程作用域,并启动两个用来计算结果的 async 子协程:
import kotlinx.coroutines.*

fun main() = runBlocking<Unit> {
    val a = async {
        println("我正在计算答案的一部分")
        6
    }
    val b = async {
        println("我正在计算答案的另一部分")
        7
    }
    println("结果是 ${a.await() * b.await()}")
}

runBlocking 让 main 函数等待作用域中的协程完成;async 返回 Deferred 值,await 等待子协程结果。构建项目,确认IDE已成功编译代码,再运行调试。

后续 Flow 小节来自另一篇相邻的官方调试教程;它从 simple() 冷流的发送/收集开始,再用 buffer() 展示生产者与消费者分离。两个教程合并后覆盖协程与 Flow 两条主线。

观察协程调试状态

  1. 在两条 println 所在行设置断点。
  2. 通过顶部运行配置旁的 Debug 操作以调试模式启动。Debug 工具窗口打开后,Frames 显示调用帧,Variables 显示当前协程上下文变量,Coroutines 标签页则列出正在运行或挂起的协程。

在原文的示例中,Coroutines 视图此时显示三个协程:外层 runBlocking 是 RUNNING,两个 async 子协程尚为 CREATED。这里的“创建”表示子任务已建立,但尚未在断点处运行;具体呈现取决于调试位置及调度时机。

点 Resume Program 继续执行后,外层协程会等待需要的 Deferred 结果,视图中第一个协程呈 SUSPENDED;其中一个子协程正在计算值 a,状态为 RUNNING;另一个子协程仍是 CREATED,还没有计算 b。再次 Resume,a 的计算完成并从活动协程视图消失,b 接着运行。两个值到齐后,外层协程可以继续执行乘法并输出 42。

这项视图让调试者查看多个协程的状态,而不是把所有行为压成一个普通的线程调用栈。线程与协程不是一一对应关系,协程切换调度器时仍需结合 CoroutineContext、调用帧和变量面板理解现场。

“was optimized out” 表示什么

在 suspend 函数中,调试器可能在某些变量旁显示 was optimized out。这表示变量的生命周期已经结束,它在当前状态下不再存在,所以调试器无法显示其值;这会让协程调试更困难。

原教程写道,可以用 -Xdebug 禁用此行为。该建议只对应 API 版本低于 2.2 的旧编译器路径:启用后编译器不清理死变量引用,因此官方警告它可能造成内存泄漏,绝不可用于生产。对于 API 2.2 及以上,死变量清零改由 kotlin.coroutines.jvm.internal.SpillingKt.nullOutSpilledVariable 执行,调试器可在调试时替换其实现;-Xdebug 不再是解决当前优化变量可见性的通用手段。可对照 Kotlin 编译器的协程实现说明(滚动 master 源码,核对日期2026-10-08)。

用 Flow 调试发送、收集与 buffer

Flow 示例用慢速发射器与慢速收集器,观察同一协程内的挂起点。这里的 delay 模拟等待时间,会挂起协程但不阻塞线程;它不是 CPU 密集型计算的替代品。

import kotlinx.coroutines.*
import kotlinx.coroutines.flow.*

fun simple(): Flow<Int> = flow {
    for (i in 1..3) {
        delay(100)
        emit(i)
    }
}

fun main() = runBlocking {
    simple().collect { value ->
        delay(300)
        println(value)
    }
}

在 emit(i) 处设断点并以 Debug 运行;Frames 查看调用栈,Variables 查看当前值,Coroutines 列出运行或挂起的协程。原教程展示了 Flow 按顺序发射三个数字,并在 println(value) 处逐步暂停。这里的屏幕状态来自官方教程,而非本稿运行。

要让发射与收集并发,给流加上 buffer()。它在两者之间缓存已发射值,并运行一个独立协程承接发射端:

fun main() = runBlocking<Unit> {
    simple()
        .buffer()
        .collect { value ->
            delay(300)
            println(value)
        }
}

在 println(value) 处观察调试器:一帧中发射器为 RUNNING、收集器为 SUSPENDED;继续执行后,两者状态交换。断点会改变调度时序,示例状态不能外推为生产系统的精确时序。

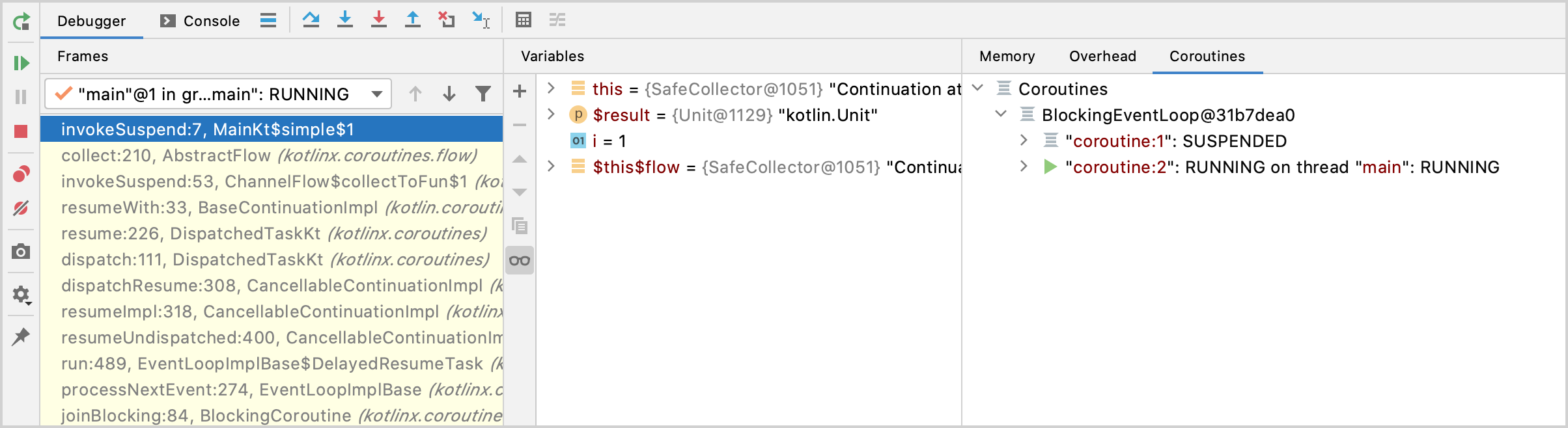

官方 IntelliJ IDEA 调试器截图:buffer后的 Coroutine 1 为 SUSPENDED,Coroutine 2 正在 main 线程运行;Variables面板显示 i=1
官方 Flow 调试教程的缓冲后协程状态之一:发射器运行、收集器挂起。图源 Kotlin Flow 调试教程,不是本稿运行记录。

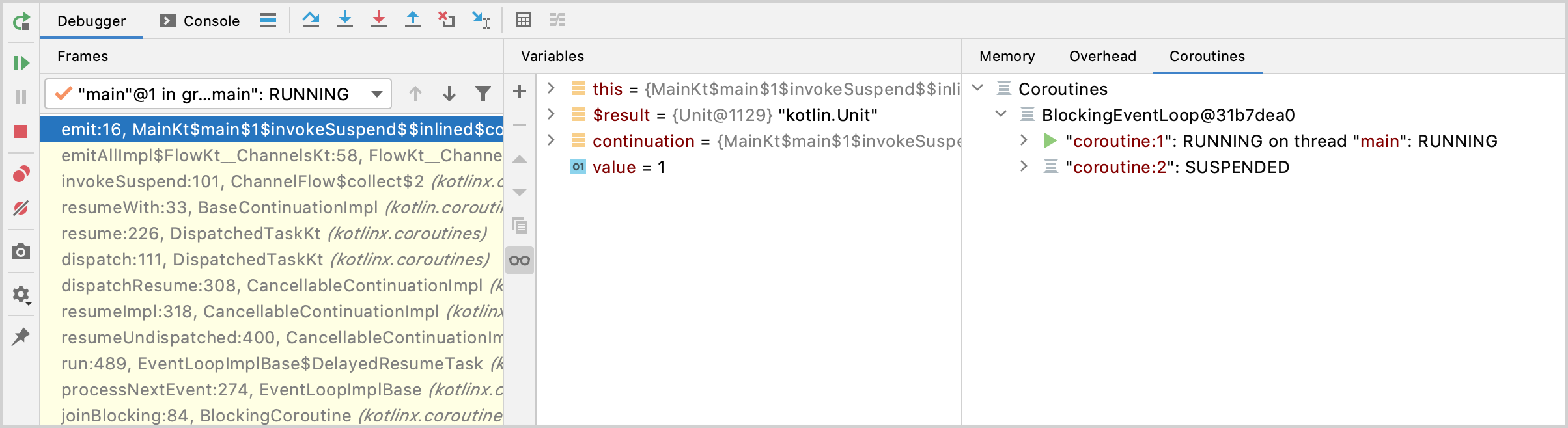

官方 IntelliJ IDEA 调试器截图:继续执行后 Coroutine 1 正在运行,Coroutine 2 为 SUSPENDED
继续执行后的另一状态:收集器运行、发射器挂起。图源同上;断点位置及调度会影响观察结果。

安全与代码审查:样例只启动计算整数的内存内协程,没有访问网络、磁盘或秘密。依赖版本和示例均为静态审读;没有在 IntelliJ 中构建或执行代码,因此本文不宣称调试器效果已实测。应使用项目锁定且官方支持的协程库版本。

作者与来源分别为:Kotlin Documentation Team 的 协程调试教程,以及 Flow 调试教程。Flow 页面编辑入口指向官方 kotlinx.coroutines 仓库;本文所用 Flow 代码片段与两张Flow调试截图按该仓库 Apache License 2.0 及 NOTICE 保留版权和许可文本。协程教程的公开页面未显示独立许可证声明,其中文译写依据另行授权制作;不把 Flow 仓库许可扩张解释为第一篇页面的许可。
