Matryoshka Embeddings:让同一个语义向量在多个维度下都能工作

普通稠密嵌入模型通常固定输出 768 或 1024 维向量。分类、聚类、语义搜索以及后续排序都使用这一完整表示。如果数据库有数千万条向量,维度就会直接影响存储、传输和相似度计算成本。Matryoshka Representation Learning(MRL,套娃表征学习)改变的是训练目标:让向量的前一部分也包含有用信息,从而允许部署时选择不同长度的向量。

本文译编自 Sentence Transformers 官方文档,原文作者为 Sentence Transformers 文档贡献者,实验模型由 Tom Aarsen 发布。核对日期为 2026 年 10 月 5 日;同时核对了原文链接的 NLI 训练脚本和 STSBenchmark 评估脚本。下文所有性能数字均来自原文,未在本次编辑中重新训练或复测。

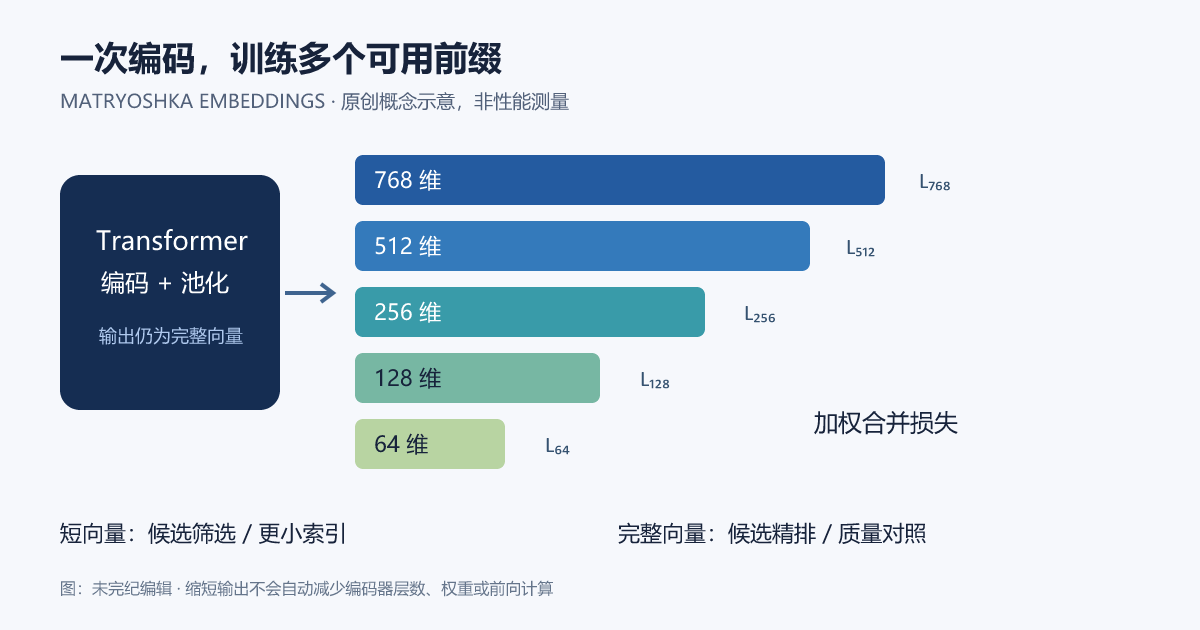

同一条768维嵌入依次取512、256、128与64维前缀,每个前缀在训练时分别计算损失,推理时按检索预算选择维度。
原创技术示意图:多个前缀共用一次完整编码结果;图形长度用于表达包含关系,不表示实测速度。

先分清节省发生在哪里

套娃向量可以用于“两阶段”检索:先用较短向量筛出候选,再用完整向量对候选重新排序。这是一种 shortlisting and reranking 方法;这里的重新排序仍可基于向量相似度,并不意味着自动引入 cross-encoder。另一个用途是按预算选择存储维度,在检索质量、向量库容量和计算量之间取得合适平衡。

截断输出不会自动缩小模型权重,也不会减少编码器的层数或前向计算。原文明确指出,单纯使用较短 Matryoshka 向量,不会使模型训练和编码推理更快、更省内存或更小。节省主要发生在生成向量之后的存储与处理阶段。如果候选生成只保存短向量,而精排需要完整向量,系统仍须另外保存、缓存或重新生成完整表示。

原文实验说明了什么

原文比较两个以 microsoft/mpnet-base 为基础的模型:mpnet-base-nli-matryoshka 使用 MatryoshkaLoss 包装 MultipleNegativesRankingLoss;mpnet-base-nli 只使用后者。两者都用 AllNLI 训练,AllNLI 由 SNLI 和 MultiNLI 合并而来;之后在 STSBenchmark 测试集上,分别使用不同向量长度评估 Spearman 相关性。

该实验中,Matryoshka 模型在各测试维度上的相关性都较高,随维度减少的下降也较缓。保留原始维度的约 8.3% 时,套娃模型保留了自身最高表现的 98.37%,普通模型为 96.46%。这两个比例的分母是各模型在该实验中的最大表现,而非一个通用的检索准确率。它们支持“短向量可能在此任务上保留较多质量”的判断,不能直接推导出任何语料、语言或向量数据库都会获得相同收益。

把同一损失应用于多个前缀

MRL 的训练方法很直接。假设模型输出 768 维向量,可对 768、512、256、128、64 等前缀分别计算同一个损失,再把损失加总;也可以为不同维度指定权重。原文文字还举了 32 维这个候选,但实际代码列表的最小维度是 64,二者不应混为同一次配置。

from sentence_transformers import SentenceTransformer
from sentence_transformers.sentence_transformer.losses import CoSENTLoss, MatryoshkaLoss

model = SentenceTransformer(
    "microsoft/mpnet-base",
    model_kwargs={"torch_dtype": "float32"},
)
base_loss = CoSENTLoss(model=model)
loss = MatryoshkaLoss(
    model=model,
    loss=base_loss,
    matryoshka_dims=[768, 512, 256, 128, 64],
)

这段代码只定义模型和损失,尚未准备数据或启动训练。训练显存允许时,原文倾向于用 FP32 加载模型;实际混合精度选项需与硬件匹配。模型最大输出维度也必须覆盖列表里的各维度。不能把这个列表照搬到一个只有 384 维输出的模型上。

如果同时希望减少编码器层数,可结合 AdaptiveLayerLoss。Sentence Transformers 提供 Matryoshka2dLoss 作为层数与输出维度联合训练的简写:

from sentence_transformers.sentence_transformer.losses import Matryoshka2dLoss

loss = Matryoshka2dLoss(
    model=model,
    loss=base_loss,
    matryoshka_dims=[768, 512, 256, 128, 64],
)

减少层数的模型另有训练与评估要求,应参见官方 Adaptive Layers 文档。它与仅截断输出向量是两件事,不能把前者的潜在编码收益归给后者。

完整 NLI 训练脚本怎样串起流程

原文链接的 matryoshka_nli.py 才是完整训练入口。其默认模型是 distilbert/distilroberta-base,也接受命令行传入模型名;原文性能比较使用的是另行指定的 MPNet,而非这个默认值。如果基础模型还不是 Sentence Transformer,加载过程会建立带 mean pooling 的表示模型。

脚本读取 sentence-transformers/all-nli 的 triplet 配置,分别取 train 和 dev。NLI 的蕴含关系形成正样本,矛盾句形成困难负样本。MultipleNegativesRankingLoss 利用批内负样本,因此脚本设置 BatchSamplers.NO_DUPLICATES,避免同一批中的重复样本破坏负样本假设。它再用 MatryoshkaLoss 同时训练五个前缀维度。

from datasets import load_dataset
from sentence_transformers.sentence_transformer.losses import (
    MatryoshkaLoss, MultipleNegativesRankingLoss,
)

train_dataset = load_dataset("sentence-transformers/all-nli", "triplet", split="train")
eval_dataset = load_dataset("sentence-transformers/all-nli", "triplet", split="dev")
dims = [768, 512, 256, 128, 64]
train_loss = MatryoshkaLoss(model, MultipleNegativesRankingLoss(model), matryoshka_dims=dims)

训练之外,脚本给 STSBenchmark 验证集的每个维度分别建立 EmbeddingSimilarityEvaluator,设置余弦相似度与对应的 truncate_dim,再用 SequentialEvaluator 组合。这样既能观察训练损失,也能观察每种维度的语义相似度质量。脚本采用 1 个 epoch、每设备 batch size 128、warmup_steps=0.1、每 100 步评估/保存/记录日志、最多保留 2 个 checkpoint,并启用 fp16=True、bf16=False。这些是示例参数;FP16 不受支持时不能原样使用,增加 batch size 也会增加显存需求。

注意脚本头部注释写着“每 10% 训练步数评估”,实际参数却是固定 eval_steps=100。复现时应以代码配置为准并记录总步数,不能同时声称执行了两种计划。训练结束后脚本对 STSBenchmark 的 test 切分逐维评估,再保存到输出目录的 final 子目录。测试集应只用于最终报告,不能反复据此挑选维度、超参数或模型后仍声称是独立测试。

静态审核发现:官方训练脚本最后的 push_to_hub() 虽标作“可选”,代码本身仍会尝试执行,只在失败时记录异常。如果机器已经登录,它可能对外上传模型。本文的训练流程止于 model.save(final_output_dir),不包含该调用;这是明确的安全改编。脚本还可能在安装了 W&B 时启用相应日志集成,训练私有数据前应明确配置报告目标。模型、数据集和依赖都应固定可追溯版本,不让远程默认分支变化冒充同一实验。

推理时选择维度

只有经过相应训练的模型,才有依据在指定前缀长度下保持语义质量。对任意现成模型直接裁掉尾部,不等价于 Matryoshka 训练。原文使用 nomic-ai/nomic-embed-text-v1.5 演示 64 维推理,同时分别添加查询前缀 search_query: 与文档前缀 search_document:。

from sentence_transformers import SentenceTransformer

matryoshka_dim = 64
model = SentenceTransformer(
    "nomic-ai/nomic-embed-text-v1.5",
    trust_remote_code=True,
    truncate_dim=matryoshka_dim,
)
embeddings = model.encode([
    "search_query: What is TSNE?",
    "search_document: t-distributed stochastic neighbor embedding (t-SNE) is a statistical method for visualizing high-dimensional data by giving each datapoint a location in a two or three-dimensional map.",
    "search_document: Amelia Mary Earhart was an American aviation pioneer and writer.",
])
assert embeddings.shape[-1] == matryoshka_dim
similarities = model.similarity(embeddings[0], embeddings[1:])

原文给出的两个相似度是 0.7839 与 0.4933,对应相关文档和无关文档。本次未运行该示例,不能把这两个数当成本机测试输出。不同模型 revision、依赖、精度和处理方式都可能改变数值。原文导入了未使用的 torch.nn.functional,此处已删除,仅属清理。

trust_remote_code=True 允许执行模型仓库里的 Python 代码,是实质性信任决定。上面的原文示例为便于核对而保留;正式运行前需审阅仓库代码并把 revision 固定到已审核的提交 SHA,而不是直接信任可变化的最新代码。本文没有编造一个“已审核 SHA”。查询与文档的维度、提示前缀和归一化策略必须一致;若手工切片后使用点积替代余弦,还需重新确认归一化假设。

逐维评估时的兼容性检查

独立评估脚本 默认比较前述两个 MPNet 模型,维度为 768、512、256、128、64。它读取 mteb/stsbenchmark-sts 测试切分,将原始分数除以 5,使用余弦相关性评估,然后生成绝对 Spearman 曲线与“相对各自最大表现”的比例图。

静态检查还发现两个运行前需要处理的细节。其一,脚本直接把 test_evaluator(...) 的返回值当作标量存入绘图数据,而不同 Sentence Transformers 版本可能返回指标字典;应在所用版本中检查返回契约,明确提取所需的 Spearman 指标,不应把整张字典传入数值计算。其二,os.makedirs(output_path) 未设置 exist_ok=True,重复运行可能因目录已存在而停止。添加该选项前也要决定是否允许覆盖旧指标,最好为每次实验使用独立目录。本文没有将未执行的兼容性建议描述为“修复已通过”。

选择后续示例与部署维度

官方还提供 matryoshka_nli_reduced_dim.py,用于训练最大输出维度为 256 的 NLI 模型;matryoshka_sts.py 用 STSBenchmark 训练集和 CoSENTLoss;2d_matryoshka_nli.py 与 2d_matryoshka_sts.py 则展示联合层数和维度的训练。选择脚本时应先确定数据监督形式和希望优化的成本,不能只看名称相近就替换损失。

部署维度最终应由自己的评估决定:保持数据切分和评估指标一致,分别记录短向量召回质量、候选数量、精排质量、索引大小和检索耗时。原文说明了多维表示的可行性;要证明生产系统的收益,仍须在真实数据分布与检索设置下完成独立实验。

来源与许可:译编基于上述官方文档、训练/评估脚本及其链接资料。Sentence Transformers 项目使用 Apache License 2.0,相关许可证随稿保存在 sources/LICENSE.txt;模型与数据集分别受各自仓库许可约束,项目许可不替代模型或数据许可。全文翻译、转载和配图授权由委托方于 2026-10-05 确认。图由未完纪编辑制作,非原文实验图。本文仅作静态代码审查,未执行训练、下载模型、登录平台或上传模型;未发现问题不代表不存在漏洞。
