原文:Debugging Airflow Dags;作者/维护方:Apache Airflow 项目贡献者 / The Apache Software Foundation。中文翻译与技术整理:未完纪。核验日期:2026-10-05。

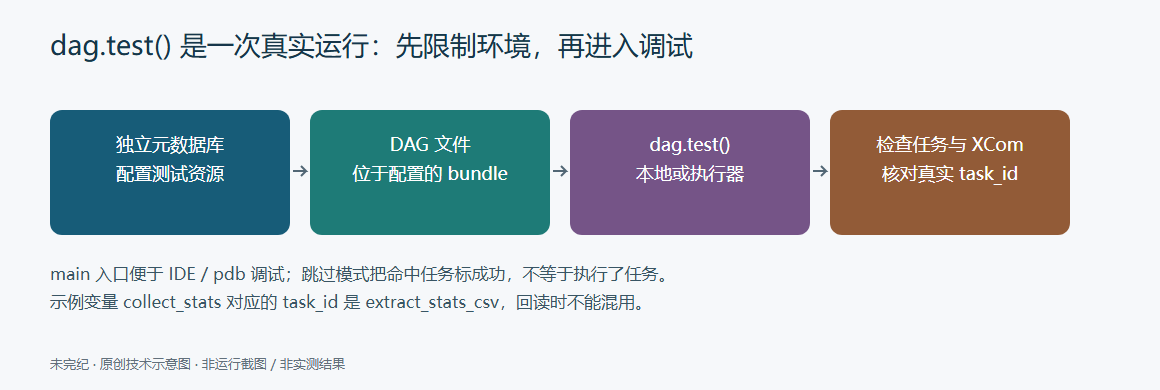

在 IDE 里逐步调试 Airflow DAG,可以给 DAG 文件添加 dag.test() 入口,然后在一个串行的 Python 进程中检查任务执行。原指南指出,这种方式兼容受支持的数据库,包括本地 SQLite;默认情况下所有任务在一个进程里运行,错误更容易直接暴露。
这里的 test 并不代表模拟执行。dag.test() 会创建并执行真实的 DAG run。任务中的网络请求、数据写入、发信和删除操作仍可能发生。本稿只审查代码,不执行这些任务。
先满足元数据库与 bundle 前置条件
当前 Airflow 3.3.2 文档列出两个条件:元数据库已经初始化;DAG 位于 Airflow 配置的 DAG bundle 内,可以被序列化。默认 bundle 对应你的 DAG 文件目录。dag.test() 会重新解析 bundle 并序列化 DAG。
元数据库迁移对应的命令是 airflow db migrate。它会修改数据库结构,不能把生产数据库当临时测试库;先配置独立的测试元数据库,再按该版本的安装流程初始化。
如果仅在 pytest 函数内部,或在配置目录之外的文件中临时构造 DAG,Airflow 可能找不到可序列化的 bundle,进而报出:
Cannot create DagRun for DAG <dag_id> because the dag is not serialized
如果只想验证 operator 的行为,而不需要整个 DAG run,应采用 Airflow 单元测试方法,直接测试适当的 operator 或业务函数。完整 DAG 调试与纯单元测试解决的问题不同。

给 DAG 文件增加调试入口
在已经定义好 dag 的文件末尾加入:
if __name__ == "__main__":
dag.test()
这样,直接运行文件时才进入调试,而正常导入模块不会因这段入口主动执行 DAG。原指南还列出可选参数:execution_date 用来指定测试运行的日期;use_executor 则决定是否使用环境中配置的执行器。默认不使用执行器,任务在本地执行;启用执行器后,可能由该环境的执行器派发任务。
版本提示:参数名和日期语义应以实际安装版的 DAG.test 签名为准。本文保留原文列出的名称,不保证 Airflow 其他版本具有相同接口;不要在未核对环境配置时启用 use_executor,以免把调试任务送往远程工作节点。
按任务 ID 跳过外部等待或清理
如果本地调试不希望执行某些任务,例如等待上游 DAG 的 sensor 或删除中间文件的清理任务,可以通过 mark_success_pattern 传入匹配 task_id 的模式。命中的任务被直接标记为成功。
原文的图式包含两个 ExternalTaskSensor:wait_for_ingestion_dag 等待 ingest_raw_data,wait_for_dim_dag 等待 ingest_dim。两个 sensor 都在统计任务之前,统计任务后面是清理步骤:
collect_stats = PythonOperator(
task_id="extract_stats_csv",
python_callable=extract_stats_csv,
)
# 原文依赖关系(其余任务定义省略)
[sensor, sensor2] >> collect_stats >> cleanup
原文完整静态示例(包含已指出的问题)
以下保留原代码供来源核对。Path.unlink 会删除文件,末行任务 ID 和 XCom 参数另有下文标注的问题;不得把此块视为已修复或可直接执行的配置。
with DAG("example_dag", default_args=default_args) as dag:
sensor = ExternalTaskSensor(task_id="wait_for_ingestion_dag", external_dag_id="ingest_raw_data")
sensor2 = ExternalTaskSensor(task_id="wait_for_dim_dag", external_dag_id="ingest_dim")
collect_stats = PythonOperator(task_id="extract_stats_csv", python_callable=extract_stats_csv)
# ... run other tasks
cleanup = PythonOperator(task_id="cleanup", python_callable=Path.unlink, op_args=[collect_stats.output])
[sensor, sensor2] >> collect_stats >> cleanup
if __name__ == "__main__":
ingest_testing_data()
run = dag.test(mark_success_pattern="wait_for_.*|cleanup")
print(f"Intermediate csv: {run.get_task_instance('collect_stats').xcom_pull(task_id='collect_stats')}")
原例先调用项目自己的 ingest_testing_data() 准备测试数据,再以 wait_for_.*|cleanup 跳过两个等待节点和清理节点。这样无需等待真实上游流程,并保留中间 CSV 供检查。ingest_testing_data、默认参数、统计函数和完整导入都不是这段文档提供的通用实现,不能直接复制成独立脚本。
if __name__ == "__main__":
ingest_testing_data() # 项目提供;必须仅指向独立测试数据
run = dag.test(
mark_success_pattern="^(wait_for_ingestion_dag|wait_for_dim_dag|cleanup)$"
)
编辑改动:这里把原文的宽泛模式改成带起止锚点的三个精确任务 ID,减少误把新加入的等待任务标为成功的可能。模式仍需按自己的 DAG 调整;跳过 sensor 不代表上游结果真的存在,跳过清理也可能留下敏感测试数据。
原文清理节点把 Path.unlink 作为可调用对象,输入取自统计任务输出,这会删除文件。本文仅静态引用这一删除示例,不执行它。仅在确认是独立测试目录且有保留策略时,才应设计自己的清理步骤。
不要混淆 Python 变量名与 task_id
原文随后试图通过 run.get_task_instance('collect_stats') 和以 collect_stats 为目标的 XCom 调用打印 CSV 路径,但前面实际注册的 task_id 是 extract_stats_csv。Python 变量名不会自动成为任务 ID。
应把查找目标统一到 extract_stats_csv,同时核对所用 Airflow 版本中任务实例与 XCom API 的参数签名。原例还使用 xcom_pull(task_id=...);本稿没有执行验证该调用,因此不把“只替换字符串”声称为已经修复并通过测试的完整方案。若只是验证产生的 CSV,更直接的办法是在统计任务中观察输出,并以本版本正式 API 回读。
在命令行和 IDE 里设置断点
同样的 main 入口也适用于 pdb。原文给出的调用形式是:
python -m pdb <path-to-dag-file>.py
进入 pdb 后,用 b 45 在示例第 45 行设置断点,c 继续运行;到达断点后可以输入变量名查看对象。行号应按你自己的文件调整。原页展示的终端输出来自作者示例,本文没有复现该输出。
以下为源文的 pdb 演示记录,仅保留作者输出,不是本文执行结果:
[Breeze:3.10.19] root@ef2c84ad4856:/opt/airflow# python -m pdb providers/standard/src/airflow/providers/standard/example_dags/example_bash_operator.py
> /opt/airflow/providers/standard/src/airflow/providers/standard/example_dags/example_bash_operator.py(18)<module>()
-> """Example Dag demonstrating the usage of the BashOperator."""
(Pdb) b 45
Breakpoint 1 at /opt/airflow/providers/standard/src/airflow/providers/standard/example_dags/example_bash_operator.py:45
(Pdb) c
> /opt/airflow/providers/standard/src/airflow/providers/standard/example_dags/example_bash_operator.py(45)<module>()
-> task_id="run_after_loop",
(Pdb) run_this_last
<Task(EmptyOperator): run_this_last>
IDE 流程同样简单:在 DAG 文件末尾保留 main 入口,设置断点,再以运行或调试方式启动这个文件。调试器暂停进程不等于撤销已发生的外部操作,所以仍应先检查数据库连接、执行器、网络凭据和任务副作用。
来源、版本与使用说明
依据 Airflow 3.3.2 官方调试指南翻译整理,© The Apache Software Foundation,Apache License 2.0。精确匹配模式、任务 ID 差异及隔离说明为编辑标注;未安装 Airflow、初始化数据库、执行 DAG 或删除文件。静态审查不构成执行测试。
