用 DataFusion 窗口函数排名与填补空值

原文:Window Functions。作者归属:Apache DataFusion Python 文档贡献者 / Apache Software Foundation。中文翻译与核验:未完纪 / Codex。原页未明确注明首发日期;本文核验日期为 2026-10-05。

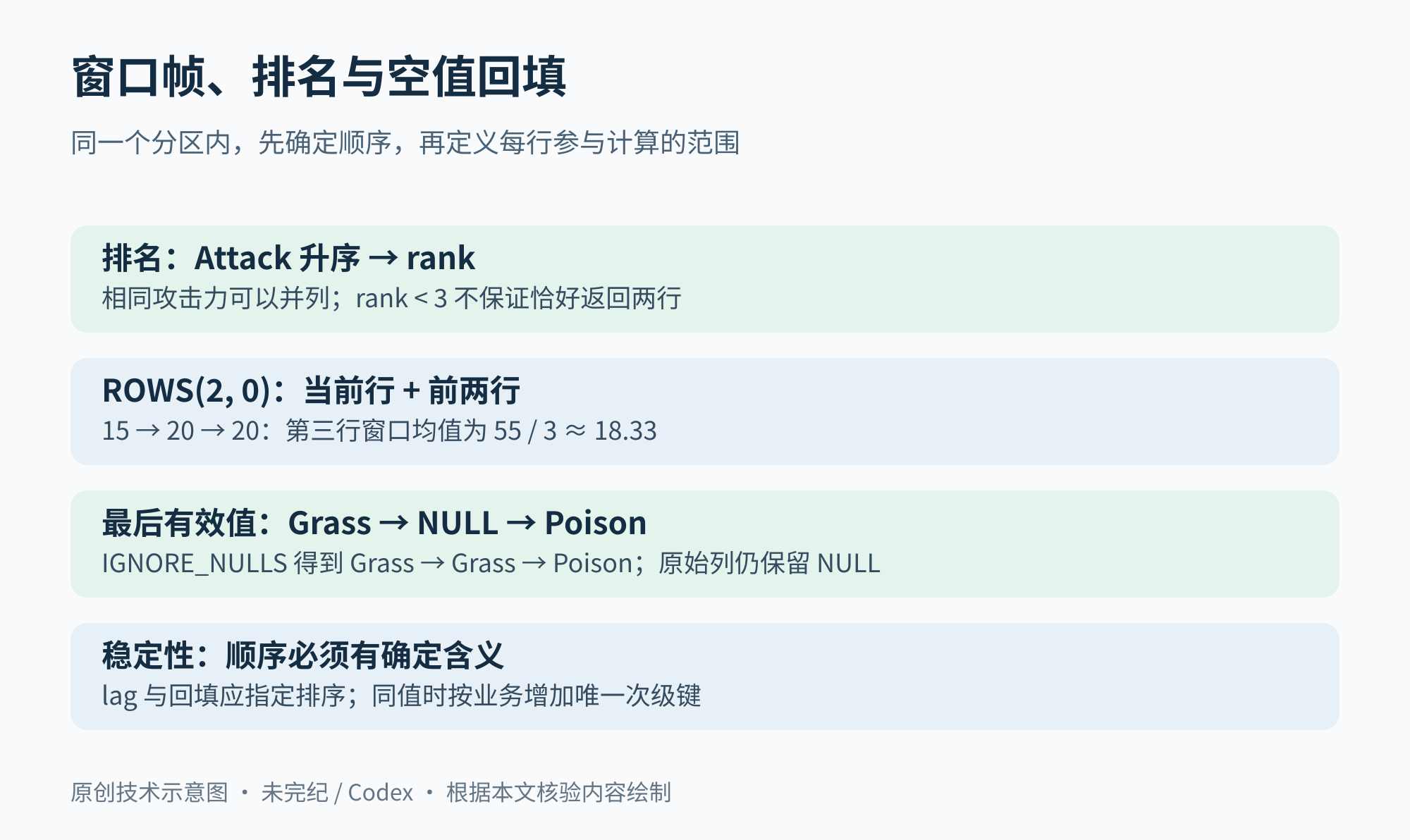

窗口帧、排名与空值回填:排名:Attack 升序 → rank,相同攻击力可以并列;rank < 3 不保证恰好返回两行;ROWS(2, 0):当前行 + 前两行,15 → 20 → 20:第三行窗口均值为 55 / 3 ≈ 18.33;最后有效值:Grass → NULL → Poison,IGNORE_NULLS 得到 Grass → Grass → Poison;原始列仍保留 NULL;稳定性:顺序必须有确定含义,lag 与回填应指定排序;同值时按业务增加唯一次级键
图:窗口帧、排名与空值回填。根据原文与静态核验内容自主绘制,非软件界面截图。

窗口函数:每一行都有一个结果

窗口函数会使用一行或多行中的值,为每一行分别计算结果;聚合函数则通常把多行汇总为一个值。DataFusion 的窗口函数位于 datafusion.functions 模块。下面沿用原文来自 Ritchie Vink 的 Pokémon 数据集。

开始前,将官方构建脚本指定的 固定版本 pokemon.csv 保存到当前工作目录。该样例有 163 条数据,包含 Name、Type 1、Type 2、Attack、Speed 等 13 列,其中 Type 2 有 86 个空字段;这些是对源 CSV 的静态检查,不是执行下列 DataFusion 查询所得。

from datafusion import SessionContext
from datafusion import col, lit
from datafusion import functions as f

ctx = SessionContext()
df = ctx.read_csv("pokemon.csv")

下面的示例把每只 Pokémon 的速度与 DataFrame 中上一行的速度放到一起比较。

df.select(
    col('"Name"'),
    col('"Speed"'),
    f.lag(col('"Speed"')).alias("Previous Speed")
)
DataFrame()
+---------------------------+-------+----------------+
| Name                      | Speed | Previous Speed |
+---------------------------+-------+----------------+
| Bulbasaur                 | 45    |                |
| Ivysaur                   | 60    | 45             |
| Venusaur                  | 80    | 60             |
| VenusaurMega Venusaur     | 80    | 80             |
| Charmander                | 65    | 80             |
| Charmeleon                | 80    | 65             |
| Charizard                 | 100   | 80             |
| CharizardMega Charizard X | 100   | 100            |
| CharizardMega Charizard Y | 100   | 100            |
| Squirtle                  | 43    | 100            |
+---------------------------+-------+----------------+
Data truncated.

设置参数

排序

为 order_by 参数传入排序表达式列表,就可以控制窗口函数处理行的顺序。下例在每个第一属性(Type 1)分区内,按攻击力升序排名。

df.select(
    col('"Name"'),
    col('"Attack"'),
    col('"Type 1"'),
    f.rank(
        partition_by=[col('"Type 1"')],
        order_by=[col('"Attack"').sort(ascending=True)],
    ).alias("rank"),
).sort(col('"Type 1"'), col('"Attack"'))
DataFrame()
+------------+--------+--------+------+
| Name       | Attack | Type 1 | rank |
+------------+--------+--------+------+
| Metapod    | 20     | Bug    | 1    |
| Kakuna     | 25     | Bug    | 2    |
| Caterpie   | 30     | Bug    | 3    |
| Weedle     | 35     | Bug    | 4    |
| Butterfree | 45     | Bug    | 5    |
| Venonat    | 55     | Bug    | 6    |
| Venomoth   | 65     | Bug    | 7    |
| Paras      | 70     | Bug    | 8    |
| Beedrill   | 90     | Bug    | 9    |
| Parasect   | 95     | Bug    | 10   |
+------------+--------+--------+------+
Data truncated.

分区

与聚合函数类似,窗口函数可以接受一个 partition_by 列表。这样,窗口计算会在每个分区内部独立进行。上例按 Type 1 为每只 Pokémon 排名;下面筛选出各分区靠前的名次。

df.select(
    col('"Name"'),
    col('"Attack"'),
    col('"Type 1"'),
    f.rank(
        partition_by=[col('"Type 1"')],
        order_by=[col('"Attack"').sort(ascending=True)],
    ).alias("rank"),
).filter(col("rank") < lit(3)).sort(col('"Type 1"'), col("rank"))
DataFrame()
+-----------+--------+----------+------+
| Name      | Attack | Type 1   | rank |
+-----------+--------+----------+------+
| Metapod   | 20     | Bug      | 1    |
| Kakuna    | 25     | Bug      | 2    |
| Dratini   | 64     | Dragon   | 1    |
| Dragonair | 84     | Dragon   | 2    |
| Voltorb   | 30     | Electric | 1    |
| Magnemite | 35     | Electric | 2    |
| Clefairy  | 45     | Fairy    | 1    |
| Clefable  | 70     | Fairy    | 2    |
| Mankey    | 80     | Fighting | 1    |
| Machop    | 80     | Fighting | 1    |
+-----------+--------+----------+------+
Data truncated.

窗口帧

聚合函数作为窗口函数使用时,窗口帧定义参与计算的行。如果不显式指定窗口帧,原文给出的默认规则是:

  • 设置了 order_by:从分区开始(无界前向)到当前行。
  • 未设置 order_by:从无界前向到无界后向,也就是整个分区。

窗口帧由三个参数定义:单位类型、起始边界、结束边界。支持以下单位:

  • Rows:边界由相对于当前行的行数定义。
  • Range:原文要求 order_by 恰好包含一项;边界由各行排序表达式的值与当前值之间的距离定义。
  • Groups:一个组由在全部 order_by 表达式上取值相同的行组成。

下例计算当前 Pokémon 及其前两行的速度滚动平均值。

from datafusion.expr import Window, WindowFrame

df.select(
    col('"Name"'),
    col('"Speed"'),
    f.avg(col('"Speed"'))
    .over(Window(window_frame=WindowFrame("rows", 2, 0), order_by=[col('"Speed"')]))
    .alias("Previous Speed"),
)
DataFrame()
+------------+-------+--------------------+
| Name       | Speed | Previous Speed     |
+------------+-------+--------------------+
| Slowpoke   | 15    | 15.0               |
| Jigglypuff | 20    | 17.5               |
| Geodude    | 20    | 18.333333333333332 |
| Paras      | 25    | 21.666666666666668 |
| Grimer     | 25    | 23.333333333333332 |
| Rhyhorn    | 25    | 25.0               |
| Snorlax    | 30    | 26.666666666666668 |
| Metapod    | 30    | 28.333333333333332 |
| Oddish     | 30    | 30.0               |
| Parasect   | 30    | 30.0               |
+------------+-------+--------------------+
Data truncated.

空值处理

把聚合函数用作窗口函数时,常常需要指定如何处理空值。在线原文说明可使用构建接口,并预计未来会简化接口。下面的实际代码通过 Window 传入 null_treatment。

一种常见需求是查找截至当前行为止最后出现的有效值。把空值处理方式设为忽略空值后,就会使用最近一条非空记录的值填补结果。还需要把窗口终点设为当前行,以免读到后面的值。

示例先筛选第一属性为 Bug 的 Pokémon,这些记录的第二属性 Type 2 中有一些空值;随后同时计算忽略空值和保留空值的结果。

from datafusion.common import NullTreatment

df.filter(col('"Type 1"') == lit("Bug")).select(
    '"Name"',
    '"Type 2"',
    f.last_value(col('"Type 2"'))
    .over(
        Window(
            window_frame=WindowFrame("rows", None, 0),
            order_by=[col('"Speed"')],
            null_treatment=NullTreatment.IGNORE_NULLS,
        )
    )
    .alias("last_wo_null"),
    f.last_value(col('"Type 2"'))
    .over(
        Window(
            window_frame=WindowFrame("rows", None, 0),
            order_by=[col('"Speed"')],
            null_treatment=NullTreatment.RESPECT_NULLS,
        )
    )
    .alias("last_with_null"),
)
DataFrame()
+------------+--------+--------------+----------------+
| Name       | Type 2 | last_wo_null | last_with_null |
+------------+--------+--------------+----------------+
| Paras      | Grass  | Grass        | Grass          |
| Metapod    |        | Grass        |                |
| Parasect   | Grass  | Grass        | Grass          |
| Kakuna     | Poison | Poison       | Poison         |
| Caterpie   |        | Poison       |                |
| Venonat    | Poison | Poison       | Poison         |
| Weedle     | Poison | Poison       | Poison         |
| Butterfree | Flying | Flying       | Flying         |
| Beedrill   | Poison | Poison       | Poison         |
| Pinsir     |        | Poison       |                |
+------------+--------+--------------+----------------+
Data truncated.

把聚合函数用作窗口函数

任意聚合函数都可以用作窗口函数。下例用 datafusion.functions.avg(),把每只 Pokémon 的攻击力与其第一属性分组的平均攻击力放在同一行。窗口帧显式覆盖整个分区。

df.select(
    col('"Name"'),
    col('"Attack"'),
    col('"Type 1"'),
    f.avg(col('"Attack"')).over(
        Window(
            window_frame=WindowFrame("rows", None, None),
            partition_by=[col('"Type 1"')],
        )
    ).alias("Average Attack"),
)
DataFrame()
+-------------------+--------+--------+----------------+
| Name              | Attack | Type 1 | Average Attack |
+-------------------+--------+--------+----------------+
| Dragonite         | 134    | Dragon | 94.0           |
| Dratini           | 64     | Dragon | 94.0           |
| Dragonair         | 84     | Dragon | 94.0           |
| Gastly            | 35     | Ghost  | 53.75          |
| Haunter           | 50     | Ghost  | 53.75          |
| Gengar            | 65     | Ghost  | 53.75          |
| GengarMega Gengar | 65     | Ghost  | 53.75          |
| Jynx              | 50     | Ice    | 67.5           |
| Articuno          | 85     | Ice    | 67.5           |
| Kabuto            | 80     | Rock   | 87.5           |
+-------------------+--------+--------+----------------+
Data truncated.

可用函数

  • 排名函数:rank()、dense_rank()、ntile()、row_number()。
  • 分析函数:cume_dist()、percent_rank()、lag()、lead()。
  • 聚合函数:全部聚合函数都可以用作窗口函数。

用户自定义窗口函数

继承 WindowEvaluator 并通过 udwf() 注册,就能把自定义窗口函数交给引擎执行。求值器接口及完整示例见 datafusion.user_defined。原文在这里提供扩展入口,没有给出完整自定义求值器实现。

序列化时,Python 窗口 UDF 会内嵌在经 pickle 或 to_bytes() 序列化的表达式中。求值器类通过 cloudpickle 按值捕获,因此工作进程无需预先注册 UDF;求值器通过 import 解析的名称则按引用捕获,接收端工作进程必须能够导入相应模块。完整 IPC 模型与安全注意事项见 datafusion.ipc。

补充核验:当前 main 分支的窗口选项规则

以下内容译自已固定提交的官方 windows.md,属于比在线页面更新的补充说明。将窗口函数的 partition_by、order_by 与 window_frame 集中在一处设置:使用函数关键字参数、一次 over(),或者以 build() 结束的一条构建链。若窗口函数已经有其中任意选项,再追加构建方法或 over() 会报错。

# 报错:lead already has window options (order_by)
f.lead(col("v"), order_by="t").over(Window(partition_by=[col("g")]))

# 应在同一处设置
f.lead(col("v")).over(Window(partition_by=[col("g")], order_by="t"))

构建好的窗口函数只保存具体窗口帧,不记录它是用户选择的还是由排序派生的,因此无法在不猜测意图的情况下合并选项。原文跟踪 apache/datafusion#25934,未来解决后或可支持合并。已有的 null_treatment 会保留;聚合函数作为窗口函数时,其 filter 和 distinct 也会保留。整个分区的帧被视作“没有帧”,所以添加排序时会派生累计帧,即使先前显式传入过整个分区帧。

whole = WindowFrame("rows", None, None)

# 两者都得到累计求和
f.sum(col("v")).over(Window()).order_by(col("v")).build()
f.sum(col("v")).over(Window(window_frame=whole)).order_by(col("v")).build()

# 若要保留整个分区帧,应在排序之后设置,或同时传给 Window
f.sum(col("v")).over(Window()).order_by(col("v")).window_frame(whole).build()
f.sum(col("v")).over(Window(order_by=col("v"), window_frame=whole))

over() 会保留聚合函数构建时指定的 filter、distinct 与 null_treatment。例如,下面对值 1.0 和 4.0 去重后求均值:

f.avg(col("v"), distinct=True).over(Window())

聚合调用自身的 order_by 与 OVER 组合会报错,与 SQL 中聚合调用内部的 ORDER BY 情况一致。窗口的排序只设置窗口帧和行顺序,不会把排序传给聚合函数。例外是 percentile_cont 这类 WITHIN GROUP 函数:作为窗口函数时按升序计算,接受升序 sort_expression,拒绝降序。

f.percentile_cont(col("v"), 0.25).over(Window())  # 接受:升序
f.percentile_cont(col("v").sort(ascending=False), 0.25).over(Window())  # 报错

来源、版本与许可说明

官方 windows.md 带 ASF Apache-2.0 许可头,原文注明 Pokémon 样例来自 Ritchie Vink。

本译稿保留原文的技术步骤、示例与限制,并以“译注”或“补充核验”区分修正和新增说明。示例只做静态审查,未安装、运行或测试。

伴随源码核验提交:apache/datafusion-python @ a2ddb5531ac8。在线文档可能与源码构建时间不同,文中已注明实质差异。
