用 Spark 挖掘购物篮关联与序列模式

频繁模式挖掘通常是分析大型数据集的第一步：找出经常出现的商品、商品组合或事件子序列，再据此观察数据中的规律。Spark 的 DataFrame API 提供两条不同的路线：FP-Growth 面向无序项集，PrefixSpan 面向有先后顺序的序列。二者都使用支持度筛选模式，但输入结构和结果含义不同。

本文译编自 Apache Spark 官方指南 Frequent Pattern Mining，发布维护方为 Apache Software Foundation，原页没有个人作者署名。2026 年 10 月 5 日读取的 latest 页面标为 Spark 4.2.0；本文同时核对了 v4.2.0 的两个完整 Python 示例。示例仅作静态审阅，未安装 Spark、启动作业或执行测试。

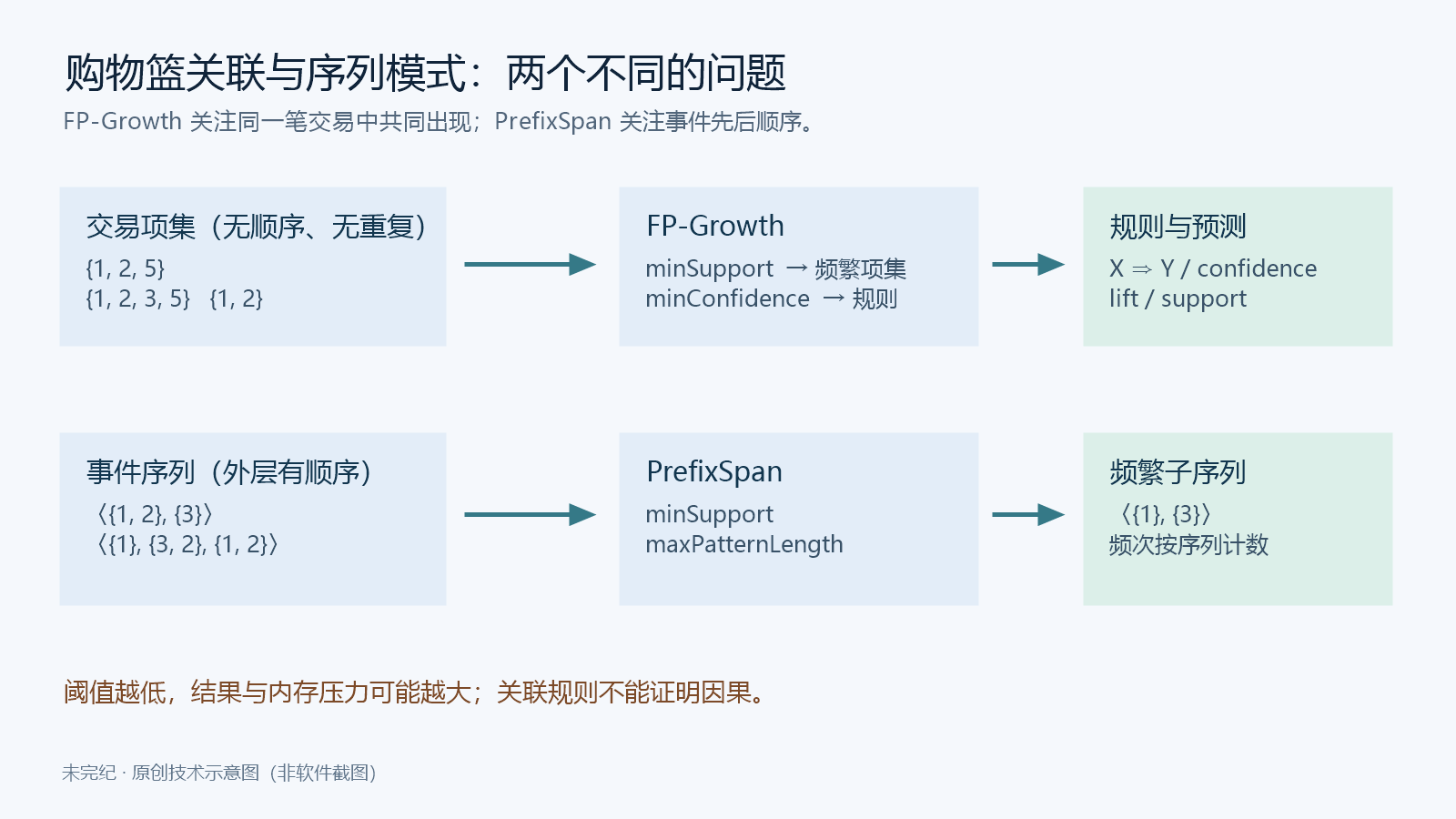

原创技术示意图：先区分交易内共同出现与事件先后顺序，再选择算法。

FP-Growth：不显式枚举候选项集

FP 是 frequent pattern 的缩写。Han 等人的论文《Mining frequent patterns without candidate generation》描述了 FP-Growth：先统计交易数据中各个项目的出现次数，找出频繁项目，再用 FP-tree 紧凑表示交易，最后从树中提取频繁项集。与 Apriori 一类方法不同，它不必显式生成代价高昂的候选集合。

Spark 文档将 FP-tree 称为 suffix tree；这里按算法常用名称称为“频繁模式树”，避免与字符串算法中的后缀树混淆。Spark 的 RDD 库 spark.mllib 实现了并行版本 PFP，参考 Li 等人的《PFP: Parallel FP-growth for query recommendation》。它根据交易后缀分配生长 FP-tree 的工作，以便在多机环境扩展；这不是对任意数据都能获得某个加速比的保证。下面使用的是 spark.ml 的 DataFrame 接口。

FP-Growth 的一个输入项集，是无序且元素唯一的集合。Spark 没有集合列类型，因此用数组表示。数组位置不代表购买顺序，同一交易内也不应把同一商品重复写入；需要次数或时间的信息，应在建模时另作处理。

参数	含义	容易混淆的边界
`minSupport`	一个项集成为频繁项集所需的最小支持度。某商品在 5 笔交易中出现 3 次，支持度是 3/5=0.6。	分母是交易数，不是所有商品出现次数之和。
`minConfidence`	从频繁项集生成关联规则时所需的最小置信度。X 出现 4 次，X 与 Y 共同出现 2 次，则 X ⇒ Y 的置信度为 2/4=0.5。	它过滤规则，不改变频繁项集挖掘结果。
`numPartitions`	分配挖掘工作所用的分区数。	未设置时，使用输入数据集的分区数；需要结合实际 executor 资源调节。

模型提供的三种结果

FPGrowthModel.freqItemsets 返回包含 items: array 和 freq: long 的 DataFrame。前者是项集，后者是它在交易中出现的次数。

associationRules 返回达到置信度阈值的规则。其中 antecedent 是前件，consequent 是后件，Spark 的后件数组始终只包含一个元素。其余三列是 confidence、lift 与 support：

confidence(X ⇒ Y) = support(X ∪ Y) / support(X)
lift(X ⇒ Y) = support(X ∪ Y) / (support(X) × support(Y))
support(X ⇒ Y) = support(X ∪ Y)

提升度把共同出现程度与两者各自的常见程度比较，不能把高置信度直接理解为很强的额外预测能力。例如 Y 本身几乎总出现，即使 X 与 Y 没有额外关系，X ⇒ Y 的置信度仍可能很高。关联规则描述观察到的共现，不证明 X 导致 Y。

transform 会检查每条交易：如果交易包含某条规则的全部前件，就把该规则的后件加入预测候选；对所有适用规则汇总后，去掉交易中已存在的项目。输出预测列的数据类型与 itemsCol 一致。它是规则补全，不是带校准概率的分类器，也不等同于已经评估过的个性化推荐系统。

完整 Python 示例：交易项集、规则与预测

下面保留官方示例的数据与参数，并把初始化、导入和结束会话放在同一段，补齐指南页面省略的运行上下文；注释改为中文。代码源于 ASF，适用 Apache License 2.0，修改是中文注释与版式整理。

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file for ownership.
# Licensed under the Apache License, Version 2.0:
# https://www.apache.org/licenses/LICENSE-2.0
# Provided on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND.
from pyspark.ml.fpm import FPGrowth
from pyspark.sql import SparkSession

if __name__ == "__main__":
    spark = SparkSession.builder.appName("FPGrowthExample").getOrCreate()

    df = spark.createDataFrame([
        (0, [1, 2, 5]),
        (1, [1, 2, 3, 5]),
        (2, [1, 2])
    ], ["id", "items"])

    fpGrowth = FPGrowth(itemsCol="items", minSupport=0.5, minConfidence=0.6)
    model = fpGrowth.fit(df)

    model.freqItemsets.show()
    model.associationRules.show()
    model.transform(df).show()
    spark.stop()

这里共有 3 笔交易，支持度门槛 0.5 意味着项集至少出现在 2 笔交易中。直接从输入可数出：1 与 2 各出现 3 次，5 出现 2 次，3 只出现 1 次，所以 3 不会进入频繁项集；{1,2,5} 出现 2 次，能够通过门槛。规则 {1,2} ⇒ {5} 的置信度为 2/3，大于 0.6，所以最后一笔只含 {1,2} 的交易可得到项目 5 的补全。这些是根据小数据手工推导的解释，不是本文运行 show() 得到的测试输出；分布式结果的行序也不应当作为正确性判断依据。

官方完整文件为 fpgrowth_example.py，指南还提供 Scala、Java 与 R 的等价调用，原始代码见文末附录。Python API 详见 FPGrowth API。

PrefixSpan：频繁子序列保留事件顺序

购物篮只关心同一交易里有什么；如果问题变成“先出现哪些事件，之后又出现哪些事件”，就需要序列模式挖掘。PrefixSpan 参考 Pei 等人的《Mining Sequential Patterns by Pattern-Growth: The PrefixSpan Approach》，通过前缀投影逐步增长模式。

输入由“序列的数组”组成：每行是一个序列，序列里的每个元素又是一个项集。因此 [[1,2],[3]] 表示先发生包含 1、2 的事件，再发生包含 3 的事件；[[1],[2,3]] 与它含义不同。外层顺序不能丢，内层仍按项集理解。

参数	作用
`minSupport`	成为频繁序列模式所需的最小支持度。
`maxPatternLength`	频繁序列模式的最大长度；超过该限制的模式不进入结果。模式长度按项目数量计算，不要与输入序列条数混淆。
`maxLocalProjDBSize`	前缀投影数据库可转入本地迭代处理的最大项目数量阈值，需要结合 executor 的可用资源调节；它不是字节数或硬性内存上限。
`sequenceCol`	序列列名，默认 `sequence`。该列为 null 的行会被忽略。

# ASF / Apache License 2.0; 中文注释与版式整理
from pyspark.ml.fpm import PrefixSpan
from pyspark.sql import Row, SparkSession

if __name__ == "__main__":
    spark = SparkSession.builder.appName("PrefixSpanExample").getOrCreate()
    sc = spark.sparkContext
    df = sc.parallelize([
        Row(sequence=[[1, 2], [3]]),
        Row(sequence=[[1], [3, 2], [1, 2]]),
        Row(sequence=[[1, 2], [5]]),
        Row(sequence=[[6]])
    ]).toDF()

    prefixSpan = PrefixSpan(
        minSupport=0.5,
        maxPatternLength=5,
        maxLocalProjDBSize=32000000
    )
    prefixSpan.findFrequentSequentialPatterns(df).show()
    spark.stop()

本例有 4 条序列，因此 0.5 的支持度要求模式至少出现在 2 条序列中。例如先有 1、后有 3 的模式 [[1],[3]] 在前两条序列中成立。模式在同一条序列中出现多次，不表示它贡献多条独立输入序列。返回结果是模式与出现频次，并不自动构成 FP-Growth 那样的关联规则预测模型。

官方完整文件为 prefixspan_example.py，参数定义见 PrefixSpan API。

从教学数据换到业务数据时的边界

先确定“交易”和“序列”的业务边界：同一用户的一天、一张订单和一次会话不是等价单位。FP-Growth 输入项集应去重；序列应先按可信时间或业务顺序组装，而不是依赖 DataFrame 的偶然行序。缺失值和空输入需要在数据质量步骤中明确处置，不能把 PrefixSpan 忽略 null 行误解为数据已自动修复。

很低的支持度、很长的序列和很大的单笔项集，都可能带来大量组合与内存压力。先用范围受控的数据观察模式数，再调整分区、支持度和长度限制。maxLocalProjDBSize 应配合 executor 资源观察，不能把文档中的 32000000 当成所有集群的安全默认值。

本次静态审查的示例使用内嵌数据，没有外部文件、SQL 字符串拼接、硬编码凭据或破坏性命令；未发现这些具体风险并不等于代码或依赖没有漏洞。getOrCreate() 会采用已有会话与环境配置，因此若自行演练，应显式确认使用隔离的本地环境，避免无意连接共享或生产集群。本文没有执行官方给出的 spark-submit 命令，也没有作吞吐或内存测试。

来源与许可

正文依据 Apache Spark 官方指南完整页面翻译、整理，并增加了术语澄清、手工推导与安全边界。原论文作者与链接如上保留。示例代码仍遵循 Apache License 2.0；完整许可证和 Apache Spark v4.2.0 NOTICE 见随稿文件及本页附录。本文配图为未完纪原创示意图，不是运行截图。

附录：官方 Scala、Java 与 R 示例

下列为同一源页的其他语言版本，保留原注释与代码，未执行；它们与前文 Python 示例表达相同的数据和参数。原文中的会话变量由对应 Spark 环境提供。

Scala / FP-Growth

import org.apache.spark.ml.fpm.FPGrowth

val dataset = spark.createDataset(Seq(
  "1 2 5",
  "1 2 3 5",
  "1 2")
).map(t => t.split(" ")).toDF("items")

val fpgrowth = new FPGrowth().setItemsCol("items").setMinSupport(0.5).setMinConfidence(0.6)
val model = fpgrowth.fit(dataset)

// Display frequent itemsets.
model.freqItemsets.show()

// Display generated association rules.
model.associationRules.show()

// transform examines the input items against all the association rules and summarize the
// consequents as prediction
model.transform(dataset).show()

Java / FP-Growth

import java.util.Arrays;
import java.util.List;

import org.apache.spark.ml.fpm.FPGrowth;
import org.apache.spark.ml.fpm.FPGrowthModel;
import org.apache.spark.sql.Dataset;
import org.apache.spark.sql.Row;
import org.apache.spark.sql.RowFactory;
import org.apache.spark.sql.SparkSession;
import org.apache.spark.sql.types.*;

List<Row> data = Arrays.asList(
  RowFactory.create(Arrays.asList("1 2 5".split(" "))),
  RowFactory.create(Arrays.asList("1 2 3 5".split(" "))),
  RowFactory.create(Arrays.asList("1 2".split(" ")))
);
StructType schema = new StructType(new StructField[]{ new StructField(
  "items", new ArrayType(DataTypes.StringType, true), false, Metadata.empty())
});
Dataset<Row> itemsDF = spark.createDataFrame(data, schema);

FPGrowthModel model = new FPGrowth()
  .setItemsCol("items")
  .setMinSupport(0.5)
  .setMinConfidence(0.6)
  .fit(itemsDF);

// Display frequent itemsets.
model.freqItemsets().show();

// Display generated association rules.
model.associationRules().show();

// transform examines the input items against all the association rules and summarize the
// consequents as prediction
model.transform(itemsDF).show();

R / FP-Growth

# Load training data

df <- selectExpr(createDataFrame(data.frame(rawItems = c(
  "1,2,5", "1,2,3,5", "1,2"
))), "split(rawItems, ',') AS items")

fpm <- spark.fpGrowth(df, itemsCol="items", minSupport=0.5, minConfidence=0.6)

# Extracting frequent itemsets

spark.freqItemsets(fpm)

# Extracting association rules

spark.associationRules(fpm)

# Predict uses association rules to and combines possible consequents

predict(fpm, df)

Scala / PrefixSpan

import org.apache.spark.ml.fpm.PrefixSpan

val smallTestData = Seq(
  Seq(Seq(1, 2), Seq(3)),
  Seq(Seq(1), Seq(3, 2), Seq(1, 2)),
  Seq(Seq(1, 2), Seq(5)),
  Seq(Seq(6)))

val df = smallTestData.toDF("sequence")
val result = new PrefixSpan()
  .setMinSupport(0.5)
  .setMaxPatternLength(5)
  .setMaxLocalProjDBSize(32000000)
  .findFrequentSequentialPatterns(df)
  .show()

Java / PrefixSpan

import java.util.Arrays;
import java.util.List;

import org.apache.spark.ml.fpm.PrefixSpan;
import org.apache.spark.sql.Dataset;
import org.apache.spark.sql.Row;
import org.apache.spark.sql.RowFactory;
import org.apache.spark.sql.SparkSession;
import org.apache.spark.sql.types.*;

List<Row> data = Arrays.asList(
  RowFactory.create(Arrays.asList(Arrays.asList(1, 2), Arrays.asList(3))),
  RowFactory.create(Arrays.asList(Arrays.asList(1), Arrays.asList(3, 2), Arrays.asList(1,2))),
  RowFactory.create(Arrays.asList(Arrays.asList(1, 2), Arrays.asList(5))),
  RowFactory.create(Arrays.asList(Arrays.asList(6)))
);
StructType schema = new StructType(new StructField[]{ new StructField(
  "sequence", new ArrayType(new ArrayType(DataTypes.IntegerType, true), true),
  false, Metadata.empty())
});
Dataset<Row> sequenceDF = spark.createDataFrame(data, schema);

PrefixSpan prefixSpan = new PrefixSpan().setMinSupport(0.5).setMaxPatternLength(5);

// Finding frequent sequential patterns
prefixSpan.findFrequentSequentialPatterns(sequenceDF).show();

R / PrefixSpan

# Load training data

df <- createDataFrame(list(list(list(list(1L, 2L), list(3L))),
                           list(list(list(1L), list(3L, 2L), list(1L, 2L))),
                           list(list(list(1L, 2L), list(5L))),
                           list(list(list(6L)))),
                      schema = c("sequence"))

# Finding frequent sequential patterns
frequency <- spark.findFrequentSequentialPatterns(df, minSupport = 0.5, maxPatternLength = 5L,
                                                  maxLocalProjDBSize = 32000000L)
showDF(frequency)
