用 Flink 向 Paimon 写入持续更新的词频

作者及维护方：Apache Paimon 项目／Apache Software Foundation。本文依据 Paimon 2.0《Quick Start》完整整理翻译，保留操作顺序、两种目录方式、内存配置和动态选项；版本与风险说明为编者补充。来源核对日期：2026-10-05。以下命令和 SQL 仅经静态审查，未在本次制作中执行。

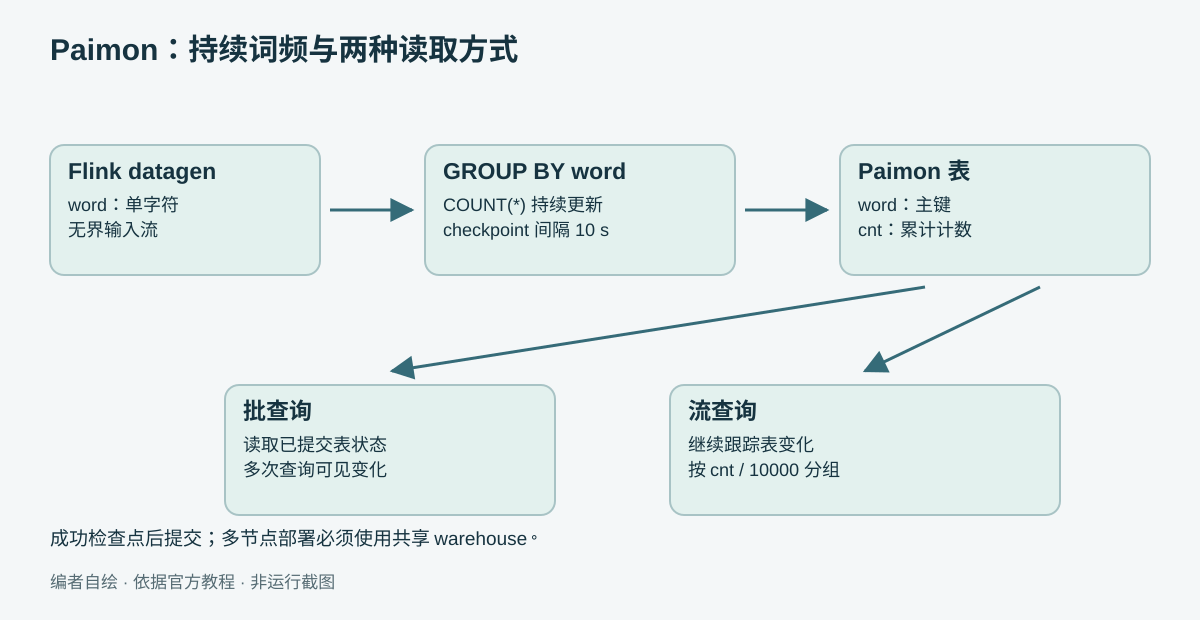

这个例子把一条不断产生单字符词语的数据流，聚合成一张不断更新的词频表。它同时展示 Paimon 的两种读法：批查询取得已提交的表状态，流查询继续跟踪表的变化。数据库里的每个词对应一个主键，新的计数更新这个词的记录，而不是把每一次累计结果都当作互不相关的新行。

先配对 Flink 与 Paimon 连接器

原页列出 Flink 2.2、2.1、2.0、1.20、1.19、1.18、1.17 和 1.16 对应的 Paimon 2.0.0 bundled JAR。它建议使用较新的 Flink 版本，但安装时仍必须选对连接器的 Flink 版本段。用于读写的 bundled JAR 与用于手动压缩等维护操作的 action JAR 是两类文件，不能互相替代。

以 Flink 1.20 系列为例，目标文件是 paimon-flink-1.20-2.0.0.jar；action 文件是 paimon-flink-action-2.0.0.jar。本次下载并静态核对了 Maven Central 上已发布的 paimon-flink-1.20:2.0.0 POM：Flink 依赖版本为 1.20.1，作用域为 provided，运行环境仍需提供 Flink。另保存了 paimon-hadoop-uber:2.0.0 的发布 POM。它们提供依赖边界证据，不等同于 JAR 已通过运行兼容性测试；本次没有加载或执行这些组件。

也可以从 官方源码仓库构建。原文命令如下：

mvn clean install -DskipTests

构建产物分别位于 ./paimon-flink/paimon-flink-<flink-version>/target/paimon-flink-<flink-version>-2.0.0.jar 和 ./paimon-flink/paimon-flink-action/target/paimon-flink-action-2.0.0.jar。clean 会清理构建输出，-DskipTests 会跳过测试；构建成功并不等于测试通过。源码目录应检出与目标版本对应的发布标签，实际文件名以该检出的构建结果为准。

准备本地集群

先从 Flink 官方下载页取得目标发行包并解压。原文用 tar -xzf flink-*.tgz，再用通配符复制连接器。为避免同目录多个版本被同时选中，下面把连接器固定为 1.20 对应文件；/path/to/flink 必须替换为你的实际目录。这是对原文通配符的明确收紧，不是已执行过的安装记录。

tar -xzf flink-1.20.1-bin-scala_2.12.tgz
cp paimon-flink-1.20-2.0.0.jar /path/to/flink/lib/

解压会写入当前目录，复制 JAR 会改变集群类路径。不要把多个 Flink 版本的 Paimon 连接器一起放入 lib。上面的发行包文件名是本例所选版本的说明，下载渠道、校验值、Java 要求应按该发行版说明核对。

原文第三步要求准备 Hadoop 依赖：若机器已有 Hadoop 环境，应保证 HADOOP_CLASSPATH 包含常用 Hadoop 库；否则原文给出把 flink-shaded-hadoop-2-uber-*.jar 放入 Flink lib 的旧式命令。这个通配文件名和指向下载页的链接不足以确认任何当前可用、适配的 JAR。Paimon 2.0 文件系统说明明确将本地文件系统列为内建支持，并为缺少 Hadoop 依赖、又需要访问 Hadoop 集群的应用提供 paimon-hadoop-uber-2.0.0.jar。本例使用本地 file: 仓库，不应为照抄旧步骤而盲目加入重复 Hadoop 依赖；需要 HDFS 时，再按同版文档补齐类路径与 Hadoop 配置。

为了同时运行写入作业与查询作业，集群至少需要两个任务槽。Flink 1.19 以前编辑 conf/flink-conf.yaml，1.19 及以后使用 conf/config.yaml。原文的配置项是：

taskmanager.numberOfTaskSlots: 2

这是本地教程的最低资源安排，不是任意并行度都足够的容量配置。在 Linux／类 Unix Shell 中启动集群和 SQL 客户端：

/path/to/flink/bin/start-cluster.sh
/path/to/flink/bin/sql-client.sh

在浏览器访问 http://localhost:8081，检查 Flink 控制台中的集群状态。启动脚本会创建本地服务和监听端口；此处的控制台只用于本机演示，不应未经访问控制直接暴露到公网。Windows 环境不能把这些 Bash 脚本直接当作 PowerShell 命令。

创建目录与主键表

普通 Paimon Catalog 使用仓库路径保存表文件：

CREATE CATALOG my_catalog WITH (
    'type' = 'paimon',
    'warehouse' = 'file:/tmp/paimon'
);
USE CATALOG my_catalog;

CREATE TABLE word_count (
    word STRING PRIMARY KEY NOT ENFORCED,
    cnt BIGINT
);

word 是词，cnt 是累计次数。PRIMARY KEY NOT ENFORCED 是 Flink SQL 的主键声明，不能理解为数据库将替你检查所有输入数据的唯一性。这里的聚合按词生成更新，Paimon 按主键维护相应记录。

file:/tmp/paimon 仅适用于这台机器上的演示；/tmp 也不是长期数据保留承诺。分布式运行时，各节点必须能访问同一个仓库，应换成 HDFS、OSS 等共享文件系统，并按其要求配置插件和权限。不要让多个节点各自把同名本地目录当作共享仓库。

原文还给出另一条路径：使用依赖 Hive Metastore 的 FlinkGenericCatalog，在同一个目录里管理 Paimon、Hive 以及 Kafka 等 Flink 通用表。此时创建 Paimon 表要显式指定连接器：

CREATE CATALOG my_catalog WITH (
    'type' = 'paimon-generic',
    'hive-conf-dir' = '/path/to/hive/conf',
    'hadoop-conf-dir' = '/path/to/hadoop/conf'
);
USE CATALOG my_catalog;

CREATE TABLE word_count (
    word STRING PRIMARY KEY NOT ENFORCED,
    cnt BIGINT
) WITH (
    'connector' = 'paimon'
);

这段与前一个目录方案二选一，不能在同一会话里直接重复创建同名目录。路径由原文的 ... 改成了明显的占位路径。Paimon 会使用 hive-site.xml 中的 hive.metastore.warehouse.dir；应带上 hdfs:// 等 URI scheme，否则可能被解释为本地路径。

持续生成词并写入累计结果

临时表不把生成的数据作为持久源表保存，它通过 Flink 的 datagen 连接器不断产生长度为 1 的字符串。随后按词分组计数，把动态结果写入 Paimon：

CREATE TEMPORARY TABLE word_table (
    word STRING
) WITH (
    'connector' = 'datagen',
    'fields.word.length' = '1'
);

SET 'execution.checkpointing.interval' = '10 s';

INSERT INTO word_count
SELECT word, COUNT(*) FROM word_table GROUP BY word;

流式写入需要配置检查点。这里的 10 s 是检查点触发间隔，不是“每十秒一定能读到新数据”的服务保证。只有写入作业成功完成相应检查点、数据提交成功，读者才能看到相应提交。作业调度、背压、存储响应和失败恢复都会影响可见时间。若表暂时为空，应先看作业与检查点状态，而不是反复重建表。

用批查询观察已提交状态

保持写入作业运行，调整 SQL 客户端的查询配置：

SET 'sql-client.execution.result-mode' = 'tableau';
RESET 'execution.checkpointing.interval';
SET 'execution.runtime-mode' = 'batch';

SELECT * FROM word_count;

tableau 让结果在终端中按表格展示。切换到批模式之后，这次查询读取表的有限状态并结束。多执行几次，可以观察写入提交后词频如何变化。这里重置的是会话中后续作业使用的检查点选项，不是在远程取消已经提交的流式写入作业。

切回流模式，追踪计数区间的变化

第二种读取方式让查询持续运行：

SET 'execution.runtime-mode' = 'streaming';

SELECT `interval`, COUNT(*) AS interval_cnt
FROM (
    SELECT cnt / 10000 AS `interval`
    FROM word_count
)
GROUP BY `interval`;

内层把累计词频按 cnt / 10000 归类，外层统计每个结果值对应多少个词。当某个词的累计计数变化、跨过分组边界时，查询的分组统计也会更新。这里的 interval 是列别名，反引号用来避免与 SQL 关键字冲突；它不是时间窗口。这个演示使用整数计数，具体表达式的类型与除法语义仍应以所选 Flink 版本的 SQL 类型推导为准。

流式结果可能表现为插入、更新或撤回形式的变化，不能把每一条终端输出都当成新的独立事实累加。批模式回答“当前已提交表是什么样”，流模式回答“表接下来发生了什么变化”。本次未运行集群，因此没有附造出来的终端表格或性能数字。

退出时同时处理作业、客户端和集群

先在 Flink 控制台取消持续运行的写入作业和流式查询，再退出 SQL 客户端：

-- 仅在确实要删除表及其数据时，才自行取消下一行注释。
-- DROP TABLE word_count;

EXIT;

DROP TABLE 具有删除表及清理数据文件的风险，原文也将它留在注释中；本文保持这一默认。退出客户端不等于所有已经提交的作业都结束。最后停止本地集群：

/path/to/flink/bin/stop-cluster.sh

让 Flink 管理写入缓冲内存

教程最后介绍 Paimon sink 使用执行器内存池的方式。默认情况下，每个任务自行分配和管理堆内存缓冲；当一个 TaskManager 上的任务很多时，这些独立内存池可能造成性能问题，甚至 OOM。启用 Flink managed memory 后，由 Flink 协调 writer buffer 的资源分配。

原文第二个选项的说明先强调按权重分配、实际值依赖环境，随后又称当前该值等于运行时实际分配量，表述存在张力。不能据此向任意集群承诺每个 writer 都恰好获得 256 MiB；应结合目标版本实现与运行指标核对。

INSERT INTO paimon_table
/*+ OPTIONS(
    'sink.use-managed-memory-allocator' = 'true',
    'sink.managed.writer-buffer-memory' = '256M'
) */
SELECT * FROM source_table;

原文用 SELECT * FROM .... 表示尚未填写的查询；这里改成了命名占位表 source_table，读者仍需先创建真实源表和目标表。它说明的是 hint 的位置，并非可以直接接着前面执行的完整作业。

用动态选项覆盖当前作业的表配置

有些参数可以临时调整，而不修改 Catalog 中保存的表选项。表级动态键格式为 paimon.${catalogName}.${dbName}.${tableName}.${config_key}；目录、数据库或表名位置可以用 * 通配。全局动态键直接使用 ${config_key}，对所有表生效。出现冲突时，表级选项覆盖全局选项。

-- 所有表使用这个时间戳
SET 'scan.timestamp-millis' = '1697018249001';
SELECT * FROM T;

-- 指定目录、数据库和表
SET 'paimon.mycatalog.default.T.scan.timestamp-millis' = '1697018249000';
SELECT * FROM T;

-- 任意目录的 default.T
SET 'paimon.*.default.T.scan.timestamp-millis' = '1697018249000';
SELECT * FROM T;

-- T1 与其他表采用不同的扫描时间戳
SET 'paimon.mycatalog.default.T1.scan.timestamp-millis' = '1697018249000';
SET 'scan.timestamp-millis' = '1697018249001';
-- SELECT * FROM T1 JOIN T2 ON <实际连接条件>;

这些时间戳是原文演示值，表名也是示意。它们不保证你的仓库保留了相应快照，更不适合无条件复制进当前词频演示。最后一行原文写成 ON xxxx，本文改为注释中的占位条件，避免把非完整 SQL 伪装成可直接运行的代码。动态选项在当前会话的作业配置中生效；试验结束应清理不再需要的覆盖项，避免后续查询误用历史时间点。

来源：Quick Start（Paimon 2.0）；补充核对：Filesystems。版权：© 2023–2026 The Apache Software Foundation；Apache Paimon、Paimon 及其标志是 ASF 商标。Apache Paimon 项目按 Apache License 2.0 提供代码；本译稿为中文翻译整理，保留项目版权与来源，并在下方附完整许可文本及与本文相关的 NOTICE 署名。新增说明与原创配图均已标明。
