A. Distributed arrays and automatic parallelization

Distributed arrays and automatic parallelization

源 fenced block 01：notebook 代码单元

import jax
import jax.numpy as jnp
jax.config.update('jax_num_cpu_devices', 8)

Distributed arrays and automatic parallelization

源 fenced block 02：notebook 代码单元

jax.set_mesh(jax.make_mesh((4, 2), ('X', 'Y')))  # explicit mode by default

x = jnp.arange(8 * 4.).reshape(8, 4)
x = jax.device_put(x, jax.P('X', 'Y'))
print(jax.typeof(x))  # f32[8@X, 4@Y]

Distributed arrays and automatic parallelization

源 fenced block 03：notebook 代码单元

jax.debug.visualize_array_sharding(x)

Distributed arrays and automatic parallelization

源 fenced block 04：notebook 代码单元

y = jnp.sin(x).T
print(jax.typeof(y))  # f32[4@Y, 8@X]

A `Mesh` is a grid of devices with named axes

源 fenced block 05：notebook 代码单元

from __future__ import annotations
import enum

class AbstractMesh:
  axis_sizes: tuple[int, ...]
  axis_names: tuple[str, ...]
  axis_types: tuple[AxisType, ...]

class AxisType(enum.Enum):
  Auto = enum.auto()
  Explicit = enum.auto()
  Manual = enum.auto()

A `Mesh` is a grid of devices with named axes

源 fenced block 06：notebook 代码单元

import numpy as np

class Mesh:
  devices: np.ndarray[jax.Device]
  axis_names: tuple[str, ...]
  axis_types: tuple[AxisType, ...]

  @property
  def axis_sizes(self) -> tuple[int, ...]:
    return self.devices.shape

A `Mesh` is a grid of devices with named axes

源 fenced block 07：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('X', 'Y'))
print(mesh)

A `Mesh` is a grid of devices with named axes

源 fenced block 08：notebook 代码单元

jax.set_mesh(mesh)

A `Mesh` is a grid of devices with named axes

源 fenced block 09：notebook 代码单元

@jax.jit
def f(x):
  abstract_mesh = jax.sharding.AbstractMesh((8,), ('A',), (jax.sharding.AxisType.Explicit,))
  with jax.sharding.use_abstract_mesh(abstract_mesh):
    y = jax.reshard(x, jax.P('A', None))
    return y * 2

z = f(x)
print(jax.typeof(z))  # f32[8@A, 4]

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 10：notebook 代码单元

print(x.sharding)
jax.debug.visualize_array_sharding(x)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 11：notebook 代码单元

for s in x.addressable_shards:
  print(s.device, s.data, sep='\n', end='\n\n')

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 12：notebook 代码单元

y = jax.device_put(x, jax.P('Y', 'X'))
print(y.sharding)
jax.debug.visualize_array_sharding(y)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 13：notebook 代码单元

y = jax.reshard(x, jax.P('Y', 'X'))
print(y.sharding)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 14：notebook 代码单元

y = jax.device_put(x, jax.P('X', None))
print(y.sharding)
jax.debug.visualize_array_sharding(y)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 15：notebook 代码单元

for s in y.addressable_shards:
  print(s.device, s.data, sep='\n', end='\n\n')

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 16：notebook 代码单元

y = jax.device_put(x, jax.P(('X', 'Y')))
print(y.sharding)
jax.debug.visualize_array_sharding(y)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 17：notebook 代码单元

y = jax.device_put(x, jax.P('X', None, unreduced={'Y'}))
print(y.sharding)

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 18：notebook 代码单元

for s in y.addressable_shards:
  print(s.device, s.data, sep='\n', end='\n\n')

A `Sharding` describes how array values are laid out over a `Mesh`

源 fenced block 19：notebook 代码单元

mesh2 = jax.make_mesh((8,), ('A',))
z = jax.device_put(x, jax.NamedSharding(mesh2, jax.P('A', None)))
print(z.sharding)
print(y.sharding)

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 20：notebook 代码单元

print(jax.typeof(x).sharding)

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 21：notebook 代码单元

jax.jit(lambda x: print(jax.typeof(x).sharding))(x)

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 22：原文未标语言的伪语法块

 <array_type> ::= <dtype>[<size_and_sharding>, ...]
 <size_and_sharding> ::= <size> | <size>@<MeshAxisName>

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 23：notebook 代码单元

x = jax.device_put(np.arange(4).reshape(4, 1), jax.P("X", None))
y = jax.device_put(np.arange(8).reshape(1, 8), jax.P(None, "Y"))

z = x + y

print(f"{jax.typeof(x)=!s}")
print(f"{jax.typeof(y)=!s}")
print(f"{jax.typeof(z)=!s}")

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 24：notebook 代码单元

@jax.jit
def add_arrays(x, y):
  z = x + y
  print(f"{jax.typeof(x)=!s}")
  print(f"{jax.typeof(y)=!s}")
  print(f"{jax.typeof(z)=!s}")
  return z

add_arrays(x, y)

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 25：notebook 代码单元

x = jax.random.normal(jax.random.key(0), (8, 4),
                      out_sharding=jax.P('X', 'Y'))
print(jax.typeof(x))

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 26：notebook 代码单元

y = x.sum(0)
print(jax.typeof(y))

Explicit sharding mode makes sharding queryable at trace time

源 fenced block 27：notebook 代码单元

compile_txt = jax.jit(lambda x: x.sum(0)).lower(x).compile().as_text()
print('all-reduce(' in compile_txt)

Result shardings follow simple rules, or error and require annotation

源 fenced block 28：notebook 代码单元

x = jax.device_put(jnp.arange(8 * 4.).reshape(8, 4), jax.P(None, 'X'))
y = jax.device_put(jnp.arange(4 * 16.).reshape(4, 16), jax.P('X', None))

try:
  jnp.dot(x, y)
except Exception as e:
  print("ERROR!")
  print(e)

Result shardings follow simple rules, or error and require annotation

源 fenced block 29：notebook 代码单元

z = jnp.dot(x, y, out_sharding=jax.P('X', None))

print(jax.typeof(z))

With `@auto_axes` the compiler chooses shardings within the decorated function

源 fenced block 30：notebook 代码单元

from jax.sharding import auto_axes, explicit_axes

x = jax.device_put(np.arange(16).reshape(4, 4), jax.P("X", None))
y = jax.device_put(np.arange(16).reshape(4, 4), jax.P(None, "X"))

try:
  x + y
except Exception as e:
  print("ERROR!")
  print(e)

With `@auto_axes` the compiler chooses shardings within the decorated function

源 fenced block 31：notebook 代码单元

@auto_axes
def add2(x, y):
  print("We're in auto-sharding mode here. This is the current mesh:\n"
        f"{jax.sharding.get_abstract_mesh()}")
  return x + y

result = add2(x, y, out_sharding=jax.P("X", None))
print(f"Result type: {jax.typeof(result)}")

Auto sharding mode decides shardings automatically during compilation

源 fenced block 32：notebook 代码单元

Auto = jax.sharding.AxisType.Auto
auto_mesh = jax.make_mesh((4, 2), ('X', 'Y'), (Auto, Auto))
jax.set_mesh(auto_mesh)

x = jax.device_put(jnp.arange(8 * 4. ).reshape(8, 4 ), jax.P(None, 'X'))
y = jax.device_put(jnp.arange(4 * 16.).reshape(4, 16), jax.P('X', None))

z = jnp.dot(x, y)  # not an error!

Auto sharding mode decides shardings automatically during compilation

源 fenced block 33：notebook 代码单元

print(z.sharding)  # works at the top level only (i.e. outside `jit`)

Auto sharding mode decides shardings automatically during compilation

源 fenced block 34：notebook 代码单元

@jax.jit
def f(x, y):
  z = jnp.dot(x, y)
  z = jax.lax.with_sharding_constraint(z, jax.P('X', None))
  return z

z = f(x, y)
print(z.sharding)

Auto sharding mode decides shardings automatically during compilation

源 fenced block 35：notebook 代码单元

@explicit_axes
def explicit_g(y):
  print(f'mesh inside g: {jax.sharding.get_abstract_mesh()}')
  print(f'y.sharding inside g: {jax.typeof(y) = }')
  z = y * 2
  print(f'z.sharding inside g: {jax.typeof(z) = }', end='\n\n')
  return z

@jax.jit
def f(arr1):
  print(f'mesh inside f: {jax.sharding.get_abstract_mesh()}', end='\n\n')
  x = jnp.sin(arr1)
  z = explicit_g(x, in_sharding=jax.P("X", "Y"))
  return z + 1

x = jax.device_put(np.arange(16).reshape(4, 4), jax.P("X", "Y"))
f(x)

Concrete array shardings can mention `Auto` mesh axes

源 fenced block 36：notebook 代码单元

jax.set_mesh(jax.make_mesh((4, 2), ('X', 'Y')))  # Explicit mode

def compare_shardings(x):
  print(f"=== with mesh: {jax.sharding.get_abstract_mesh()} ===")
  print(f"Concrete value sharding: {x.sharding.spec}")
  print(f"Type-specified sharding: {jax.typeof(x).sharding.spec}\n")

my_array = jnp.sin(jax.device_put(np.arange(8), jax.P("X")))
compare_shardings(my_array)

@auto_axes
def check_in_auto_context(x):
  compare_shardings(x)
  return x

check_in_auto_context(my_array, out_sharding=jax.P("X"))

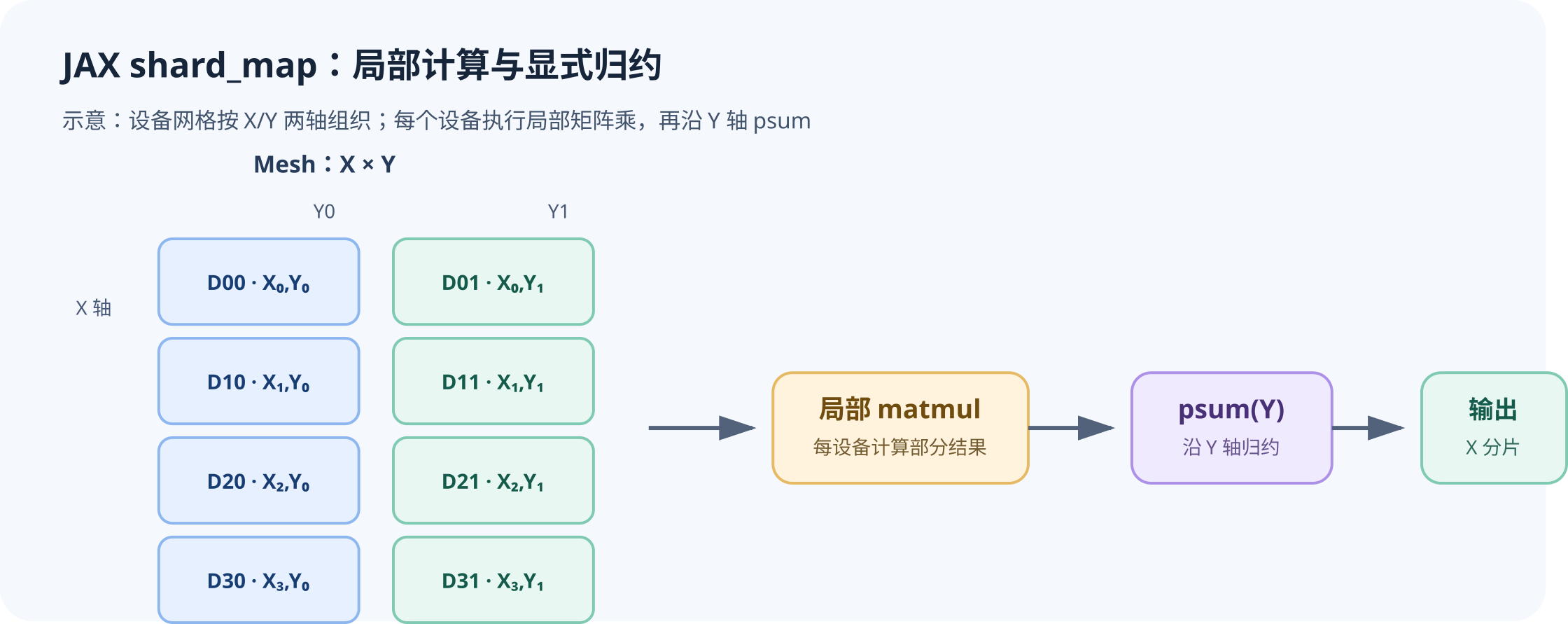

Manual mode lets you write explicit collectives with a per-device view of data

源 fenced block 37：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('X', 'Y'))
jax.set_mesh(mesh)

x = jax.device_put(jnp.arange(8 * 4. ).reshape(8, 4 ), jax.P(None, 'X'))
y = jax.device_put(jnp.arange(4 * 16.).reshape(4, 16), jax.P('X', None))

@jax.shard_map(out_specs=jax.P('X', None))
def matmul(x_shard, y_shard):
  z_summand = jnp.dot(x_shard, y_shard)
  return jax.lax.psum_scatter(z_summand, 'X', tiled=True)

z = matmul(x, y)
print(jax.typeof(z))

z_ref = jnp.dot(x, y, out_sharding=jax.P('X', None))
print(jnp.allclose(z_ref, z))

Specifying and reading layouts

源 fenced block 38：独立 Python 代码片段

import jax, jax.numpy as jnp
from jax.experimental.layout import Layout, Format
from jax.sharding import SingleDeviceSharding
import numpy as np

def init_fn(x, y):
  return x * 2, y * 3

def apply_fn(x, y):
  return x[0, :], y[:, 0]

Specifying and reading layouts

源 fenced block 39：独立 Python 代码片段

shape = (4 * 128, 8 * 128)
duck = jax.ShapeDtypeStruct(shape, jnp.float32)

# Compile the `apply` function with layouts inferred automatically
apply_exe = jax.jit(
    apply_fn,
    in_shardings=Format(Layout.AUTO),
    out_shardings=Format(Layout.AUTO),
).trace(duck, duck).lower().compile()

# Read back the inferred input layout
arg_formats, kwarg_formats = apply_exe.input_formats
assert len(kwarg_formats) == 0
assert arg_formats[0].layout.major_to_minor == (0, 1)
assert arg_formats[1].layout.major_to_minor == (1, 0)

Specifying and reading layouts

源 fenced block 40：独立 Python 代码片段

init_exe = jax.jit(init_fn, out_shardings=arg_formats).trace(
    duck, duck).lower().compile()

assert init_exe.output_formats == arg_formats

Specifying and reading layouts

源 fenced block 41：独立 Python 代码片段

def test(x, y, msg):
  print(f'-- {msg}:')
  print('x major_to_minor =', x.format.layout.major_to_minor)
  print('y major_to_minor =', y.format.layout.major_to_minor)
  try:
    apply_exe(x, y)
    print('-> `apply` called successfully')
  except ValueError as e:
    assert 'does not match' in str(e)
    print('-> error: mismatched input layouts')
  print()

dev = jax.devices()[0]

x1 = y1 = jnp.ones(shape)
test(x1, y1, 'uncommitted with mismatched layout')

x2, y2 = init_exe(x1, y1)
test(x2, y2, 'uncommitted with matching layout')

x3 = jnp.ones(shape)
y3 = jax.device_put(np.ones(shape), Format(Layout(major_to_minor=(1, 0)),
                                           SingleDeviceSharding(dev)))
test(x3, y3, 'committed with matching layout')

x4 = jnp.ones(shape)
y4 = jax.device_put(np.ones(shape), Format(Layout(major_to_minor=(0, 1)),
                                           SingleDeviceSharding(dev)))
test(x4, y4, 'committed with mismatched layout')

Specifying and reading layouts

源 fenced block 42：官方文本输出

-- uncommitted with mismatched layout:
x major_to_minor = (0, 1)
y major_to_minor = (0, 1)
-> `apply` called successfully

-- uncommitted with matching layout:
x major_to_minor = (0, 1)
y major_to_minor = (1, 0)
-> `apply` called successfully

-- committed with matching layout:
x major_to_minor = (0, 1)
y major_to_minor = (1, 0)
-> `apply` called successfully

-- committed with mismatched layout:
x major_to_minor = (0, 1)
y major_to_minor = (0, 1)
-> error: mismatched input layouts

Constraining intermediate layouts

源 fenced block 43：独立 Python 代码片段

from jax.experimental.layout import with_layout_constraint

@jax.jit
def f(x):
  y = x.T
  # Enforce a specific layout on `y`
  y = with_layout_constraint(y, Layout(major_to_minor=(0, 1)))
  return y * 2

B. Manual parallelism with shard_map

Overview

源 fenced block 01：notebook 代码单元

import jax

jax.config.update('jax_num_cpu_devices', 8)  # Use 8 CPU devices

So, let's see a `shard_map`!

源 fenced block 02：notebook 代码单元

from functools import partial

import jax
import jax.numpy as jnp

Explicit = jax.sharding.AxisType.Explicit
Auto = jax.sharding.AxisType.Auto

So, let's see a `shard_map`!

源 fenced block 03：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('x', 'y'))
jax.set_mesh(mesh)

a = jax.device_put(jnp.arange( 8 * 16.).reshape(8, 16), jax.P('x', 'y'))
b = jax.device_put(jnp.arange(16 *  4.).reshape(16, 4), jax.P('y', None))

@jax.shard_map(in_specs=(jax.P('x', 'y'), jax.P('y', None)), out_specs=jax.P('x', None))
def matmul_basic(a_block, b_block):
  # a_block: f32[2, 8]
  # b_block: f32[8, 4]
  c_partialsum = jnp.dot(a_block, b_block)
  c_block = jax.lax.psum(c_partialsum, 'y')
  # c_block: f32[2, 4]
  return c_block

c = matmul_basic(a, b)   # c: f32[8, 4]

So, let's see a `shard_map`!

源 fenced block 04：notebook 代码单元

from jax.tree_util import tree_map, tree_all

def allclose(a, b):
  return tree_all(tree_map(partial(jnp.allclose, atol=1e-2, rtol=1e-2), a, b))

allclose(c, jnp.dot(a, b, out_sharding=jax.P('x', None)))

So, let's see a `shard_map`!

源 fenced block 05：notebook 代码单元

jax.debug.visualize_array_sharding(c)

So, let's see a `shard_map`!

源 fenced block 06：notebook 代码单元

a = jax.device_put(a, jax.P('x', 'y'))
b = jax.device_put(b, jax.P('y', None))

@jax.jit
def matmul_reference(a, b):
  return jnp.dot(a, b, out_sharding=jax.P('x', None))

c_ref = matmul_reference(a, b)
allclose(c_ref, jnp.dot(a, b, out_sharding=jax.P('x', None)))

So, let's see a `shard_map`!

源 fenced block 07：notebook 代码单元

print('a blocks:'); jax.debug.visualize_array_sharding(a)
print('b blocks:'); jax.debug.visualize_array_sharding(b)
print('c blocks:'); jax.debug.visualize_array_sharding(c)

Rank-reducing vs rank-preserving maps

源 fenced block 08：notebook 代码单元

def check_vmap(f, xs):
  ans = jax.vmap(f, in_axes=(0,), out_axes=0)(xs)
  expected = jnp.stack([f(x) for x in xs])  # vmap reference semantics
  print(allclose(ans, expected))

check_vmap(lambda x: x @ x, jnp.arange(12).reshape(4, 3))

Rank-reducing vs rank-preserving maps

源 fenced block 09：notebook 代码单元

import numpy as np
mesh = jax.make_mesh((4,), ('i',), (Auto,))  # mesh.shape['i'] = 4
jax.set_mesh(mesh)

def check_shmap(f, y):
  ans = jax.shard_map(f, in_specs=jax.P('i'), out_specs=jax.P('i'))(y)
  expected = jnp.concatenate([f(y_blk) for y_blk in jnp.split(y, mesh.shape['i'])])
  print(allclose(ans, expected))

check_shmap(lambda x: x.T @ x, jnp.arange(32).reshape(8, 4))

Controlling how each input is split (unconcatenated) and tiled with `in_specs`

源 fenced block 10：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('i', 'j'))
jax.set_mesh(mesh)

@jax.shard_map(in_specs=jax.P('i', None), out_specs=jax.P('i', 'j'))
def f1(x_block):
  print(x_block.shape)  # prints (3, 12)
  return x_block

x1 = jax.device_put(jnp.arange(12 * 12).reshape(12, 12), jax.P('i', None))
y = f1(x1)

Controlling how each input is split (unconcatenated) and tiled with `in_specs`

源 fenced block 11：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P('i', 'j'))
def f2(x_block):
  print(x_block.shape)
  return x_block

x = jnp.arange(12 * 12).reshape(12, 12)
x_ = jnp.tile(x, (1, mesh.shape['j']))  # x_ has shape (12, 24)
x_ = jax.device_put(x_, jax.P('i', 'j'))
y = f2(x_)  # prints (3,12), and f1(x) == f2(x_)

Controlling how each output is assembled by concatenation, block transposition, and untiling using `out_specs`

源 fenced block 12：notebook 代码单元

auto_mesh = jax.make_mesh((4, 2), ('i', 'j'), (Auto, Auto))
with jax.set_mesh(auto_mesh):
  x = jnp.array([[3.]])

  z = jax.shard_map(lambda: x, in_specs=(), out_specs=jax.P('i', 'j'))()
  print(z)  # prints the same as jnp.tile(x, (4, 2))

  z = jax.shard_map(lambda: x, in_specs=(), out_specs=jax.P('i', None))()
  print(z)  # prints the same as jnp.tile(x, (4, 1))

  z = jax.shard_map(lambda: x, in_specs=(), out_specs=jax.P(None, None))()
  print(z)  # prints the same as jnp.tile(x, (1, 1)), or just x

Controlling how each output is assembled by concatenation, block transposition, and untiling using `out_specs`

源 fenced block 13：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P('i', None))
def f3(x_block):
  return jax.lax.psum(x_block, 'j')

x = jax.device_put(jnp.arange(12 * 12).reshape(12, 12), jax.P('i', 'j'))
y3 = f3(x)
print(y3.shape)

Controlling how each output is assembled by concatenation, block transposition, and untiling using `out_specs`

源 fenced block 14：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P(None, 'j'))
def f4(x_block):
  return jax.lax.psum(x_block, 'i')

x = jax.device_put(jnp.arange(12 * 12).reshape(12, 12), jax.P('i', 'j'))
y4 = f4(x)
print(y4.shape)  # (3,12)


@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P(None, None))
def f5(x_block):
  return jax.lax.psum(x_block, ('i', 'j'))

y5 = f5(x)
print(y5.shape)  # (3,6)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 15：notebook 代码单元

mesh = jax.make_mesh((2,), ('i',))
jax.set_mesh(mesh)

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f(x):
  print(x)
  return 2 * x

x = jax.device_put(jnp.arange(6.), jax.P('i'))
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 16：notebook 代码单元

@jax.shard_map(in_specs=jax.P(), out_specs=jax.P())
def f(x):
  print(x)
  return 2 * x

x = jnp.arange(6.)
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 17：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P())
def f(x):
  y = jax.lax.psum(x, 'i')
  print(y)
  return y

x = jax.device_put(jnp.arange(6.), jax.P('i'))
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 18：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P())
def f(x):
  print(jax.typeof(x))  # float32[3]{V:i}
  y = jax.lax.psum(x, 'i')
  print(jax.typeof(y))  # float32[3]
  return y

x = jax.device_put(jnp.arange(6.), jax.P('i'))
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 19：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('i', 'j'))
jax.set_mesh(mesh)

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P('i'))
def f(x):
  print(jax.typeof(x))  # float32[2,2]{V:(i,j)}
  y = jax.lax.psum(x, 'j')
  assert jax.typeof(y).manual_axis_type.varying == {'i'}
  print(jax.typeof(y))  # float32[2,2]{V:i}
  return y

x = jax.device_put(jnp.arange(8 * 4.).reshape(8, 4), jax.P('i', 'j'))
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 20：notebook 代码单元

mesh = jax.make_mesh((2,), ('i',))
jax.set_mesh(mesh)

x = jax.device_put(jnp.arange(6.), jax.P('i'))
try:
  y = jax.shard_map(lambda x: x, in_specs=jax.P('i'), out_specs=jax.P())(x)
except Exception as e:
  print(e)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 21：notebook 代码单元

@jax.shard_map(in_specs=jax.P(), out_specs=None)
def f(x):
  print(jax.typeof(x))  # float32[6]
  y = jax.lax.pcast(x, 'i', to='varying')
  print(jax.typeof(y))  # float32[6]{V:i}

x = jnp.arange(6.)
f(x)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 22：notebook 代码单元

@jax.shard_map(in_specs=(jax.P('i'), jax.P()), out_specs=jax.P('i'))
def f(x, y):
  return x * y

x = jax.device_put(jnp.arange(6.), jax.P('i'))
y = jnp.arange(3.)
print(jax.jit(f).trace(x, y).jaxpr)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 23：notebook 代码单元

mesh = jax.make_mesh((2,), ('i',))
jax.set_mesh(mesh)

@jax.shard_map(in_specs=(jax.P('i'), jax.P()), out_specs=jax.P('i'))
def f(x, y):
  def body(carry, _):
    c1, c2 = carry
    return (c2, c1), ()  # swap the carry
  (x_, y_), _ = jax.lax.scan(body, (x, y), (), length=2)
  return x_, y_

x = jax.device_put(jnp.arange(6.), jax.P('i'))
y = jnp.arange(3.)

try:
  f(x, y)
except Exception as e:
  print(e)

Tracking how values vary over manual mesh axes, and `check_vma=True`

源 fenced block 24：notebook 代码单元

mesh = jax.make_mesh((2,), ('i',))
jax.set_mesh(mesh)

@jax.shard_map(in_specs=(jax.P('i'), jax.P()), out_specs=jax.P('i'))
def f(x, y):
  def body(carry, _):
    c1, c2 = carry
    return (c2, c1), ()  # swap the carry

  y = jax.lax.pcast(y, 'i', to='varying')  # apply pcast to fix the error
  (x_, y_), _ = jax.lax.scan(body, (x, y), (), length=2)
  return x_, y_

x = jax.device_put(jnp.arange(6.), jax.P('i'))
y = jnp.arange(3.)

f(x, y)

Two more manual types: `unreduced` and `reduced`

源 fenced block 25：notebook 代码单元

mesh = jax.make_mesh((2,), ('i',))
jax.set_mesh(mesh)

x_sharded = jax.device_put(jnp.arange(8.), jax.P('i'))
x_replicated = jnp.arange(4.)
x_unreduced = jnp.einsum('i,i->', x_sharded, x_sharded,
                         out_sharding=jax.P(unreduced={'i'}))
x_reduced = jax.reshard(x_replicated, jax.P(reduced={'i'}))

@jax.shard_map(in_specs=(jax.P('i'), jax.P(), jax.P(unreduced={'i'}),
                         jax.P(reduced={'i'})),
               out_specs=jax.P('i'))
def f(a, b, c, d):
  print(jax.typeof(a))  # float32[4]{V:i}
  print(jax.typeof(b))  # float32[4]
  print(jax.typeof(c))  # float32[]{U:i}
  print(jax.typeof(d))  # float32[4]{R:i}
  return a

_ = f(x_sharded, x_replicated, x_unreduced, x_reduced)

API specification

源 fenced block 26：独立 Python 代码片段

from jax.sharding import Mesh, AbstractMesh, Infer
Specs = PyTree[PartitionSpec]

def shard_map(
    f: Callable | None = None, /, *, out_specs: Specs,
    in_specs: Specs | Infer = Infer,
    mesh: Mesh | AbstractMesh | None = None,
    axis_names: collections.abc.Set[AxisName] = frozenset(),
    check_vma: bool = True,
) -> Callable:
  ...

Collectives tutorial

源 fenced block 27：独立 Python 代码片段

mesh = jax.make_mesh((8,), ('i',))
x = jnp.arange(16.)
f_shmapped = jax.shard_map(f, in_specs=jax.P('i'), out_specs=jax.P('i'))
y = f_shmapped(x)

Collectives tutorial

源 fenced block 28：独立 Python 代码片段

def f_shmapped_ref(x):
  x_blocks = jnp.array_split(x, mesh.shape['i'])
  y_blocks = [f(x_blk) for x_blk in x_blocks]
  return jnp.concatenate(y_blocks)

Collectives tutorial

源 fenced block 29：独立 Python 代码片段

def f(x_blk):
  z_blk = f_part1(x_blk)
  u_blk = collective(z_blk, axis_name)
  v_blk = f_part2(x_blk, z_blk, u_blk)
  return v_blk

Collectives tutorial

源 fenced block 30：独立 Python 代码片段

def f_shmapped_ref(x):
  x_blocks = jnp.array_split(x, mesh.shape[axis_name])
  z_blocks = [f_part1(x_blk) for x_blk in x_blocks]
  u_blocks = [collective_ref(i, z_blocks) for i in range(len(z_blocks))]
  v_blocks = [f_part2(x_blk, z_blk, u_blk) for x_blk, z_blk, u_blk
              in zip(x_blocks, z_blocks, u_blocks)]
  return jnp.concatenate(v_blocks)

`psum`

源 fenced block 31：notebook 代码单元

import jax
import jax.numpy as jnp
from jax import lax

`psum`

源 fenced block 32：notebook 代码单元

mesh1d = jax.make_mesh((4,), ('i',), (Auto,))
jax.set_mesh(mesh1d)

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P(None))
def f1(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.psum(x_block, 'i')
  print('AFTER:\n', y_block)
  return y_block

`psum`

源 fenced block 33：notebook 代码单元

x = jnp.array([3, 1, 4, 1, 5, 9, 2, 6, 5, 3, 5, 8, 9, 7, 1, 2])
y = f1(x)
print('FINAL RESULT:\n', y)

`psum`

源 fenced block 34：独立 Python 代码片段

def psum_ref(_, x_blocks):
  tot = sum(x_blocks)
  return [tot] * len(x_blocks)

`psum`

源 fenced block 35：notebook 代码单元

mesh2d = jax.make_mesh((2, 2), ('i', 'j'), (Auto, Auto))
jax.set_mesh(mesh2d)

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P(None, 'j'))
def f2(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.psum(x_block, 'i')
  print('AFTER:\n', y_block)
  return y_block

y = f2(jnp.arange(16).reshape(4, 4))
print('FINAL RESULT:\n', y)

`psum`

源 fenced block 36：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i', 'j'), out_specs=jax.P(None, None))
def f3(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.psum(x_block, ('i', 'j'))
  print('AFTER:\n', y_block)
  return y_block

y = f3(jnp.arange(16).reshape(4, 4))
print('FINAL RESULT:\n', y)

`all_gather`

源 fenced block 37：notebook 代码单元

jax.set_mesh(mesh1d)

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f4(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.all_gather(x_block, 'i', tiled=True)
  print('AFTER:\n', y_block)
  return y_block

x = jnp.array([3, 9, 5, 2])
y = f4(x)
print('FINAL RESULT:\n', y)

`all_gather`

源 fenced block 38：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f5(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.all_gather(x_block, 'i', tiled=False)
  print('AFTER:\n', y_block)
  return y_block

y = f5(x)
print('FINAL RESULT:\n', y)

`all_gather`

源 fenced block 39：独立 Python 代码片段

def all_gather_ref(_, x_blocks, *, tiled=False):
  combine = jnp.concatenate if tiled else jnp.stack
  return [combine(x_blocks)] * len(x_blocks)

`psum_scatter`

源 fenced block 40：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f6(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.psum_scatter(x_block, 'i', tiled=True)
  print('AFTER:\n', y_block)
  return y_block

x = jnp.array([3, 1, 4, 1, 5, 9, 2, 6, 5, 3, 5, 8, 9, 7, 1, 2])
y = f6(x)
print('FINAL RESULT:\n', y)

`psum_scatter`

源 fenced block 41：独立 Python 代码片段

def psum_scatter_ref(i, x_blocks, *, tiled=False):
  axis_size = len(x_blocks)
  tot = sum(x_blocks)
  if tiled:
    tot = tot.reshape(axis_size, -1, *tot.shape[1:])  # split leading axis
  return [tot[i] for i in range(tot.shape[0])]

`psum_scatter`

源 fenced block 42：独立 Python 代码片段

def psum(x, axis_name):
  summed_chunk = jax.lax.psum_scatter(x, axis_name)
  return jax.lax.all_gather(summed_chunk, axis_name)

`ppermute`

源 fenced block 43：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f7(x_block):
  sz = jax.lax.axis_size('i')
  print('BEFORE:\n', x_block)
  y_block = jax.lax.ppermute(x_block, 'i', [(i, (i + 1) % sz) for i in range(sz)])
  print('AFTER:\n', y_block)
  return y_block

y = f7(jnp.arange(8))
print('FINAL RESULT:\n', y)

`ppermute`

源 fenced block 44：独立 Python 代码片段

def ppermute_ref(i, x_blocks, perm):
  results = [jnp.zeros_like(x_blocks[0])] * len(x_blocks)
  for src, dst in perm:
    results[dst] = x_blocks[src]
  return results

`ppermute`

源 fenced block 45：notebook 代码单元

def psum_scatter(x, axis_name, *, tiled=False):
  size = jax.lax.axis_size(axis_name)
  idx = jax.lax.axis_index(axis_name)  # function instance index along axis_name
  if tiled:
    x = x.reshape(size, -1, *x.shape[1:])  # split leading axis
  shift = partial(jax.lax.ppermute, axis_name=axis_name,
                  perm=[(i, (i - 1) % size) for i in range(size)])
  for i in range(1, size):
    update = shift(x[(idx + i) % size])
    x = x.at[(idx + i + 1) % size].add(update)
  return x[idx]

`ppermute`

源 fenced block 46：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f8(x_block):
  print('BEFORE:\n', x_block)
  y_block = psum_scatter(x_block, 'i', tiled=True)
  print('AFTER:\n', y_block)
  return y_block

x = jnp.array([3, 1, 4, 1, 5, 9, 2, 6, 5, 3, 5, 8, 9, 7, 1, 2])
y = f8(x)
print('FINAL RESULT:\n', y)

`all_to_all`

源 fenced block 47：notebook 代码单元

@jax.shard_map(in_specs=jax.P('i'), out_specs=jax.P('i'))
def f9(x_block):
  print('BEFORE:\n', x_block)
  y_block = jax.lax.all_to_all(x_block, 'i', split_axis=0, concat_axis=0,
                               tiled=True)
  print('AFTER:\n', y_block)
  return y_block

x = jnp.array([3, 1, 4, 1, 5, 9, 2, 6, 5, 3, 5, 8, 9, 7, 1, 2])
y = f9(x)
print('FINAL RESULT:\n', y)

`all_to_all`

源 fenced block 48：独立 Python 代码片段

def all_to_all_ref(_, x_blocks, *, tiled=False):
  axis_size = len(x_blocks)
  if tiled:
    splits = [jnp.array_split(x, axis_size) for x in x_blocks]
    return [jnp.concatenate(s) for s in zip(*splits)]
  else:
    splits = [list(x) for x in x_blocks]
    return [jnp.stack(s) for s in zip(*splits)]

Matrix multiplies

源 fenced block 49：notebook 代码单元

import jax
import jax.numpy as jnp

Matrix multiplies

源 fenced block 50：notebook 代码单元

mesh = jax.make_mesh((4,), ('i',), (Auto,))
jax.set_mesh(mesh)

def device_put(x, pspec):
  return jax.device_put(x, pspec)

Example 1: `all_gather` on one side

源 fenced block 51：notebook 代码单元

lhs_spec = jax.P('i', None)
lhs = device_put(jax.random.normal(jax.random.key(0), (8, 8)), lhs_spec)

Example 1: `all_gather` on one side

源 fenced block 52：notebook 代码单元

rhs_spec = jax.P('i', None)
rhs = device_put(jax.random.normal(jax.random.key(1), (8, 4)), rhs_spec)

Example 1: `all_gather` on one side

源 fenced block 53：notebook 代码单元

@jax.jit
@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_allgather(lhs_block, rhs_block):
  rhs = jax.lax.all_gather(rhs_block, 'i', tiled=True)
  return lhs_block @ rhs

Example 1: `all_gather` on one side

源 fenced block 54：notebook 代码单元

out = matmul_allgather(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Example 1: `all_gather` on one side

源 fenced block 55：notebook 代码单元

@jax.jit
@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_allgather_overlapped(lhs_block, rhs_block):
  size = jax.lax.axis_size('i')
  idx = jax.lax.axis_index('i')
  shift = partial(jax.lax.ppermute, axis_name='i',
                  perm=[(i, (i + 1) % size) for i in range(size)])

  B = lhs_block.shape[1] // size
  lhs_blocks = lambda i: lax.dynamic_slice_in_dim(lhs_block, i * B, B, 1)

  out_block = lhs_blocks(idx) @ rhs_block
  for i in range(1, size):
    rhs_block = shift(rhs_block)
    out_block += lhs_blocks((idx - i) % size) @ rhs_block
  return out_block

Example 1: `all_gather` on one side

源 fenced block 56：notebook 代码单元

out = matmul_allgather_overlapped(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Example 1: `all_gather` on one side

源 fenced block 57：notebook 代码单元

@jax.jit
@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_allgather_overlapped_bidi(lhs_block, rhs_block):
  size = jax.lax.axis_size('i')
  idx = jax.lax.axis_index('i')
  shift_up = partial(jax.lax.ppermute, axis_name='i',
                     perm=[(i, (i + 1) % size) for i in range(size)])
  shift_dn = partial(jax.lax.ppermute, axis_name='i',
                     perm=[(i, (i - 1) % size) for i in range(size)])

  B = lhs_block.shape[1] // size // 2  # half-size blocks
  lhs_blocks = lambda i, hi: lax.dynamic_slice_in_dim(lhs_block, (2*i+hi) * B, B, 1)

  def block_matmul(rhs_lo, rhs_hi, i_lo, i_hi):
    lhs_lo = jnp.pad(lhs_blocks(i_lo, 0), [(0, 0), (0, B)])
    lhs_hi = jnp.pad(lhs_blocks(i_hi, 1), [(0, 0), (B, 0)])
    rhs_lo = jnp.pad(rhs_lo, [(0, B), (0, 0)])
    rhs_hi = jnp.pad(rhs_hi, [(B, 0), (0, 0)])
    return (lhs_lo + lhs_hi) @ (rhs_lo + rhs_hi)

  rhs_block_lo, rhs_block_hi = jnp.split(rhs_block, 2, axis=0)
  out_block = block_matmul(rhs_block_lo, rhs_block_hi, idx, idx)
  for i in range(1, size):
    rhs_block_lo = shift_up(rhs_block_lo)
    rhs_block_hi = shift_dn(rhs_block_hi)
    out_block += block_matmul(rhs_block_lo, rhs_block_hi,
                              (idx - i) % size, (idx + i) % size)
  return out_block

Example 1: `all_gather` on one side

源 fenced block 58：notebook 代码单元

out = matmul_allgather_overlapped_bidi(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Example 2: `psum_scatter` the result

源 fenced block 59：notebook 代码单元

lhs_spec = jax.P(None, 'i')
lhs = device_put(lhs, lhs_spec)

rhs_spec = jax.P('i', None)
rhs = device_put(rhs, rhs_spec)

Example 2: `psum_scatter` the result

源 fenced block 60：notebook 代码单元

@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_psumscatter(lhs_block, rhs_block):
  out_summand = lhs_block @ rhs_block
  return jax.lax.psum_scatter(out_summand, 'i', tiled=True)

out = matmul_psumscatter(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Example 2: `psum_scatter` the result

源 fenced block 61：notebook 代码单元

@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_psumscatter_overlapped(lhs_block, rhs_block):
  size = jax.lax.axis_size('i')
  idx = jax.lax.axis_index('i')
  shift = partial(jax.lax.ppermute, axis_name='i',
                  perm=[(i, (i - 1) % size) for i in range(size)])
  lhs_block = lhs_block.reshape(size, -1, lhs_block.shape[1])  # split 1st axis

  out_summand = lhs_block[(idx + 1) % size] @ rhs_block
  for i in range(1, size):
    out_summand = shift(out_summand)
    out_summand += lhs_block[(idx + i + 1) % size] @ rhs_block
  return out_summand

Example 2: `psum_scatter` the result

源 fenced block 62：notebook 代码单元

out = matmul_psumscatter_overlapped(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Example 2: `psum_scatter` the result

源 fenced block 63：notebook 代码单元

@jax.shard_map(in_specs=(lhs_spec, rhs_spec),
               out_specs=rhs_spec)
def matmul_psumscatter_overlapped_bidi(lhs_block, rhs_block):
  size = jax.lax.axis_size('i')
  idx = jax.lax.axis_index('i')
  shift_up = partial(jax.lax.ppermute, axis_name='i',
                     perm=[(i, (i + 1) % size) for i in range(size)])
  shift_dn = partial(jax.lax.ppermute, axis_name='i',
                     perm=[(i, (i - 1) % size) for i in range(size)])

  B = lhs_block.shape[0] // size // 2  # half-size blocks
  lhs_blocks = lambda i, hi: lax.dynamic_slice_in_dim(lhs_block, (2*i+hi) * B, B, 0)

  out_summand_lo = lhs_blocks((idx - 1) % size, 0) @ rhs_block
  out_summand_hi = lhs_blocks((idx + 1) % size, 1) @ rhs_block
  for i in range(1, size):
    out_summand_lo = shift_up(out_summand_lo)
    out_summand_hi = shift_dn(out_summand_hi)
    out_summand_lo += lhs_blocks((idx - i - 1) % size, 0) @ rhs_block
    out_summand_hi += lhs_blocks((idx + i + 1) % size, 1) @ rhs_block
  return jnp.concatenate([out_summand_lo, out_summand_hi])

Example 2: `psum_scatter` the result

源 fenced block 64：notebook 代码单元

out = matmul_psumscatter_overlapped_bidi(lhs, rhs)
print(jnp.allclose(out, lhs @ rhs, atol=1e-3, rtol=1e-3))

Neural networks

源 fenced block 65：notebook 代码单元

import jax
import jax.numpy as jnp

def predict(params, inputs):
  for W, b in params:
    outputs = jnp.dot(inputs, W) + b
    inputs = jax.nn.relu(outputs)
  return outputs

def loss(params, batch):
  inputs, targets = batch
  predictions = predict(params, inputs)
  return jnp.mean(jnp.sum((predictions - targets) ** 2, axis=-1))

Neural networks

源 fenced block 66：notebook 代码单元

def init_layer(key, n_in, n_out):
  k1, k2 = jax.random.split(key)
  W = jax.random.normal(k1, (n_in, n_out)) / jnp.sqrt(n_in)
  b = jax.random.normal(k2, (n_out,))
  return W, b

def init(key, layer_sizes, batch_size):
  key, *keys = jax.random.split(key, len(layer_sizes))
  params = list(map(init_layer, keys, layer_sizes[:-1], layer_sizes[1:]))

  key, *keys = jax.random.split(key, 3)
  inputs = jax.random.normal(keys[0], (batch_size, layer_sizes[0]))
  targets = jax.random.normal(keys[1], (batch_size, layer_sizes[-1]))

  return params, (inputs, targets)

Neural networks

源 fenced block 67：notebook 代码单元

layer_sizes = [784, 128, 128, 128, 128, 128, 8]
batch_size = 32

params, batch = init(jax.random.key(0), layer_sizes, batch_size)

8-way batch data parallelism

源 fenced block 68：notebook 代码单元

mesh = jax.make_mesh((8,), ('batch',))
jax.set_mesh(mesh)

# replicate initial params on all devices, shard data batch over devices
batch = jax.device_put(batch, jax.P('batch'))
params = jax.device_put(params, jax.P())

# adapt the loss function to sum the losses across devices
@jax.shard_map(out_specs=jax.P())
def loss_dp(params, local_batch):
  inputs, targets = local_batch
  predictions = predict(params, inputs)  # use reference `predict`
  local_loss = jnp.mean(jnp.sum((predictions - targets)**2, axis=-1))
  return jax.lax.pmean(local_loss, 'batch')

8-way batch data parallelism

源 fenced block 69：notebook 代码单元

print(jax.jit(loss)(params, batch))
print(jax.jit(loss_dp)(params, batch))

8-way batch data parallelism

源 fenced block 70：notebook 代码单元

def allclose(a, b):
  return tree_all(tree_map(partial(jnp.allclose, atol=1e-2, rtol=1e-2), a, b))

print(allclose(jax.jit(jax.grad(loss))(params, batch),
               jax.jit(jax.grad(loss_dp))(params, batch)))

8-way batch data parallelism

源 fenced block 71：notebook 代码单元

jaxpr = jax.jit(jax.value_and_grad(loss_dp)).trace(params, batch).jaxpr
for line in str(jaxpr).splitlines():
  if 'psum' in line:
    print(line)

8-way fully sharded data parallelism (FSDP)

源 fenced block 72：notebook 代码单元

# shard data batch *and params* over devices
mesh = jax.make_mesh((8,), ('batch',))
jax.set_mesh(mesh)
batch = jax.device_put(batch, jax.P('batch'))
params = jax.device_put(params, jax.P('batch'))

# gather weights just before their use, and (via remat) re-gather them on the
# backward pass rather than saving them
@jax.remat
def layer_fsdp(W_frag, b_frag, inputs):
  W = jax.lax.all_gather(W_frag, 'batch', tiled=True)
  b = jax.lax.all_gather(b_frag, 'batch', tiled=True)
  return jnp.dot(inputs, W) + b

def predict_fsdp(params_frag, inputs):
  for W_frag, b_frag in params_frag:
    outputs = layer_fsdp(W_frag, b_frag, inputs)
    inputs = jax.nn.relu(outputs)
  return outputs

@jax.shard_map(out_specs=jax.P())
def loss_fsdp(local_params, local_batch):
  inputs, targets = local_batch
  predictions = predict_fsdp(local_params, inputs)
  local_loss = jnp.mean(jnp.sum((predictions - targets) ** 2, axis=-1))
  return jax.lax.pmean(local_loss, 'batch')

8-way fully sharded data parallelism (FSDP)

源 fenced block 73：notebook 代码单元

repl_params = jax.device_put(params, jax.P())
repl_batch = jax.device_put(batch, jax.P())
print(jax.jit(loss)(repl_params, repl_batch))
print(jax.jit(loss_fsdp)(params, batch))

print(allclose(jax.jit(jax.grad(loss))(repl_params, repl_batch),
               jax.jit(jax.grad(loss_fsdp))(params, batch)))

8-way fully sharded data parallelism (FSDP)

源 fenced block 74：notebook 代码单元

hlo = jax.jit(jax.grad(loss_fsdp)).lower(params, batch).compile().as_text()
print(hlo.count('all-gather('))

8-way tensor parallelism (TP)

源 fenced block 75：notebook 代码单元

mesh = jax.make_mesh((8,), ('feats',))
jax.set_mesh(mesh)

batch = jax.device_put(batch, jax.P(None, 'feats'))
params = jax.device_put(params, jax.P('feats'))

def predict_tp(params, inputs):
  for W, b in params:
    outputs = gemm_tp(inputs, W, b)
    inputs = jax.nn.relu(outputs)
  return outputs

@jax.shard_map(in_specs=(jax.P(None, 'feats'), jax.P('feats', None), jax.P('feats')),
               out_specs=jax.P(None, 'feats'))
def gemm_tp(inputs, W, b):
  block_result = jnp.dot(inputs, W)
  return jax.lax.psum_scatter(block_result, 'feats',
                              scatter_dimension=1, tiled=True) + b

def loss_tp(params, batch):
  inputs, targets = batch
  predictions = predict_tp(params, inputs)
  return jnp.mean(jnp.sum((predictions - targets) ** 2, axis=-1))  # NOTE psum!

8-way tensor parallelism (TP)

源 fenced block 76：notebook 代码单元

repl_params = jax.device_put(params, jax.P())
repl_batch = jax.device_put(batch, jax.P())
print(jax.jit(loss)(repl_params, repl_batch))
print(jax.jit(loss_tp)(params, batch))

print(allclose(jax.jit(jax.grad(loss))(repl_params, repl_batch),
               jax.jit(jax.grad(loss_tp))(params, batch)))

FSDP + TP, with `shard_map` at the top level

源 fenced block 77：notebook 代码单元

mesh = jax.make_mesh((4, 2), ('batch', 'feats'))
jax.set_mesh(mesh)

batch = jax.device_put(batch, jax.P('batch', 'feats'))
params = jax.device_put(params, jax.P(('feats', 'batch')))

# same as layer_fsdp, except the matmul is also tensor-parallel, as in gemm_tp
@jax.remat
def layer_fsdp_tp(W_frag, b_frag, inputs):
  W = jax.lax.all_gather(W_frag, 'batch', tiled=True)
  b = jax.lax.all_gather(b_frag, 'batch', tiled=True)
  block_result = jnp.dot(inputs, W)
  return jax.lax.psum_scatter(block_result, 'feats',
                              scatter_dimension=1, tiled=True) + b

def predict_fsdp_tp(params_frag, inputs):
  for W_frag, b_frag in params_frag:
    outputs = layer_fsdp_tp(W_frag, b_frag, inputs)
    inputs = jax.nn.relu(outputs)
  return outputs

@jax.shard_map(in_specs=(jax.P(('feats', 'batch')), jax.P('batch', 'feats')),
               out_specs=jax.P())
def loss_fsdp_tp(local_params, local_batch):
  inputs, targets = local_batch
  predictions = predict_fsdp_tp(local_params, inputs)
  sq_err = jax.lax.psum(jnp.sum((predictions - targets) ** 2, axis=-1), 'feats')
  return jax.lax.pmean(jnp.mean(sq_err), 'batch')

FSDP + TP, with `shard_map` at the top level

源 fenced block 78：notebook 代码单元

repl_params = jax.device_put(params, jax.P())
repl_batch = jax.device_put(batch, jax.P())
print(jax.jit(loss)(repl_params, repl_batch))
print(jax.jit(loss_fsdp_tp)(params, batch))

print(allclose(jax.jit(jax.grad(loss))(repl_params, repl_batch),
               jax.jit(jax.grad(loss_fsdp_tp))(params, batch)))

SPMD pipeline parallelism (PP)

源 fenced block 79：notebook 代码单元

L = len(params) - 2        # num layers, excluding first and last
N = batch_size             # batch size
F = params[0][0].shape[1]  # num features

# choose some pipeline parameters
S = 2      # number of stages
B = 8      # size of each microbatch
assert L % S == 0, "S (number of stages) must divide L (number of inner layers)"

# compute some useful quantities
M, ragged = divmod(N, B)  # M is number of microbatches
assert not ragged, "B (size of each microbatch) must divide total batch size"
K, ragged = divmod(M, S)  # K is microbatches per stage
assert not ragged, "S (number of stages) must divide number of microbatches"
print(f'{S} stages, {L // S} layer(s) per stage, {L} pipelined layers total')
print(f'{B} examples per microbatch, {M} microbatches total')

SPMD pipeline parallelism (PP)

源 fenced block 80：notebook 代码单元

mesh = jax.make_mesh((S,), ('stages',), (Auto,))

def predict_pp(params, inputs):
  (W_first, b_first), inner_params, (W_last, b_last) = params
  inputs = jax.nn.relu(jnp.dot(inputs, W_first) + b_first)
  inputs = spmd_pipeline(lambda Wb, x: jax.nn.relu(x @ Wb[0] + Wb[1]),
                        inner_params, inputs)
  outputs = jnp.dot(inputs, W_last) + b_last
  return outputs

@jax.shard_map(in_specs=((jax.P(), jax.P('stages'), jax.P()), jax.P('stages')), out_specs=jax.P())
def loss_pp(params, batch):
  inputs, targets = batch
  predictions = predict_pp(params, inputs.reshape(K, B, -1)).reshape(K * B, -1)
  local_loss = jnp.mean(jnp.sum((predictions - targets)**2, axis=-1))
  return jax.lax.pmean(local_loss, 'stages')

SPMD pipeline parallelism (PP)

源 fenced block 81：notebook 代码单元

def spmd_pipeline(fn, stage_params, inputs):
  stage = jax.lax.axis_index('stages')
  outputs = jnp.zeros_like(inputs) * jnp.nan
  state = jnp.zeros((L // S, B, F)) * jnp.nan
  for i in range(M+L-1):
    state = state.at[0].set(jnp.where(stage == 0, inputs[i % K], state[0]))
    state = jax.vmap(fn)(stage_params, state)
    outputs = outputs.at[(i-L+1) % K].set(jnp.where(stage == S-1, state[-1], outputs[(i-L+1) % K]))
    state, inputs, outputs = shift(i, state, inputs, outputs)
  outputs = jax.lax.ppermute(outputs, 'stages', [(i, (i+1) % S) for i in range(S)])
  return outputs

def shift(i, state, inputs, outputs):
  sh = lambda x, d: jax.lax.ppermute(x, 'stages', [(i, (i+d) % S) for i in range(S)])
  state = jnp.roll(state, +1, axis=0).at[0].set(sh(state[-1], +1))
  if (i % K) == (-1 % K):
    inputs = sh(inputs, +1)
  if ((i-L+1) % K) == (-1 % K):
    outputs = sh(outputs, +1)
  return state, inputs, outputs

SPMD pipeline parallelism (PP)

源 fenced block 82：notebook 代码单元

first_params, *inner_params, last_params = params
from jax.sharding import NamedSharding

Ws, bs = zip(*inner_params)
params_stacked = jnp.stack(Ws), jnp.stack(bs)
first_params = jax.device_put(first_params, NamedSharding(mesh, jax.P()))
params_stacked = jax.device_put(params_stacked, NamedSharding(mesh, jax.P('stages')))
last_params = jax.device_put(last_params, NamedSharding(mesh, jax.P()))
params_ = first_params, params_stacked, last_params

batch_ = jax.device_put(batch, NamedSharding(mesh, jax.P('stages')))

SPMD pipeline parallelism (PP)

源 fenced block 83：notebook 代码单元

jax.set_mesh(mesh)
print(jax.jit(loss_pp)(params_, batch_))

SPMD pipeline parallelism (PP)

源 fenced block 84：notebook 代码单元

_ = jax.jit(jax.grad(loss_pp))(params_, batch_)   # don't crash
