用 Chrome DevTools 检查、调整和验证 Flexbox 布局

原文:Inspect and debug CSS flexbox layouts;作者/维护方:Jecelyn Yeen / Chrome for Developers。中文翻译与技术整理:未完纪。核验日期:2026-10-05。

调试 Flexbox 时,只看页面是否“差不多居中”容易遗漏真正生效的规则。Chrome DevTools 的 Elements 面板可以识别弹性容器、直接修改布局属性,并用覆盖层显示项目的位置。本文按原指南说明这一流程;演示页面是 Centering a text element with Flexbox。

找到页面上的弹性容器

当 HTML 元素应用了 display: flex 或 display: inline-flex,Elements 面板会在对应 DOM 节点旁显示 flex 标记。它说明这个元素建立了 Flexbox 布局;应当先选中容器,再判断子项目如何排列。

容器与项目的角色不要混淆:一个元素可以是外层容器中的 flex 项目,也可以自己建立另一套 Flexbox。检查当前选中节点的 display 声明,比凭页面外观猜测更可靠。

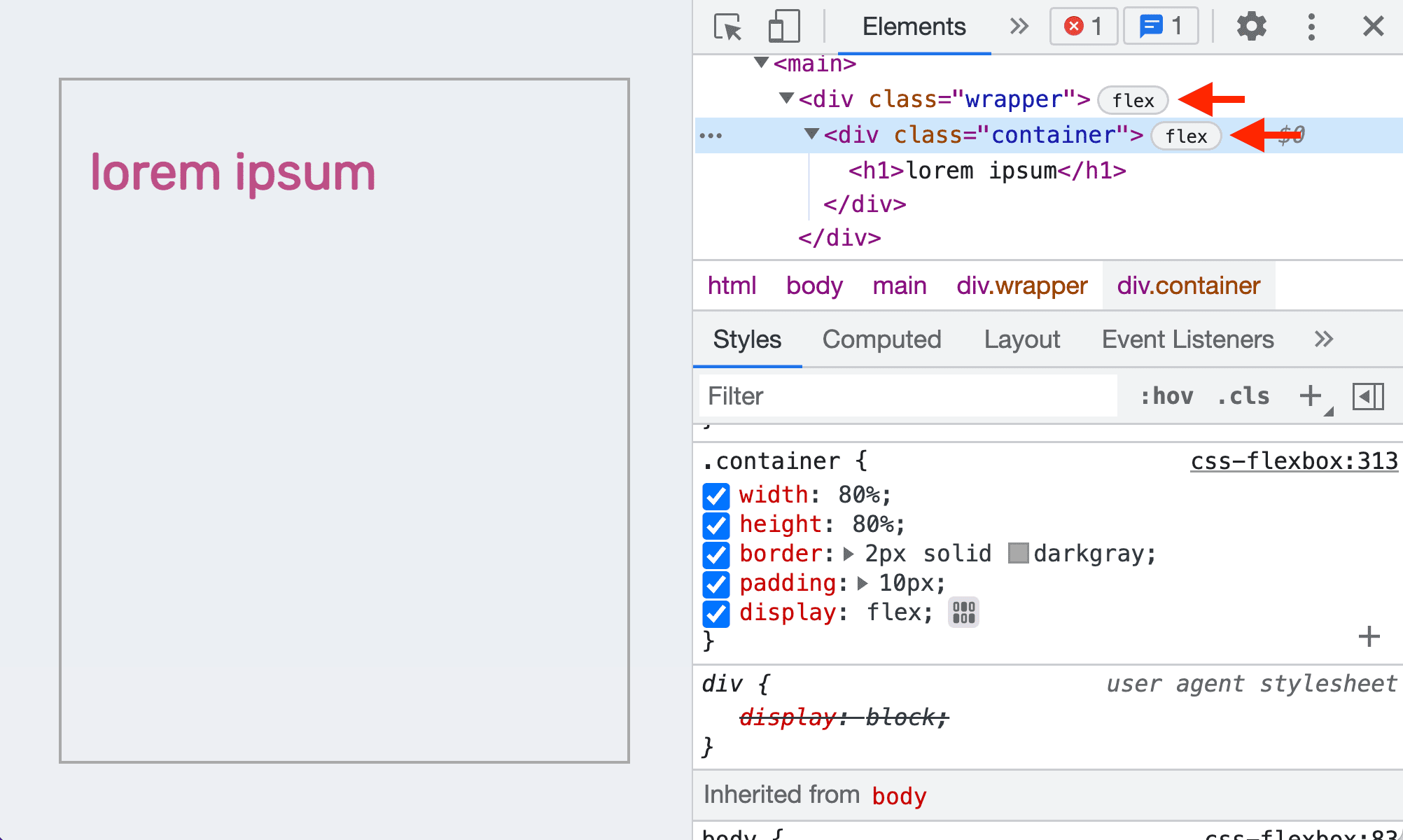

Elements面板中,弹性容器旁显示flex标记。
原文图 1:Elements面板中,弹性容器旁显示flex标记。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

打开 Flexbox 编辑器,调整对齐

原文以把 <h1> 放到 <div class="container"> 中央为例:

  1. 检查并选中容器元素。
  2. 在 Styles 区域找到 display: flex,点击声明旁的 Flexbox 编辑器按钮。
  3. 弹出编辑器会列出一组 Flexbox 属性,每个可选值用图标按钮表示。
  4. 选择 justify-content: center 和 align-items: center。
  5. 回到页面和 Styles 区域确认:文本已居中,两个声明也加入了样式规则。
.container {
  display: flex;
  justify-content: center;
  align-items: center;
}

上面是把原文操作得到的声明汇总成一个 CSS 片段,便于对照;它不是附带尺寸的完整演示页。容器要有可分配的空间,对齐效果才会明显。

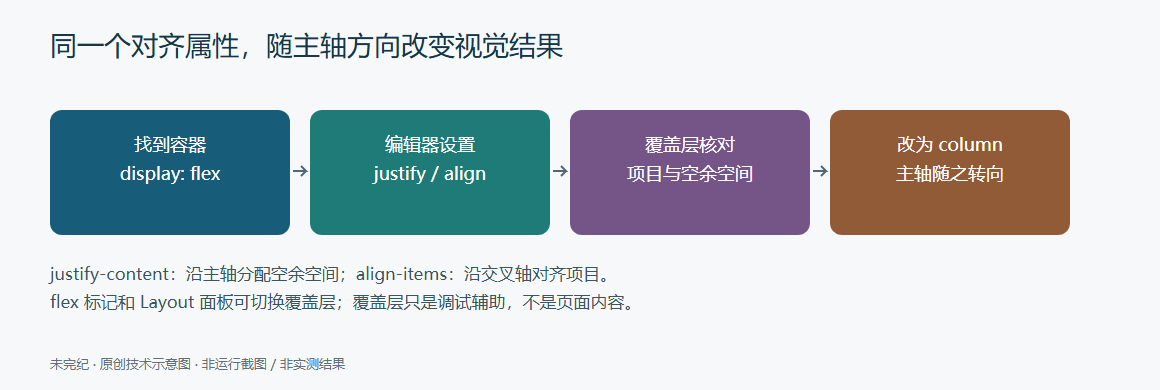

Flexbox调试流程:识别flex容器,设置justify-content和align-items,检查覆盖层,再切换column确认主轴变化。
先确认轴的方向,再解释对齐属性的效果。(未完纪原创示意图,非截图或测试结果。)

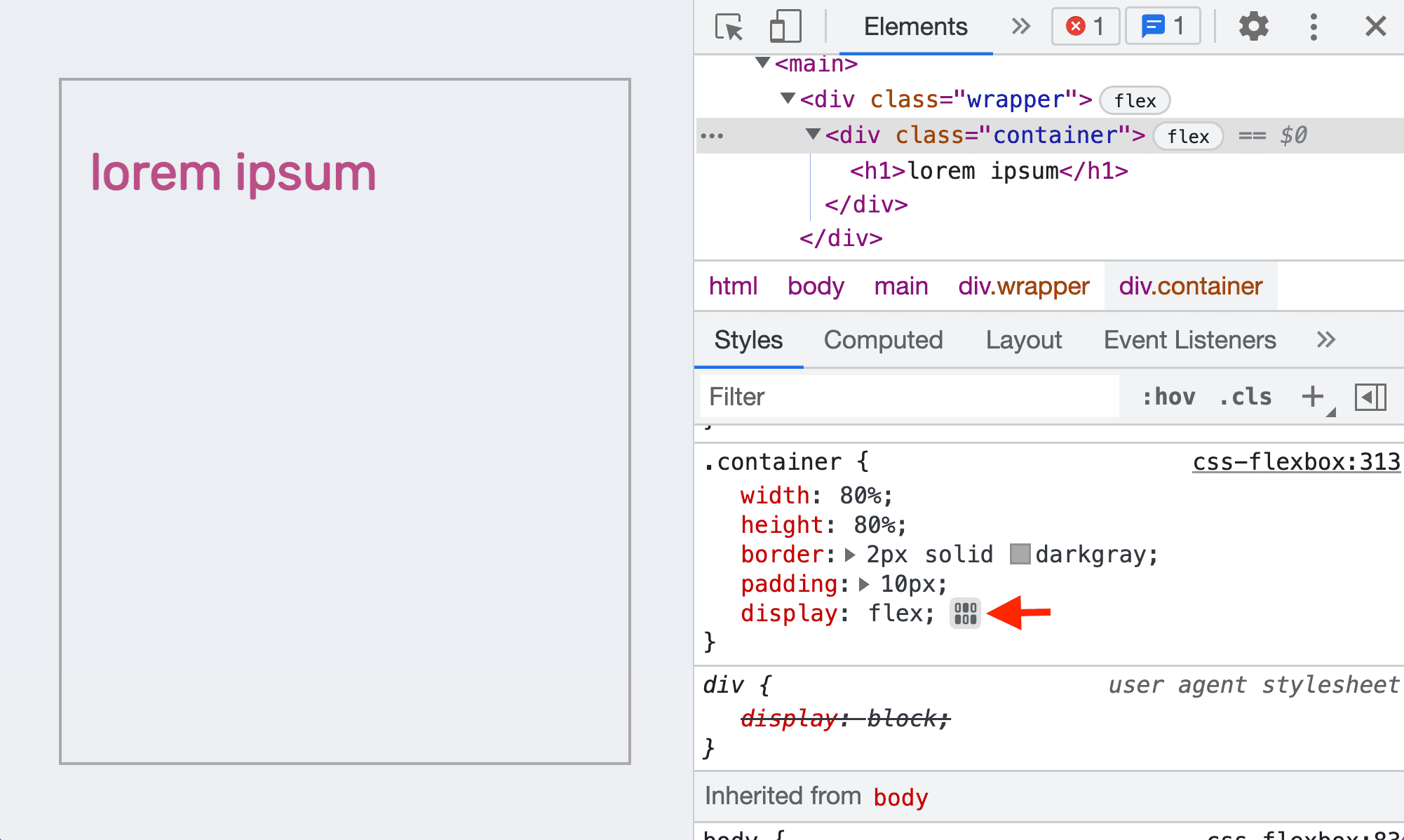

Styles面板中display:flex旁的Flexbox编辑器按钮。
原文图 2:Styles面板中display:flex旁的Flexbox编辑器按钮。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

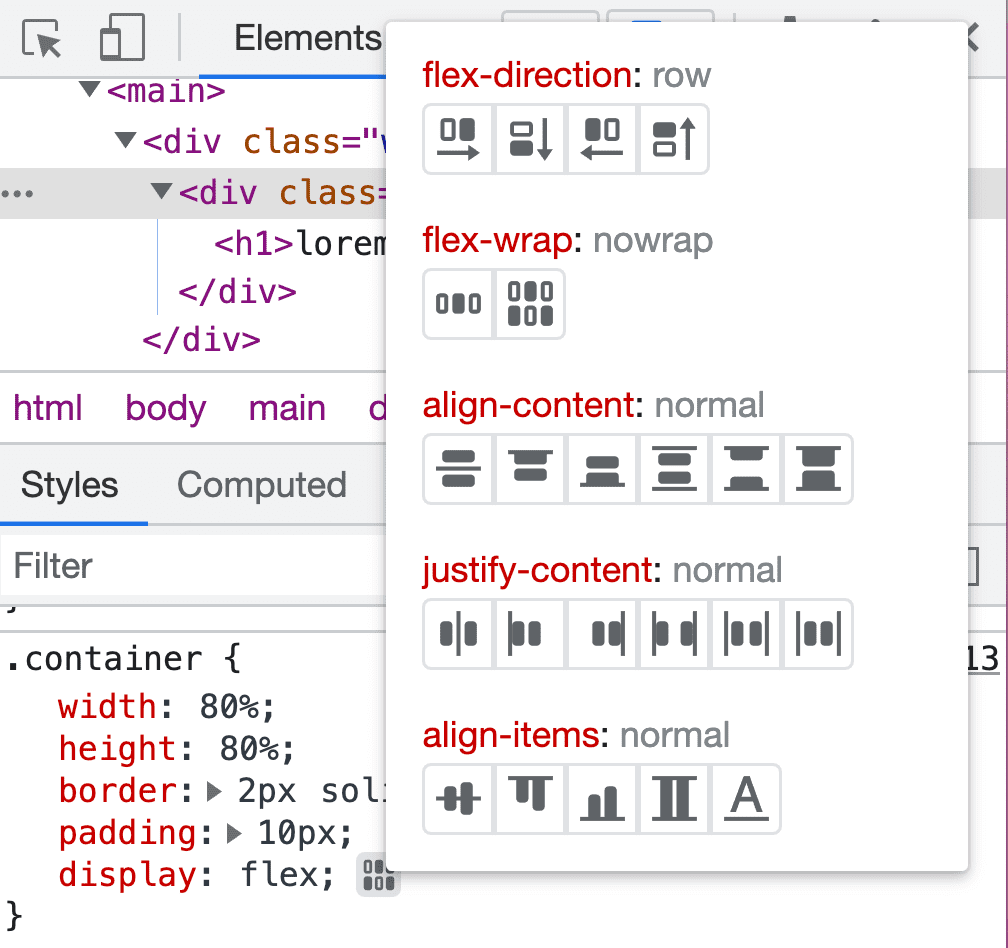

编辑器列出方向、换行、内容分配与项目对齐图标。
原文图 3:编辑器列出方向、换行、内容分配与项目对齐图标。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

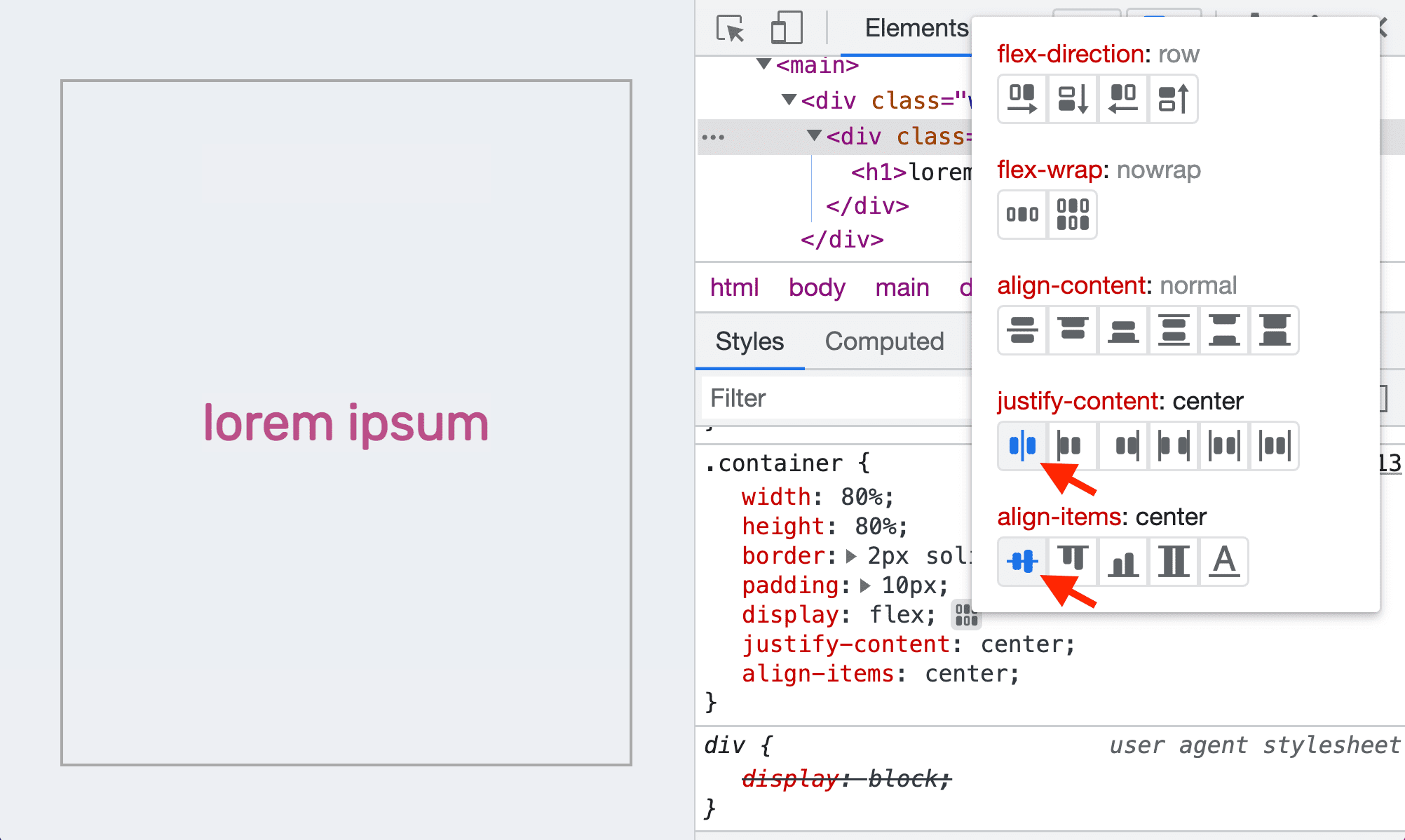

选择justify-content:center与align-items:center后文本居中。
原文图 4:选择justify-content:center与align-items:center后文本居中。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

通过覆盖层检查实际位置

在 Elements 面板将鼠标移到弹性容器上,页面会出现布局覆盖层,用虚线标出内容和项目的位置。也可以直接点击 DOM 节点旁的 flex 标记,让覆盖层保持显示或关闭。

试着把 justify-content 改成 flex-end,再观察覆盖层如何变化。与只看文字位置相比,覆盖层更方便把“项目被移动到哪里”和“容器还剩多少空间”放在一起判断。

编辑器中的图标会根据上下文改变。把 flex-direction 从默认方向改成 column 时,图标会相应旋转,覆盖层也立即更新。justify-content 始终控制主轴上的空间分配,align-items 控制交叉轴上的对齐;不能把二者永远等同于水平与垂直。

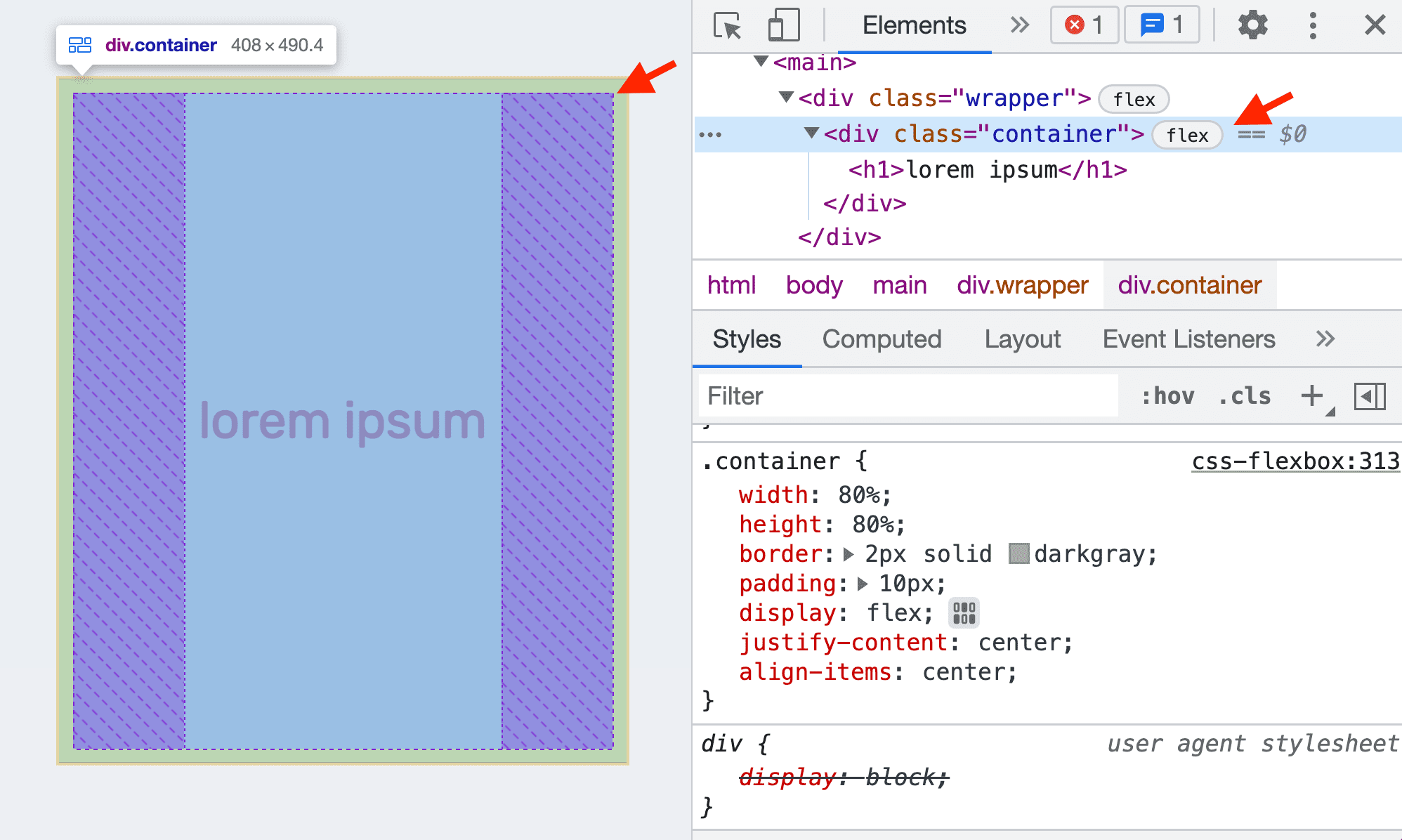

悬停弹性容器时,用覆盖层检查容器和项目的位置。
原文图 5:悬停弹性容器时,用覆盖层检查容器和项目的位置。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

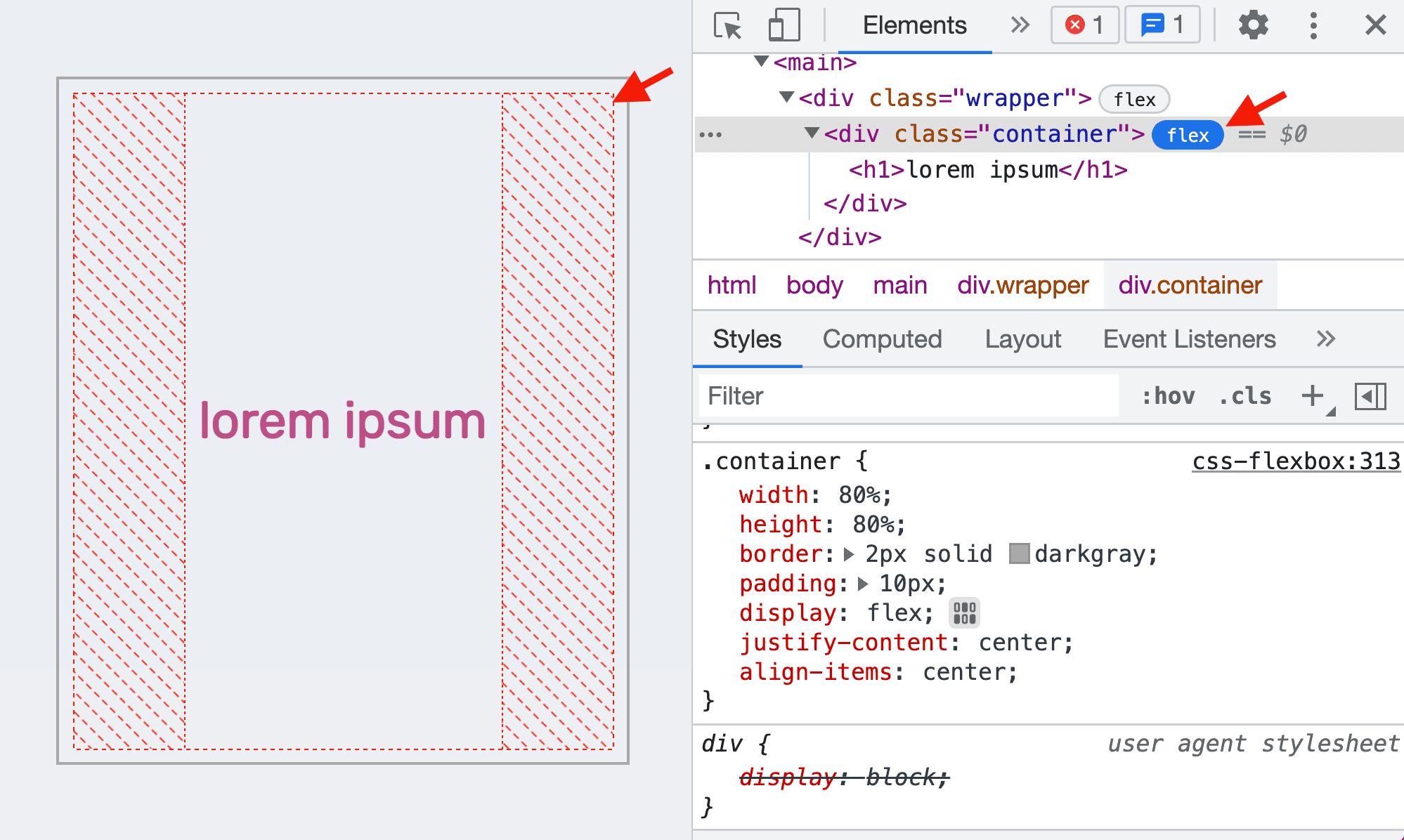

点击flex标记固定显示覆盖层。
原文图 6:点击flex标记固定显示覆盖层。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

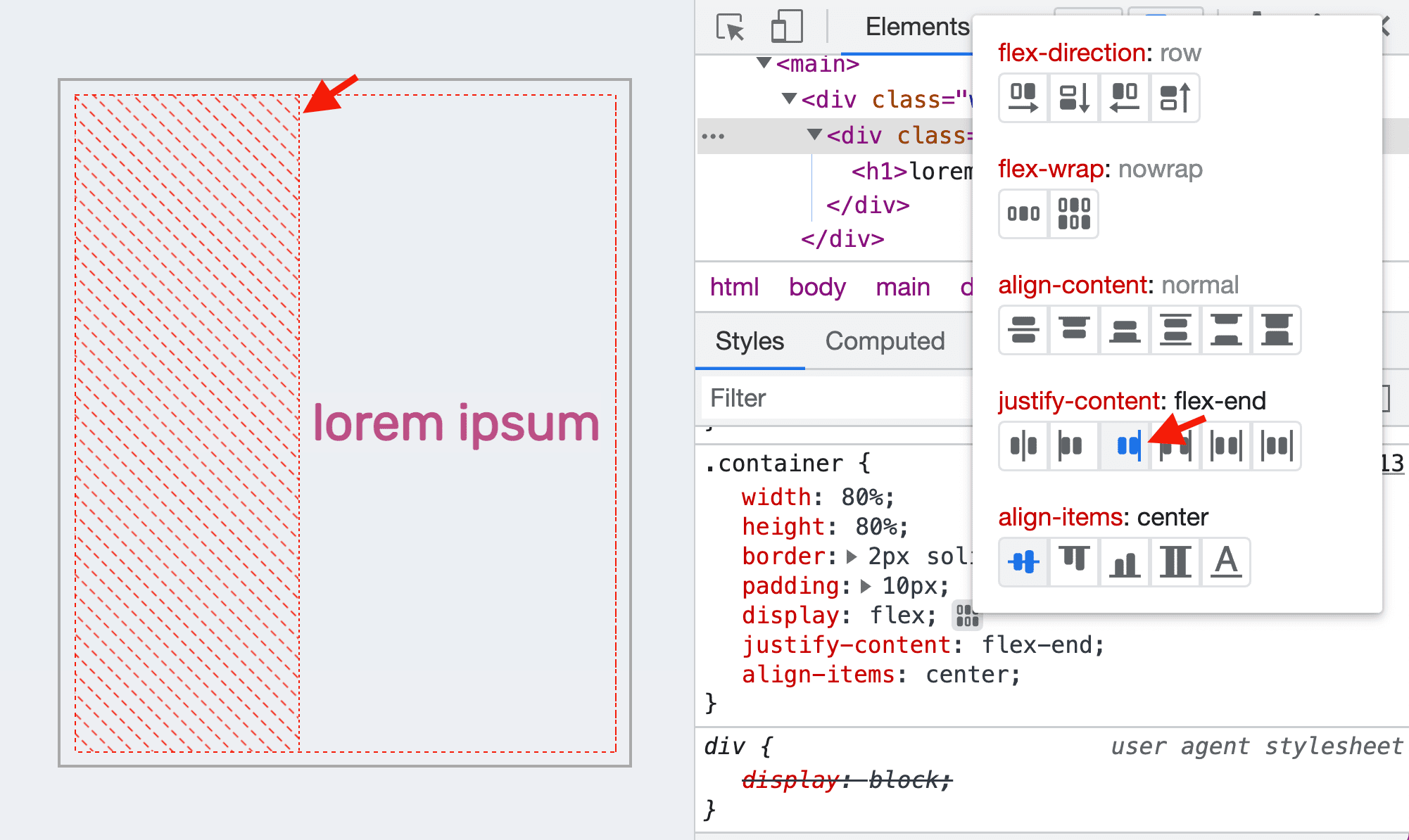

justify-content:flex-end把内容移到当前主轴末端。
原文图 7:justify-content:flex-end把内容移到当前主轴末端。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

统一管理覆盖层与颜色

打开 Layout 区域,滚动到 Flexbox 部分,可以看到页面上的弹性容器列表。每个容器旁的复选框用来开关覆盖层,作用与点击 DOM 树中的 flex 标记相同。

点击颜色图标可以改变覆盖层颜色。多个容器同时高亮时,分配不同颜色有助于区分它们;原文的示例把 container 的覆盖层改为黑色。旁边的选择器图标则可以把你带回 DOM 树中的对应元素。

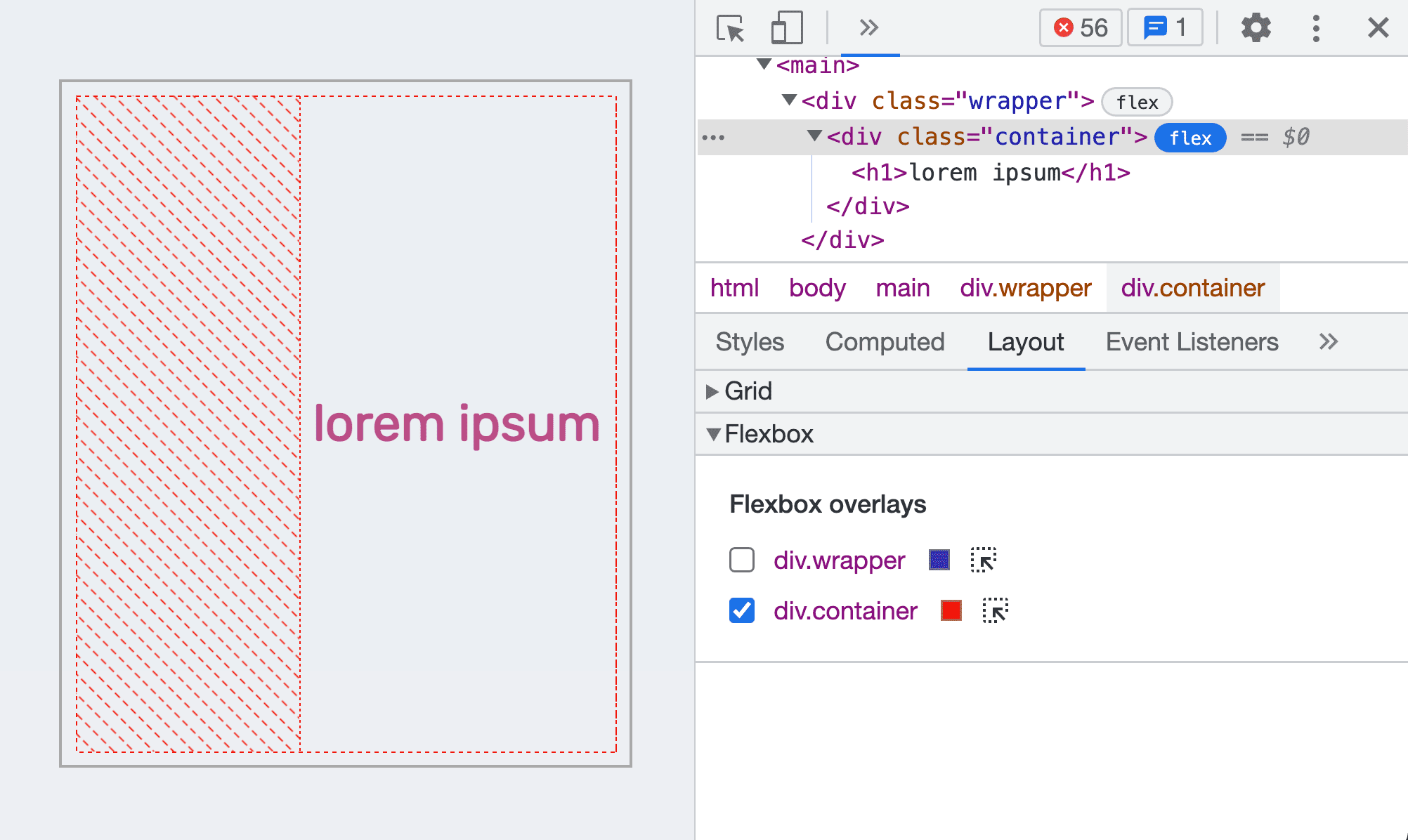

Layout面板列出Flexbox容器并控制各自覆盖层。
原文图 8:Layout面板列出Flexbox容器并控制各自覆盖层。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

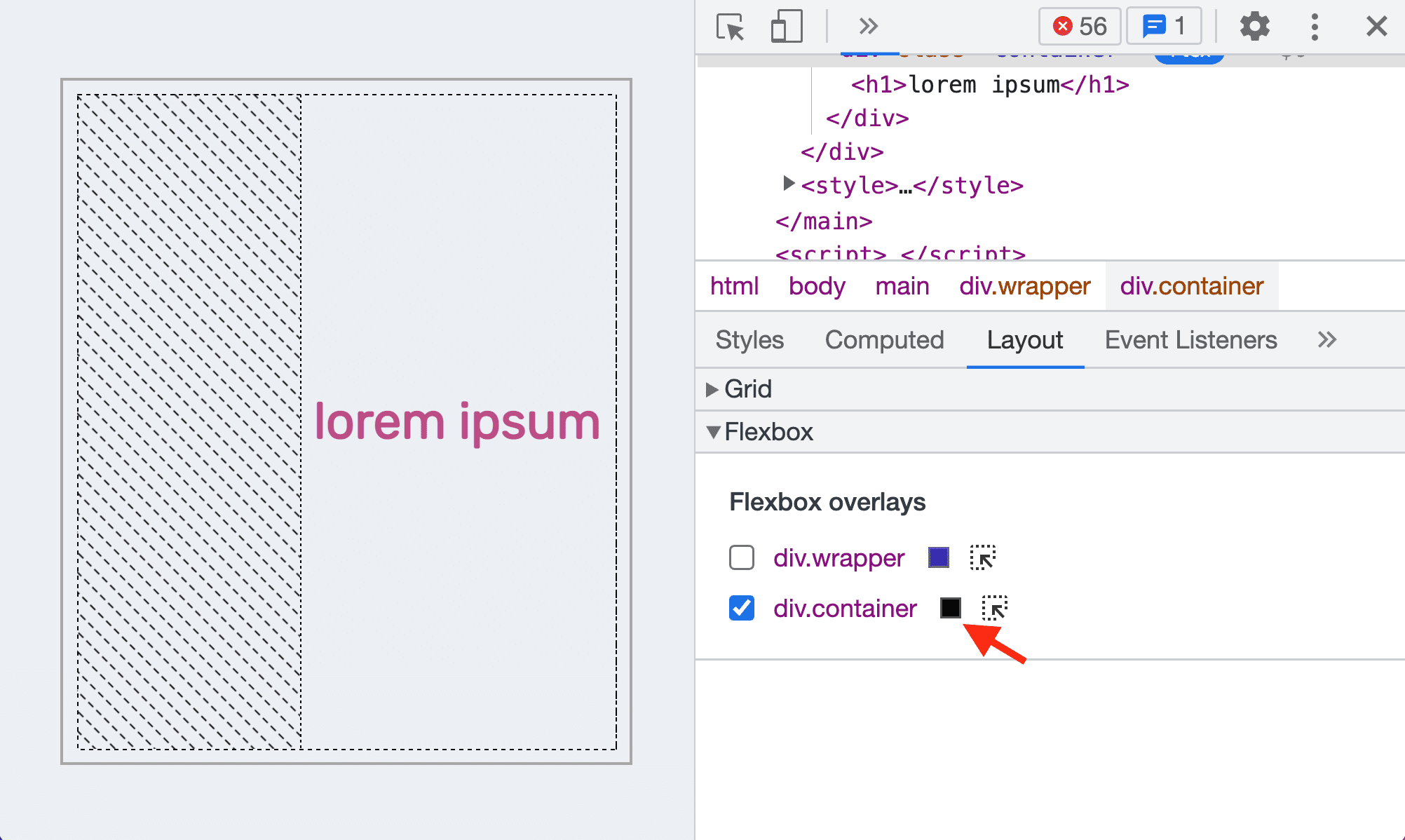

通过颜色图标将覆盖层改为黑色,旁边图标可定位DOM元素。
原文图 9:通过颜色图标将覆盖层改为黑色,旁边图标可定位DOM元素。 来源:Jecelyn Yeen / Chrome for Developers。原图保留,非本稿运行结果。

把调试结果带回项目

编辑补充:这套流程验证的是当前页面运行时的 CSS。常规 DevTools 样式修改通常是临时的,应把确认过的声明带回项目源文件,并在相应视口、文本长度和布局方向下复查。覆盖层是调试辅助,并不会成为页面内容。

原页最后更新于 2022-02-08。本文核对了当前公开正文,但没有对某个 Chrome 版本做交互实测;若按钮位置不同,应寻找同名 Elements、Styles、Layout 区域及 flex 标记。

来源、版本与使用说明

来源:Jecelyn Yeen 的原指南。除特别注明外,原页文字采用 CC BY 4.0,代码示例采用 Apache 2.0。本文为中文翻译整理,补充容器角色、轴方向及临时编辑说明,保留原指南九张操作截图,并另附原创示意图。未执行 JavaScript、未启动演示服务。
