一些信号只能观测到模 2π 的结果：相位超过一个周期后，会重新回到同一个取值区间。这种现象也会出现在二维或三维图像中。相位解缠绕要做的，是从周期折返后的数据恢复一个连续的相位场。scikit-image 的 unwrap_phase 支持一维、二维和三维输入；本文按照官方示例，先处理一幅二维图像，再观察遮罩和周期边界如何改变解缠绕路径。

这里使用的是人为生成的相位数据，目的是理解算法和边界条件，并非测量仪器采集的相位图。本次核对的页面属于 scikit-image 0.26.x 文档，代码和图均来自原示例；图中的数值是上游生成的结果，不是本文重新执行得到的结果。

把普通图像变成缠绕相位

第一步载入 scikit-image 自带的 Chelsea 猫图，用 img_as_float 转成浮点数据，再用 color.rgb2gray 转成灰度图。随后将强度重新缩放到 [0, 4π]，把灰度值当作相位。表达式 np.exp(1j * image) 将相位映射到单位圆，np.angle 再取其主值，从而产生周期折返。

原例注释将缠绕区间写成 [-π, π)；更严格地说，NumPy 的角度主值通常表述为 (-π, π]，边界还涉及浮点数和带符号零。这里的核心是每隔 2π 出现一次折返，这个端点记法不影响示例要展示的解缠绕过程。

import numpy as np
from matplotlib import pyplot as plt
from skimage import data, img_as_float, color, exposure
from skimage.restoration import unwrap_phase


# Load an image as a floating-point grayscale
image = color.rgb2gray(img_as_float(data.chelsea()))
# Scale the image to [0, 4*pi]
image = exposure.rescale_intensity(image, out_range=(0, 4 * np.pi))
# Create a phase-wrapped image in the interval [-pi, pi)
image_wrapped = np.angle(np.exp(1j * image))
# Perform phase unwrapping
image_unwrapped = unwrap_phase(image_wrapped)

fig, ax = plt.subplots(2, 2, sharex=True, sharey=True)
ax1, ax2, ax3, ax4 = ax.ravel()

fig.colorbar(ax1.imshow(image, cmap='gray', vmin=0, vmax=4 * np.pi), ax=ax1)
ax1.set_title('Original')

fig.colorbar(ax2.imshow(image_wrapped, cmap='gray', vmin=-np.pi, vmax=np.pi), ax=ax2)
ax2.set_title('Wrapped phase')

fig.colorbar(ax3.imshow(image_unwrapped, cmap='gray'), ax=ax3)
ax3.set_title('After phase unwrapping')

fig.colorbar(ax4.imshow(image_unwrapped - image, cmap='gray'), ax=ax4)
ax4.set_title('Unwrapped minus original')

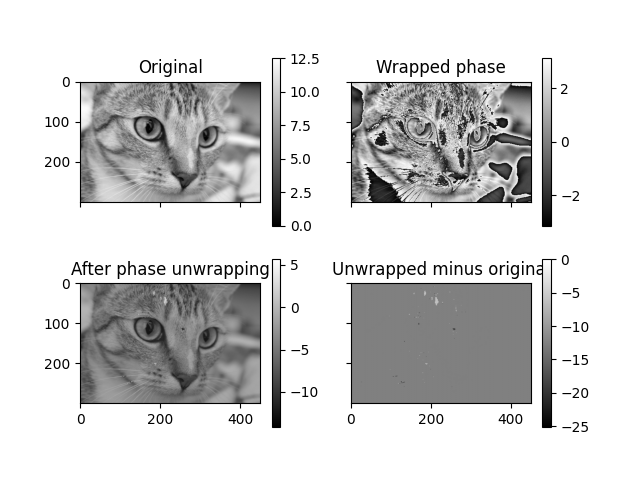

图 1：官方示例的第一组输出。左上为映射到 0 至 4π 的原相位，右上为缠绕相位，左下为解缠绕结果，右下为结果与原图之差。图片来自 scikit-image 0.26.x 文档；底层 Chelsea 图像由摄影师 Stefan van der Walt 以 CC0 提供。

unwrap_phase(image_wrapped) 依据相邻像素之间的信息恢复相位连续性。四个面板共享横纵坐标，便于对照同一位置；第一幅和缠绕图分别固定了颜色范围，解缠绕结果及差值图则由 Matplotlib 自动确定范围。因此，看起来相似的灰度并不自动意味着数值完全相等，判断时需要读色条和差值。

相位观测不能区分相差整数个 2π 的值，解缠绕结果可能整体加上或减去若干个完整周期。差值图正是用来检查这一点：即使恢复了空间变化形状，绝对相位基准仍可能没有确定。不能把“形状恢复”直接表述成所有像素都恢复到了唯一的绝对真值。

页面还显示 Matplotlib 的对象表示 Text(0.5, 1.0, 'Unwrapped minus original')。它只是设置最后一个标题时返回的对象，不是算法输出的评价指标。

遮罩把一个相位场分成两个区域

unwrap_phase 可以接收 NumPy 的掩码数组，还可以选择把图像某个维度的两端视为相连。第二个实验使用一个 100 × 100 的相位坡度：沿第 0 维从 0 线性增长到 8π，同一行内各列取值相同。把第 50 行整行设为遮罩后，上下两个区域就被横向隔开了。

下面的第一遍解缠绕使用 wrap_around=(False, False)，两个维度都不跨边界连接；第二遍使用 wrap_around=(True, False)，只允许第 0 维，也就是上下边界之间的连接。

# Create a simple ramp
image = np.ones((100, 100)) * np.linspace(0, 8 * np.pi, 100).reshape((-1, 1))
# Mask the image to split it in two horizontally
mask = np.zeros_like(image, dtype=bool)
mask[image.shape[0] // 2, :] = True

image_wrapped = np.ma.array(np.angle(np.exp(1j * image)), mask=mask)
# Unwrap image without wrap around
image_unwrapped_no_wrap_around = unwrap_phase(image_wrapped, wrap_around=(False, False))
# Unwrap with wrap around enabled for the 0th dimension
image_unwrapped_wrap_around = unwrap_phase(image_wrapped, wrap_around=(True, False))

fig, ax = plt.subplots(2, 2)
ax1, ax2, ax3, ax4 = ax.ravel()

fig.colorbar(ax1.imshow(np.ma.array(image, mask=mask), cmap='rainbow'), ax=ax1)
ax1.set_title('Original')

fig.colorbar(ax2.imshow(image_wrapped, cmap='rainbow', vmin=-np.pi, vmax=np.pi), ax=ax2)
ax2.set_title('Wrapped phase')

fig.colorbar(ax3.imshow(image_unwrapped_no_wrap_around, cmap='rainbow'), ax=ax3)
ax3.set_title('Unwrapped without wrap_around')

fig.colorbar(ax4.imshow(image_unwrapped_wrap_around, cmap='rainbow'), ax=ax4)
ax4.set_title('Unwrapped with wrap_around')

plt.tight_layout()
plt.show()

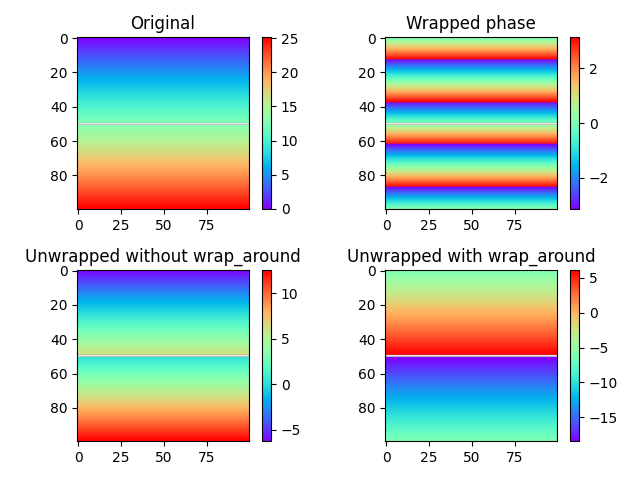

图 2：官方示例的遮罩与周期边界对比。白色横线是被屏蔽的行；左下不连接上下边界，右下允许第 0 维周期连接。来源：scikit-image 0.26.x Phase Unwrapping。

白色横线使中间一行不参与计算。关闭周期连接时，遮罩上方和下方无法沿有效像素路径互通，相当于分别解缠绕两幅独立图像。每个区域可以有自己任意整数倍 2π 的常数偏移，因此两边的相位基准可能不一致。

开启第 0 维的周期连接后，路径可以从最底部跨到最顶部，也可以反向跨越。这样一来，原本被遮罩隔开的两部分有了另一条连接路径，算法便能利用这条路径确定区域间的相对偏移。原文解释左下图时写了 “Without unwrapping”，但该图实际上已经解缠绕，只是没有启用 wrap around；本文按对应代码与图标题校正这一处表述。

周期边界是一项关于数据的假设，不是普遍提高结果质量的开关。这个合成坡度专门用来展示边界连通性。如果真实图像的首尾并不相邻，把它们强行连起来会向算法引入不存在的邻接关系。遮罩区域也不会凭空得到可信的观测值；最终结果能恢复什么，取决于有效区域的连通性、相位差和所采用的边界条件。

复现时应核对什么

本例只需要 NumPy、Matplotlib 和 scikit-image，不需要外部相位文件或测量设备。输入图像由 data.chelsea() 提供；坡度、缠绕和遮罩都在代码中构造。作为待验证的复现基线，可以使用 CPython 3.11、scikit-image 0.26.0、NumPy 2.2.6、SciPy 1.15.3 和 Matplotlib 3.10.3。这个组合依据已发布包的约束核对提出，并未在本文环境安装或运行，也不是完整锁定文件。

代码审查确认两段示例的数据维度、遮罩布尔类型和 wrap_around 元组长度相互对应。unwrap_phase 的输入应是有效的相位值，不能假设任意不连续、含噪或存在错误遮罩的数据都能唯一恢复。原页显示脚本总用时约 0.906 秒，这是上游文档构建时的记录，不是跨硬件性能保证。

算法参考、来源与许可

本例引用：Miguel Arevallilo Herraez、David R. Burton、Michael J. Lalor、Munther A. Gdeisat，Fast two-dimensional phase-unwrapping algorithm based on sorting by reliability following a noncontinuous path，Applied Optics，41 卷，35 期，第 7437 页起，2002 年。该文是官方示例列出的二维算法参考。

原文：Phase Unwrapping。维护方为 scikit-image team，原页没有可确认的个人署名。官方提供对应示例源码，以及 unwrap_phase 实现入口。Chelsea 图片在 data fetchers 中注明由摄影师 Stefan van der Walt 以 CC0 提供。
